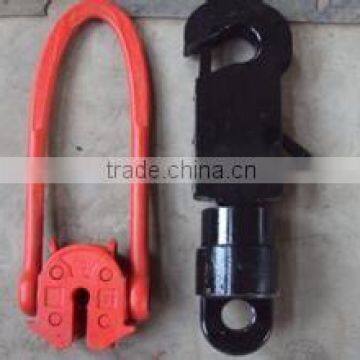

API 8A/8C Sucker Rod Elevator
Introduce of 8A/8C Sucker Rod Elevators :
Sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size. Additional saving is realized because work plates can be replaced instead of replacing the entire elevator. The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching. They are designed and manufactured according to API Spec 8C-specification for drilling and production Hoisting Equipment.
Technical Specifications of Sucker Rod Elevators :
Rod size(Inch) |
Diameter of Bore(mm) |
Max load(Ton) |
1/2 5/8 |
19 |
20 |
5/8 3/4 |
23 |
|
3/4-7/8 |
26 |
|
1 |
30 |
|
1 1/8 |
32 |
|
1 1/4 |
35 |
|
5/8-3/4 |
23 |
25 |
3/4-7/8 |
26 |
|
7/8-1 |
30 |
We can also supply other type Elevator,such as Type CD Elevator,Type CDZ Elevator,Type DD Elevator,Type DDZ Elevator,Type TA Elevator, Type SLX Elevtor.For more information, do fell
