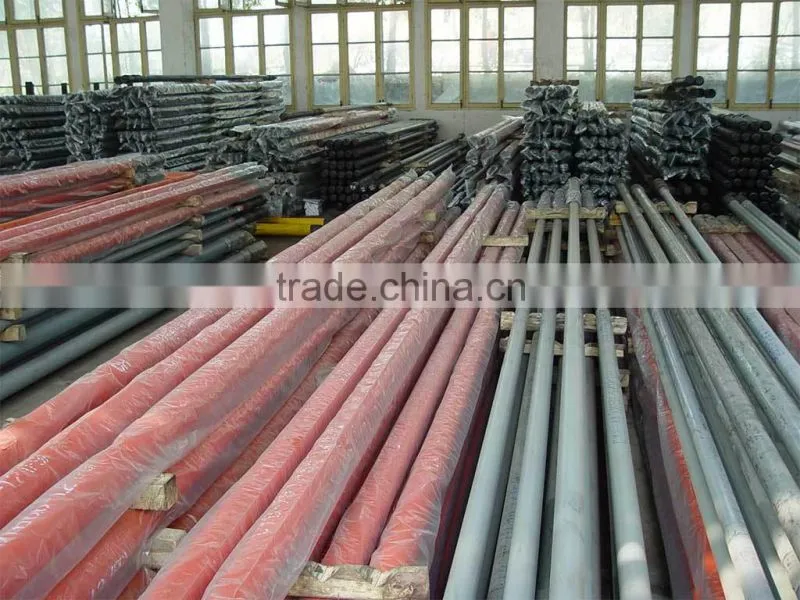

Help CenterHot Sales! API 11AX Sucker Rod Pump / Tubing Pump
Related Products
-
Belt Pumping Unit for Oil Well ExtractionUS$ 200,000 - 2,000,000MOQ: 1 Set -
API C Series Beam Pumping Unit for Oil Extraction HOT SALE!NegotiableMOQ: 1 Set
-
API Double Horse Head Beam Pumping Unit for Oil ExtractionUS$ 8,000 - 100,000MOQ: 1 Set
-
API C Series Beam Pumping Unit for Oil ExtractionUS$ 6,000 - 40,000MOQ: 1 Set
-
Sucker Rod Oilfield HOT SALES!US$ 910 - 2,500MOQ: 1 Ton
Specifications
1. It is for petroleum extraction in oilfields2. With long stroke, high speed and deep production
3. API SPEC 11AX standard
Features:
Principle: oil well pumps are special form of reciprocal pump , Power delivered to the sucker rod from the ground to underground, Make plunger piston of oil well pump do up and down reciprocating motion , Oil along the tubing will give rise tosurface .
According to API standards, our company could manufacture tubing pump and rod pump Moreover, we can also supplylong plunger oil well pump, long plunger Sand Control oil well pump , hook wall oil well , Tandem oil well pump Anti-air lock oil well pump and etc .
Mainly Parameters :
Type |
Code |
Radial pump length(mm) |
Plunger length (m) |
pump barrel length m |
Joint tubing OD mm |
Joint sucker rod diameter (mm) |
Lengthening joint length(m) |
Well condition |
Tubing Pump |
20/25-106TH |
28.5 |
0.6~2.1 |
3.3~9.5 |
60.3~73.0 |
15.9~19.1 |
0.6~0.9 |
Contain salt,sulfur,carbon dioxide,bacterium and other corrosive medium ,litter Overflow sand oil well . |
20/25-125TH |
31.8 |
0.6~2.1 |
3.3~9.5 |
60.3~73.0 |
15.9~19.1 |
0.6~0.9 |
||
20/25-150TH |
38.1 |
0.6~2.1 |
3.3~9.5 |
60.3~73.0 |
19.1 |
0.6~0.9 |
||
20/25-175TH |
44.5 |
0.6~2.1 |
3.3~9.5 |
60.3~73.0 |
19.1 |
0.6~0.9 |
||
25-200TH |
50.8 |
0.6~2.1 |
3.3~9.5 |
73.0 |
19.1 |
0.6~0.9 |
||
25-225TH |
57.2 |
0.6~2.1 |
3.3~9.5 |
73.0 |
19.1 |
0.6~0.9 |
||
30-275TH |
69.9 |
0.6~2.1 |
3.3~9.5 |
88.9 |
22.2 |
0.6~0.9 |
||
40-375TH |
95.3 |
0.6~2.1 |
3.3~9.5 |
114.3 |
25.4 |
0.6~0.9 |
||
Rod pump |
20-125RH/W |
31.8 |
0.6~2.1 |
3.3~9.5 |
60.3 |
19.1 |
0.6~0.9 |
|
25-150RH/W |
38.1 |
0.6~2.1 |
3.3~9.5 |
73.0 |
19.1 |
0.6~0.9 |
||
25-175RH/W |
44.5 |
0.6~2.1 |
3.3~9.5 |
73.0 |
19.1 |
0.6~0.9 |
||
25-200RH/W |
50.8 |
0.6~2.1 |
3.3~9.5 |
73.0 |
19.1 |
0.6~0.9 |
||
30-225RH/W |
57.2 |
0.6~2.1 |
3.3~9.5 |
88.9 |
19.1 |
0.6~0.9 |
