16V1D Video Fiber Optic Transceiver

Name: 16V1D Video Fiber Optic Transceiver
Brand: BTON/OEM
Price: USD $1 - 135 / Pair

FOB Price

USD $1 - $135 / Pair

1 Pair(Min.Order)

Supply Ability 30000 Pair / Pairs per Month
Port shenzhen
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

BTON/OEM

Model Number:

BT-16V1DF-T/R

Product Description

16V1D Video Fiber Optic Transceiver

Advantages

1. Best Solution with good chipset;

2. BrandNew module;
3. High-quality metal casing;
4. Good quality of power supply ( working more than 3-4 years);

5. Professional Package;

6. 3 years warranty.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

16 channel Video Optical Converter

Product Description

Our fiber optical video transmitter and receiver can simultaneously transmit 1-72 channels of 8-bit digitally encoded broadcast quality video / reverse or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Dry contact over one single mode or multimode optical fiber. These multiplexers are typically used in applications where the cameras have PTZ capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment.

Ø Features

8-bit digitally encoded and non-compression broadcast quality video transmission;
Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols;
Support any high-resolution video signal;
Automatic compatible PAL, NTSC and SECAM video system;
Power supply and other parameter state indication, which can monitor the operation condition of system;
Support no-damage regenerative trunk of video;
Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required;
Special ASIC design;
Hot-swap function;
Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis;

Ø Specification

Video Port	16
Video Interface	BNC
Video bandwidth	8 MHz
Automatic compatible video system	PAL,NTSC,SECAM
Video in/output impedance	75 Ω(unbalance)
Video in/output Voltage	1.0Vp-p,max 1.5Vp-p
Video signal-to-noise ratio	≥65dB
Differential gain	<1%
Differential phase	<0.7°
Fiber-optic Specification	Connector: FC/ST/SC Transmitter: Tx Power:-15 ~ -8dBm Sensitivity :≤-35dBm Receiver: Tx Power:-15 ~ -8dBm Sensitivity :≤-35dBm Transmission Distance: 2km(mm), 20/40/60/80/100km(sm) Operating Wavelength: Tx1310/Rx1550(Transmitter),Tx1550/Rx1310nm(Receiver)

Ø Application

Intelligent Transportation System
Connection of Sub-network for Surveillance Center
Public Security Surveillance
High Way & Toll Station Surveillance
Industrial Closed Circuit Television Surveillance

Ø System design

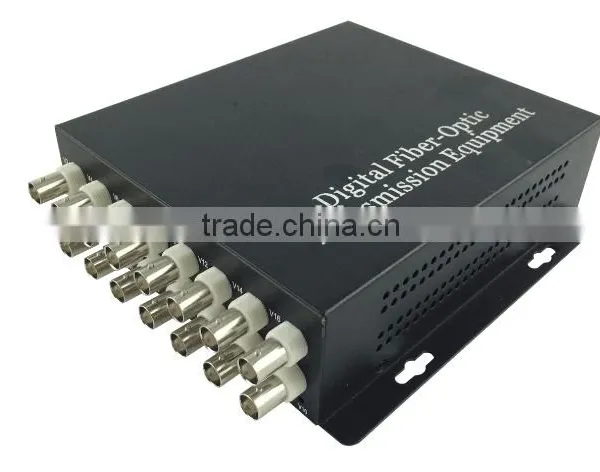

Detailed Images

Ø Device Dimension

Ø Package (1 transmitter + 1 Receiver + 2pcs 5V1A power supply)

Company Information

Shenzhen B&TON Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter,Fiber Switch, digital video optical transmission systems and Optical Transceiver Modules, Patch cords,.

Certifications

OEM and ODM

OEM/ODM order is available.

Warranty:

All the Fiber media converter have been through functional test and aging test. We provide 3 years warranty for all the media converter from the date of shipment.

Shipment: DHL, Fedex, UPS, TNT, EMS etc,.

Payment: TT, Western Union, Paypal, LC, Escrew

Ø Order Information

Part Number	Description (Single Fiber,Single mode, FC/SC/ST, 20KM) 1-72 Channels Video(1ch, 2ch, 4ch, 8ch, 16ch, 32ch, 64ch, 72ch) Data(RS485/422/232),audio, Ethernet,telephone, contact closure.	Unit
BT-1VF-T/RS	1ch forward video	pair
BT-1V1DF-T/RS	1ch forward video,1ch forward/reverse RS485 data	pair
BT-2VF-T/RS	2ch forward video	pair
BT-2V1DF-T/RS	2 forward video, 1 forward/reverse RS485 data	pair
BT-4VF-T/RS	4ch forward video, Mini type	pair
BT-4V1DF-T/RS	4ch forward video, 1ch forward/reverse RS485 data, Mini type	pair
BT-4VF-T/R	4ch forward video	pair
BT-4V1DF-T/R	4ch forward video, 1ch forward/reverse RS485 data	pair
BT-8VF-T/R	8ch forward video	pair
BT-8V1DF-T/R	8ch forward video, 1ch forward/reverse RS485 data	pair
BT-16VF-T/R	16ch forward video	pair
BT-16V1DF-T/R	16ch forward video, 1ch forward/reverse RS485 data	pair
BT-16VF-T/RS	16ch forward video, Mini type	pair
BT-16V1DF-T/RS	16ch forward video, 1ch forward/reverse RS485 data, Mini type	pair
