16 channel video transmitter
1. Best Solution with good chipset;
2. BrandNew module;
3. High-quality metal casing;
4. Good quality of power supply ( working more than 3-4 years);
5. Professional Package;
6. 3 years warranty.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
1, Mini Type:

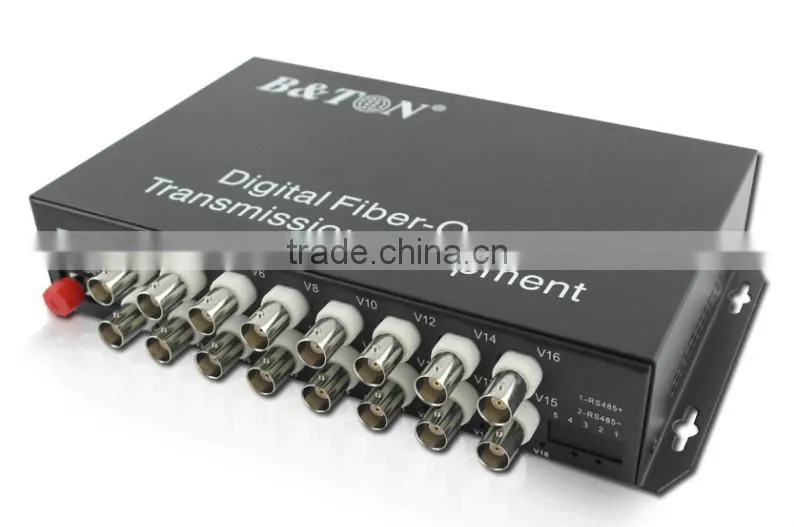

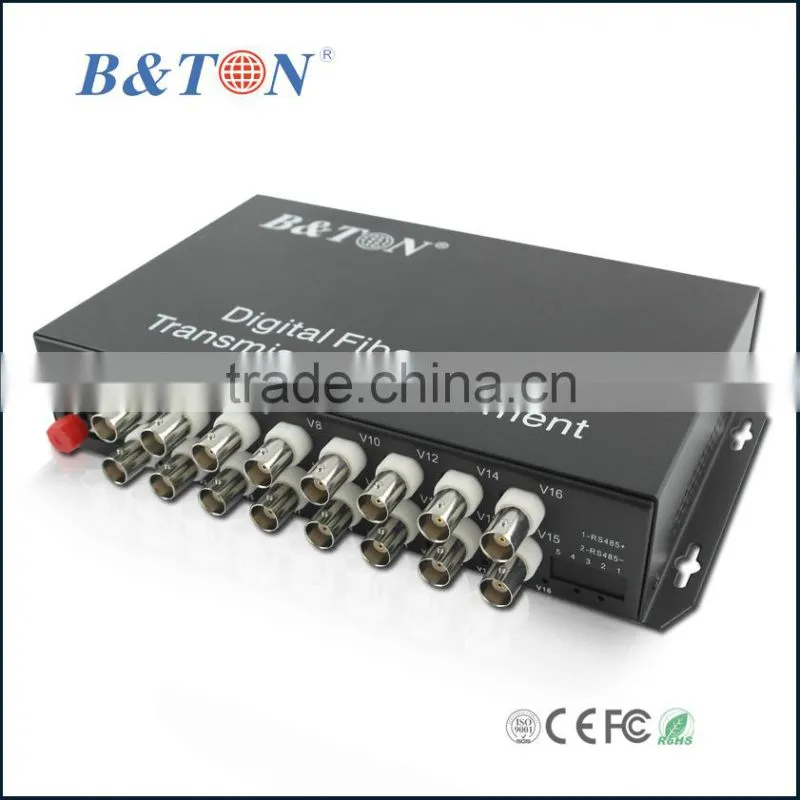

BT-16VF-T/RS: Mini Type
16Channel BNC Video Only, Single Fiber, Single mode, FC, 20km Video to Fiber Transmitter and Receiver with DC5V1A Euro/US/UK Power Adapter

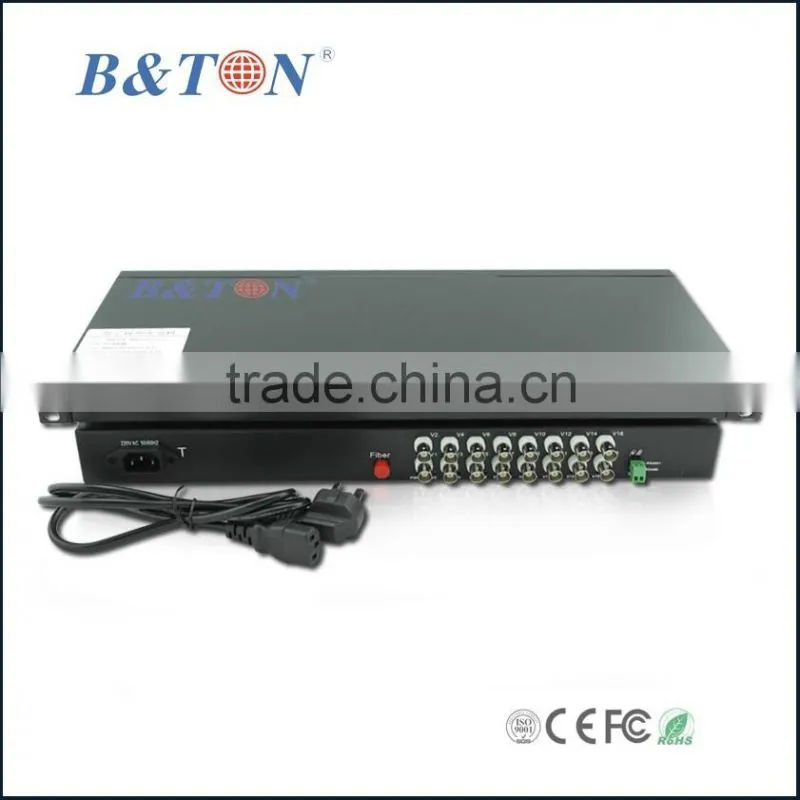

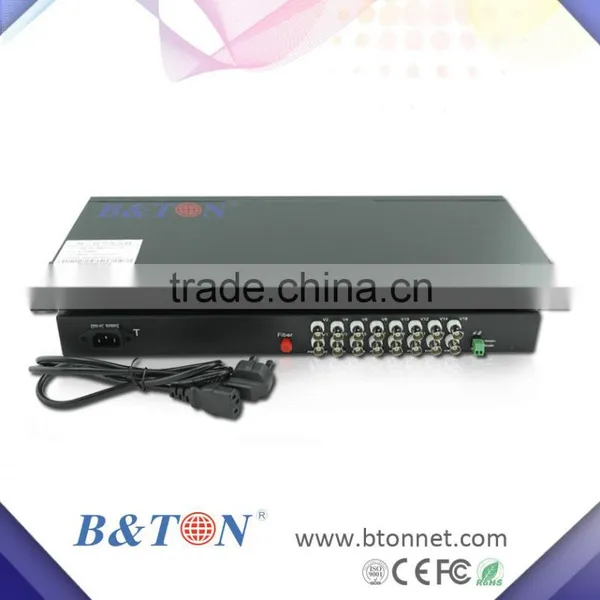

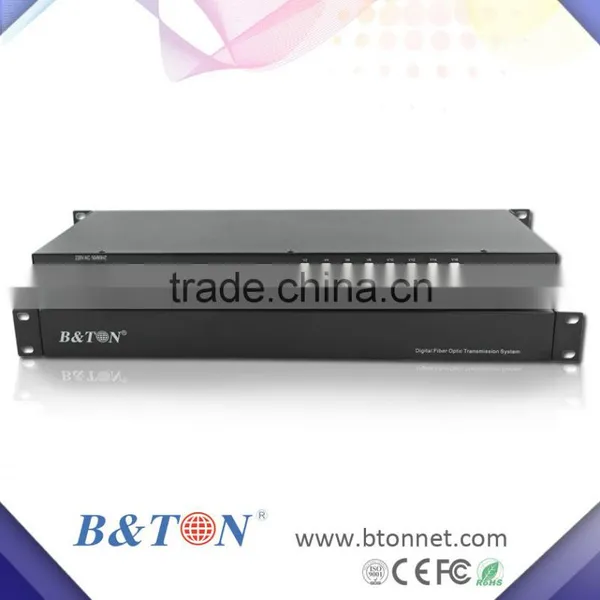

2, 1U Rack Type
BT-16VF-T/R:
16Channel BNC Video Only, Single Fiber, Single mode, FC, 20km Video to Fiber Transmitter and Receiver with DC5V1A Euro/US/UK Power Adapter
3, Optional Functions can be made as requried:
Data(RS485, RS422,RS232), Audio, Telephone, Ethernet, Contact Closure/Alarm.
Direction can be forward, reverse, bidirectional.
Ø Features
- 8-bit digitally encoded and non-compression broadcast quality video transmission;
- Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols;
- Support any high-resolution video signal;
- Automatic compatible PAL, NTSC and SECAM video system;
- Power supply and other parameter state indication, which can monitor the operation condition of system;
- Support no-damage regenerative trunk of video;
- Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required;
- Special ASIC design;
- Hot-swap function;
- Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis;
Ø Specification
Video Port |
16 |
|
Video Interface |
BNC |
|
Video bandwidth |
8 MHz |
|
Automatic compatible video system |
PAL,NTSC,SECAM |
|
Video in/output impedance |
75 Ω(unbalance) |
|
Video in/output Voltage |
1.0Vp-p,max 1.5Vp-p |
|
Video signal-to-noise ratio |
≥65dB |
|
Differential gain |
<1% |
|
Differential phase |
<0.7° |
|
Fiber-optic Specification |
Connector: FC/ST/SC Transmitter: Tx Power:-15 ~ -8dBm Sensitivity :≤-35dBm Receiver: Tx Power:-15 ~ -8dBm Sensitivity :≤-35dBm Transmission Distance: 2km(mm), 20/40/60/80/100km(sm) Operating Wavelength: Tx1310/Rx1550(Transmitter),Tx1550/Rx1310nm(Receiver) |
|

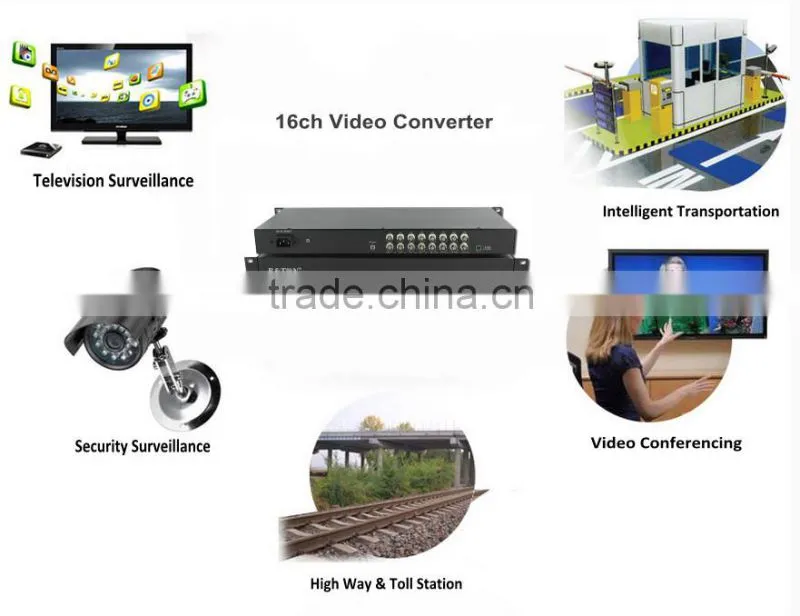

Ø Application
- Intelligent Transportation System
- Connection of Sub-network for Surveillance Center
- Public Security Surveillance
- High Way & Toll Station Surveillance
- Industrial Closed Circuit Television Surveillance
Ø System design

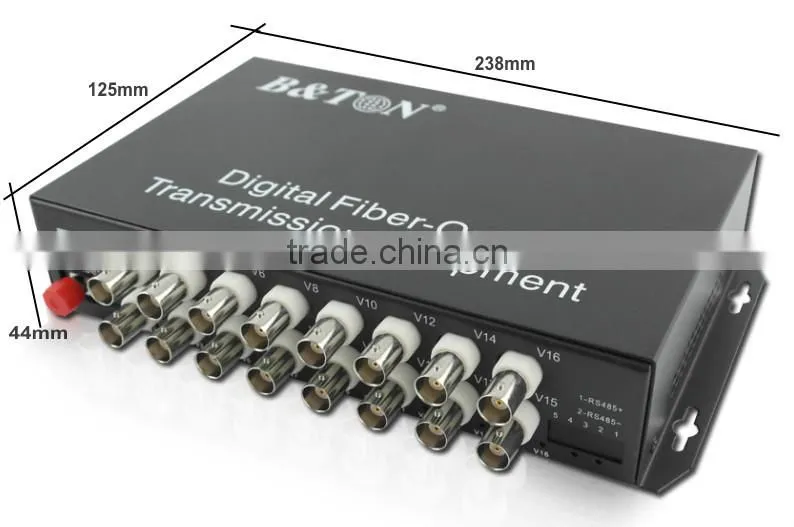

Ø Device Dimension

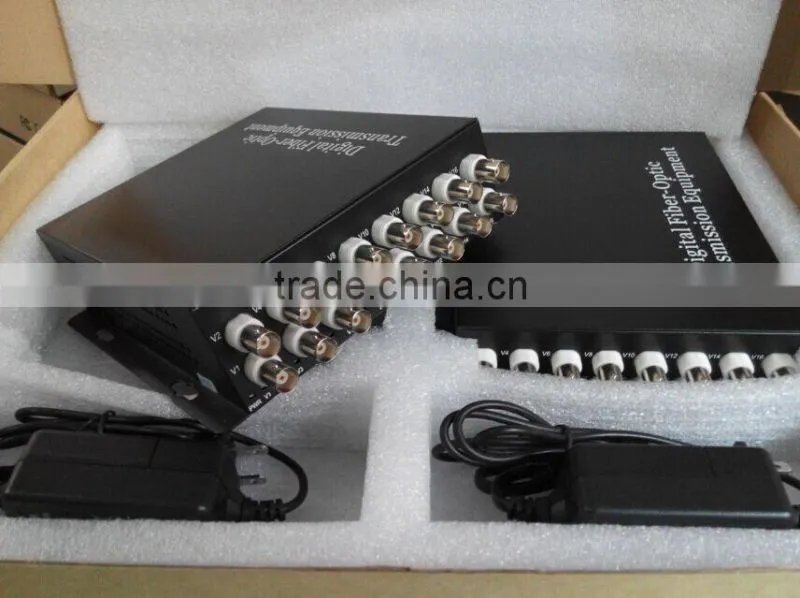

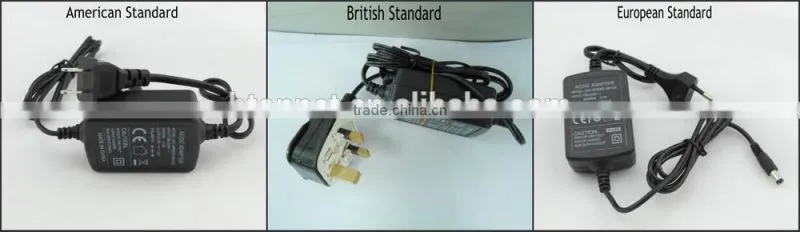

Ø Package List (1 transmitter + 1 Receiver + 2pcs 5V1A power supply + 1 User Manual)
Shenzhen B&TON Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter,Fiber Switch, digital video optical transmission systems and Optical Transceiver Modules, Patch cords,.
OEM and ODM
OEM/ODM order is available.
Warranty:
All the Fiber media converter have been through functional test and aging test. We provide 3 years warranty for all the media converter from the date of shipment.
Shipment: DHL, Fedex, UPS, TNT, EMS etc,.
Payment: TT, Western Union, Paypal, LC, Escrew
