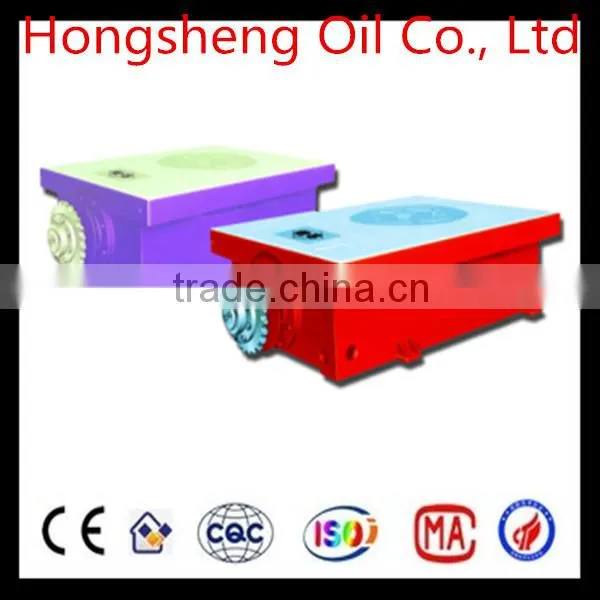

Hot Sale Drilling Rig Components API Rotary Table ZP205 for Oil Drilling Rigs
US$ 10,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hongsheng
Model Number:
ZP205
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rotary Table Hot Sales ApiUS$ 100 - 1,500MOQ: 1 Set -
Hook Block for Drilling Api PricesUS$ 20 - 200MOQ: 1 Piece
-
Mud Pump for Drilling Rig Sales for ApiUS$ 100,000 - 150,000MOQ: 1 Set
-
Drawworks Winch Api Jc50US$ 50,000 - 80,000MOQ: 1 Set
-
Hot Sale Standard Oil Usage SCR System for Oil Drilling RigUS$ 200,000 - 400,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Hongsheng
Model Number
ZP205
Type
Rotary Table
Machine Type
Drilling Equipment
Certification
API
Material
Other, Your choice
Processing Type
Other, Your choice
Use
Other, Oil field
Specifications
1.Compliance with API 7K specification and industry standard SY/T5531 requirements.2.With strong technology and low price.
Product Features
1. Compliance with API 7K specification.
2 industry standard SY/T5531 requirements.
3 wheel drive using spiral bevel gears, strong bearing capacity, smooth operation and long life.
4 wheel shell welding structure, good rigidity, high accuracy.
5 splash lubrication of gears and bearings
6 overall master bushing is steel castings.
7 pin drive type can be placed in API standard Kelly or hexagonal Kelly roller bushing, long, short kava can be used.
| Model | ZP375 | ZP275 | ZP205 | ZP175 | |
| The maximum hook load load | kN | 5850 | 4500 | 3150 | 2250 |
| US ton | 650 | 500 | 350 | 250 | |
| Inside diameter | mm | 952.5 | 698.5 | 520.7 | 444.5 |
| in | 371/2 | 271/2 | 201/2 | 171/2 | |
| Gear Ratio | 3.56 | 3.67 | 3.22 | 3.58 | |
| The distance from the axis to the center of the turntable to the sprocket | mm | 1353 | 1353 | 1353 | 1118 |
| in | 531/4 | 531/4 | 531/4 | 44 | |
| mm | 2468*1810*718 | 2392*1670*685 | 2392*1475*668 | 1935*1280*585 | |
| Size | in | 97*71*28 | 94*66*27 | 90*58*26 | 76*50*23 |
| Weight | kg | 8026 | 6203 | 5530 | 3888 |
| lb | 17694 | 13680 | 12190 | 8572 | |
