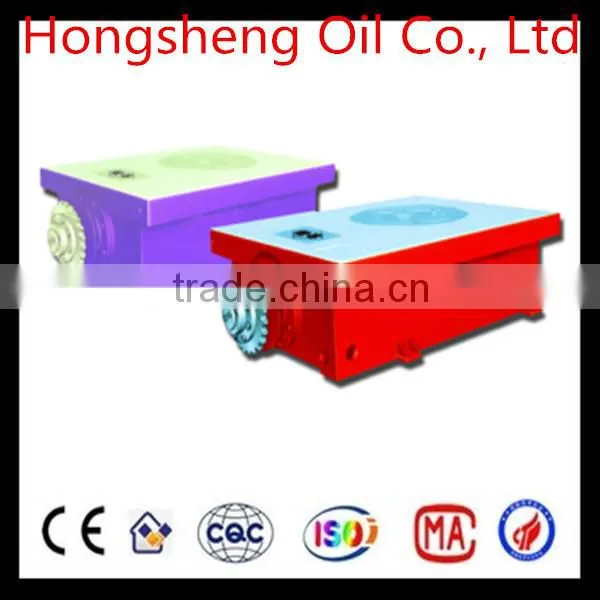

2014 New API Drilling Component Machine Rotary Table
US$ 14,755 - 32,786
MOQ: 20 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
hongsheng
Type:
Rotary Table
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2014 API Standard Drilling Machine SwivelUS$ 8,197 - 29,508MOQ: 1 Piece -
New Condation and Api Standard Hook for Oilfield Drilling RigUS$ 4,919 - 34,426MOQ: 10 Sets
-
Traveling Block for Oilfield Drilling MachineUS$ 4,918 - 34,426MOQ: 10 Pieces
-
JC40 for Hot Sale! API Standrad Drawworks for OilfieldUS$ 650,000 - 800,000MOQ: 1 Set
-
JC40D for Hot Sale! API Standrad Drawworks for OilfieldUS$ 650,000 - 800,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
hongsheng
Type
Rotary Table
Machine Type
Drilling Equipment
Certification
API
Use
Well Drilling
Specifications
Compliance with API 7K specification.industry standard SY/T5531 requirements.
wheel drive using
Product Features 1. Compliance with API 7K specification.
2 industry standard SY/T5531 requirements. 3 wheel drive using spiral bevel gears, strong bearing capacity, smooth operation and long life. 4 wheel shell welding structure, good rigidity, high accuracy. 5 splash lubrication of gears and bearings 6 overall master bushing is steel castings. 7 pin drive type can be placed in API standard Kelly or hexagonal Kelly roller bushing, long, short kava can be used.
| Model | ZP375 | ZP275 | ZP205 | ZP175 | |
| The maximum hook load load | kN | 5850 | 4500 | 3150 | 2250 |
| US ton | 650 | 500 | 350 | 250 | |
| Inside diameter | mm | 952.5 | 698.5 | 520.7 | 444.5 |
| in | 371/2 | 271/2 | 201/2 | 171/2 | |
| Gear Ratio | 3.56 | 3.67 | 3.22 | 3.58 | |
| The distance from the axis to the center of the turntable to the sprocket | mm | 1353 | 1353 | 1353 | 1118 |
| in | 531/4 | 531/4 | 531/4 | 44 | |
| mm | 2468*1810*718 | 2392*1670*685 | 2392*1475*668 | 1935*1280*585 | |
| Size | in | 97*71*28 | 94*66*27 | 90*58*26 | 76*50*23 |
| Weight | kg | 8026 | 6203 | 5530 | 3888 |
| lb | 17694 | 13680 | 12190 | 8572 | |
