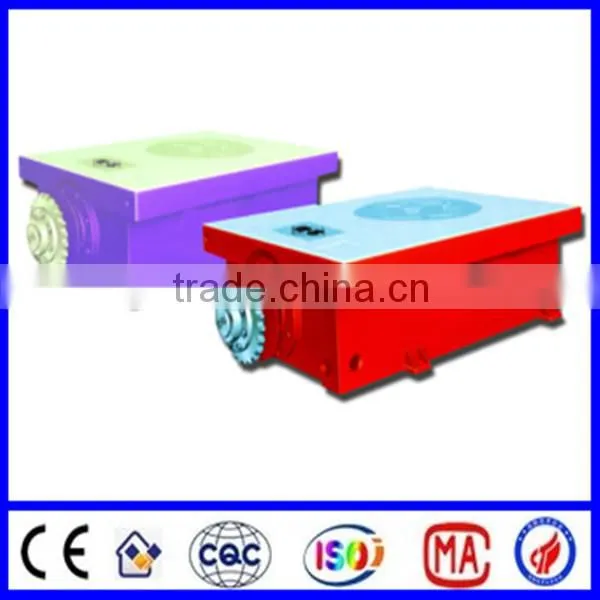

2014 API 7K Rotary Table for Drilling Rig
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
hongsheng
Type:
Rotary Table
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao/tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API Rotary Table Drilling RigNegotiableMOQ: 1 Set -
API Standard Oil Usage Crown BlockUS$ 100 - 10,000MOQ: 1 Set
-
Crown Block Oilfield Equipment Drilling Rig Spare Parts API Spec 4FUS$ 1,000 - 10,000MOQ: 1 Set
-
ZQ162-50 Hydraulic Power TongsNegotiableMOQ: 1 Set
-
Oilfield Workover Hydraulic Power TongNegotiableMOQ: 1 Set
Place of Origin
China
Brand Name
hongsheng
Type
Rotary Table
Machine Type
Drilling Equipment
Certification
API
Use
Well Drilling
Specifications
1,Certificates:API Spec 7k,ISO9001-20082,ZP175,ZP205,ZP275,ZP375
1.The casing is casting steel and steel plate welding structure, the basement is steel casting, it welded with steel plate after coarsely machining, and finish machining after integral annealing for stress elimination
2.Transmission gear is harden tooth spiral bevel gear drive, have higher loading capacity, smooth running and long service life.
3.The input shaft is alloy forging by quench hardening and tempering, has good mechanical property, fit for big torsional moment operation. chain wheel and flange can be equipped on the shaft end, meet the requirement of all transmission mode.
4. Master bushing adopt alloy casting steel, it has high rigidity and reliable performance.
|
ZP175 |
ZP205 |
ZP275 |
ZP375 |
Dia. of Opening in (mm) |
17.5444.5 |
20.5520.7 |
27.5698.5 |
37.5952.5 |
Distance Between Rotary Center and the Teeth Center of Inner Sprocket in (mm) |
441118 |
53.251353 |
||
Max Static Hook Load Rating kN |
1350 |
3150 |
4500 |
5850 |
Max Working Torque ft.lbs(N.m) |
1013213729 |
1664622555 |
2026527459 |
2387232365 |
Max .Speed r/min |
300 |
|||
Gear Ratio |
3.58 |
3.22 |
3.67 |
3.56 |
Overall Dimension in (mm) L×W×H |
76.2×50.4×23 (1935×1280×585) |
90×58×26.5 (2292×1475×673) |
94×65.7×27 (2391×1670×685) |
97×71×28 (2468×1810×718) |
Weight lbs(kg) |
38888572 |
553012191 |
616313590 |
802617694 |
