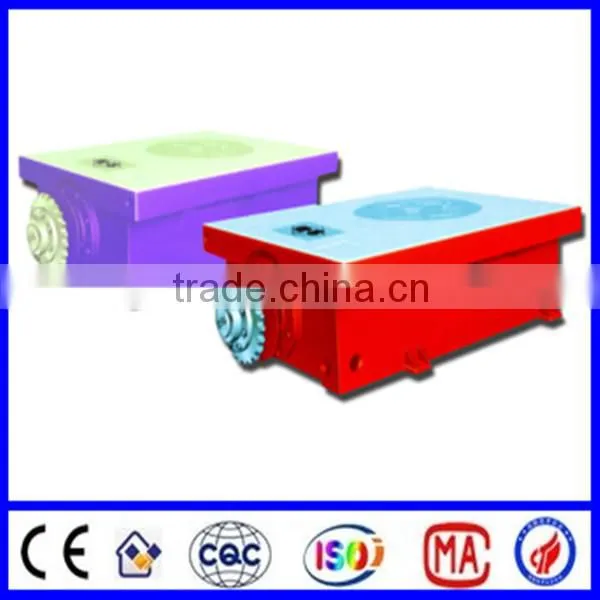

Rotary Table for Oil Drilling Rig
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
hongsheng
Type:
Rotary Table
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao/tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API 8A OIL WELL DRILL EQUIPMENT TRAVELLING BLOCKSNegotiableMOQ: 1 Set -
Oilfield Rig Oil/Gas API 8C SwivelNegotiableMOQ: 1 Set
-
API Standard Hook And Travelling Block For Drill RigNegotiableMOQ: 1 Set
-
API Combined Engine Transmission Gear for Oil Drilling RigsNegotiableMOQ: 1 Set
-
Hydraulic Power Tong for Well DrillingNegotiableMOQ: 1 Set
Place of Origin
China
Brand Name
hongsheng
Type
Rotary Table
Machine Type
Drilling Tool
Certification
API
Material
Carbon Steel
Use
Well Drilling
Specifications
Rotary Table for oil drilling rig1). Standards: API spec 7K.
2). Model: ZP175,ZP205,ZP275,ZP375,ZP495
Product Features
1. Compliance with API 7K specification.
2 industry standard SY/T5531 requirements.
3 wheel drive using spiral bevel gears, strong bearing capacity, smooth operation and long life.
4 wheel shell welding structure, good rigidity, high accuracy.
5 splash lubrication of gears and bearings
6 overall master bushing is steel castings.
7 pin drive type can be placed in API standard Kelly or hexagonal Kelly roller bushing, long, short kava can be used.
| Model | ZP375 | ZP275 | ZP205 | ZP175 | |
| The maximum hook load load | kN | 5850 | 4500 | 3150 | 2250 |
| US ton | 650 | 500 | 350 | 250 | |
| Inside diameter | mm | 952.5 | 698.5 | 520.7 | 444.5 |
| in | 371/2 | 271/2 | 201/2 | 171/2 | |
| Gear Ratio | 3.56 | 3.67 | 3.22 | 3.58 | |
| The distance from the axis to the center of the turntable to the sprocket | mm | 1353 | 1353 | 1353 | 1118 |
| in | 531/4 | 531/4 | 531/4 | 44 | |
| mm | 2468*1810*718 | 2392*1670*685 | 2392*1475*668 | 1935*1280*585 | |
| Size | in | 97*71*28 | 94*66*27 | 90*58*26 | 76*50*23 |
| Weight | kg | 8026 | 6203 | 5530 | 3888 |
| lb | 17694 | 13680 | 12190 | 8572 | |
