Help CenterWith Long Leg 5mm FLAT TOP Led Diodes
Related Products
-
5mm Round Rgb Led DiodesUS$ 0.02 - 0.8MOQ: 1 Piece -
With Long Leg and Flange 3mm BULLET Led DiodeUS$ 0.023 - 0.057MOQ: 5000 Pieces
-
5mm White STRAW HAT LED ComponentUS$ 0.032 - 0.048MOQ: 5000 Pieces
-
8mm Round Rgb Led Diodes With Diffused ColorUS$ 0.02 - 0.8MOQ: 1 Piece
-
5CCHHYC-0 (4.8*4.4) Long Leg 5mm STRAW HAT Chip LEDUS$ 0.025 - 0.097MOQ: 5000 Pieces
Specifications
5mm flat top led lamp diode;Low light decay.
long life time, energy saving led lamp
High quality with good price,

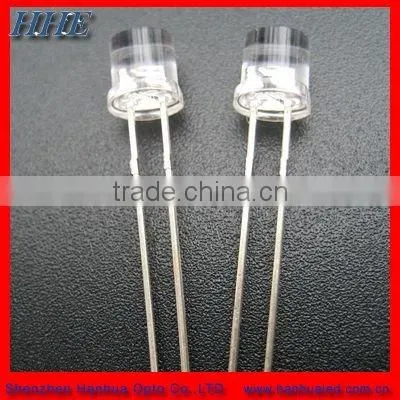

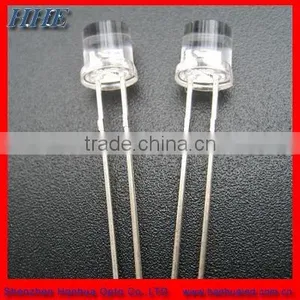

With long leg 5mm FLAT TOP led diodes
Features:
1) Highest flux
2) More energy efficient than incandescent and most halogen lamps
3) Low voltage DC operated
4) Fully dimmable
5) No UV
6) Superior ESD protection
7) Eutectic die bonding
8) Low light decay: under 5% of first 1000 hours.
9) Size: 3mm
10) View angle:100
11) Colors available: various(Blue, Red, White,, Green,Yellow, Orage,Yellow-green)
12) Angles: different angels
13) Brightness: different luminous intensity
14) Lens color: water clear or with color, color diffused, color transparent, white
Diffused
15)Availiball size:2mm,3mm,5mm,8mm,10mm,20mm
16)Peak wave length (nm):
a) Blue: 450-4
b) Red: 620-660
c) White: 0.28-0.33
d) Green:500-540
e) Yellow: 580-595
f) Orage: 600-610
g) Yellow-green: 565-575
17)Luminous intensity (MCD):
a) Red: 80-500
b)Yellow-green:50-300
c) Yellow: 100-500
d) Orage:100-500
e) Blue: 150-800
f) Green: 300-1500
g) White: 300-2000
18)Applications: Lighting, Channel Letter, Logo traffic signal light, automobile backdrops , craft flashlight, headlights,the wider direction,display of big screen and so on.
| Part number | chip | Lens color |
Vf(v)=20mA | IV(mcd)If=20mA | Angle | sample brightness |
sample price(USD) |
||||||
| Material | Emitted color |
Wave lenth |
Min | Max | Min | Max | |||||||
| |||||||||||||
| 5TCHHRC-0 | GaAllnp/GaAsP | Red | 620-665 | water clear |
1.8 | 2.5 | 80 | 500 | 80 | 150-250 | 0.0187 | |
| 5TCHHGC-O | GaAllnp/GaP | Yellow green | 565-575 | 1.8 | 2.5 | 50 | 300 | 100-150 | 0.016 | |||
| 5TCHHYC-0 | GaAsp/GaAllnP | Yellow | 580-595 | 1.8 | 2.5 | 100 | 500 | 150-250 | 0.0195 | |||
| 5TCHHOC-0 | GaAsp/GaAllnP | Orange | 600-610 | 1.8 | 2.5 | 100 | 500 | 150-250 | 0.022 | |||
| 5TCHHBC-0 | InGaAIN | Blue | 450-480 | 2.7 | 4 | 150 | 800 | 300-400 | 0.022 | |||
| 5TCHHGC-0 | InGaA | Green | 500-540 | 2.7 | 4 | 300 | 1500 | 700-800 | 0.022 | |||
| 5TCHHWC-0 | InGaAIN | White | 2.7 | 4 | 300 | 2000 | 800-1000 | 0.026 |
