Specifications
5mm round led diodes,Low light decay,
long life time,
energy saving dip led
High quality .

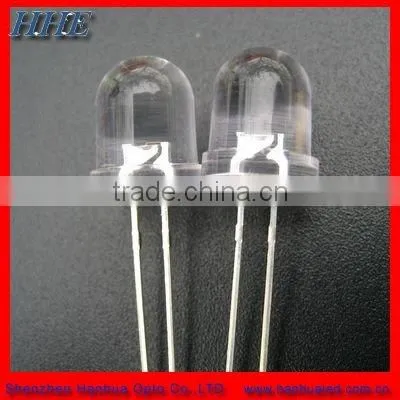

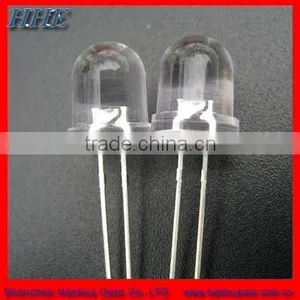

HH-500CBWC (5.0*8.6) With flange 5mm round led diodes
The features of 5mm round led diodes:
1) 5mm round led diodes.
2) More energy efficient than incandescent and most halogen lamps
3) Low voltage DC operated
4) Fully dimmable
5) No UV
6) Superior ESD protection
7) Eutectic die bonding
8) Low light decay: under 5% of first 1000 hours.
9) Size: 3mm
10) View angle:100
11) Colors available: various(Blue, Red, White,, Green,Yellow, Orage,Yellow-green)
12) Angles: different angels
13) Brightness: different luminous intensity
14) Lens color: water clear or with color, color diffused, color transparent, white
Diffused
15)Availiball size:2mm,3mm,5mm,8mm,10mm,20mm
16)Peak wave length (nm):
a) Blue: 450-475
b) Red: 620-660
c) White: 0.28-0.33
d) Green:500-540
e) Yellow: 580-595
f) Orage: 600-610
g) Yellow-green: 565-575
17)Luminous intensity (MCD):
a) Red: 500-12000
b)Yellow-green:80-2000
c) Yellow: 600-12000
d) Orange:600-12000
e) Blue: 800-10000
f) Green: 3000-15000
g) White: 3000-20000
18)Applications: Lighting, Channel Letter, Logo traffic signal light, automobile backdrops , craft flashlight, headlights,the wider direction,display of big screen and so on.
| 51CHHRC-0 | GaAllnp/GaAsP | Red | 620-665 | water clear |
1.8 | 2.5 | 500 | 12000 | 20 | |
| 51CHHGC-0 | GaAllnp/GaP | Yellow green | 565-575 | 1.8 | 2.5 | 80 | 2000 | |||
| 51CHHYC-0 | GaAsp/GaAllnP | Yellow | 580-595 | 1.8 | 2.5 | 600 | 12000 | |||
| 51CHHOC-0 | GaAsp/GaAllnP | Orange | 600-610 | 1.8 | 2.5 | 600 | 12000 | |||
| 51CHHBC-0 | InGaAIN | Blue | 450-480 | 2.7 | 4 | 800 | 10000 | |||
| 51CHHGC-0 | InGaA | Green | 500-540 | 2.7 | 4 | 3000 | 15000 | |||
| 51CHHWC-0 | InGaAIN | White | 2.7 | 4 | 4000 | 20000 |
