90w outdoor waterproof IP66 street lamp(OEM welcome) suitable for bidding soultion
specification
Model No. | H-60 | H-90 | H-120 | H-100 | H-150 | H-200 | H-250 | H-300 | |
Power | 60W | 90W | 120W | 100W | 150W | 200W | 250W | 300W | |
LED numbers | 24×2.2W | 36×2.2W | 48×2.2W | 40×2.2W | 60×2.2W | 80×2.2W | 100×2.2W | 120×2.2W | |
N.W. | 5.1kg | 6.2kg | 7.2kg | 5.7kg | 6.5kg | 8kg | 10kg | 12kg | |
G.W. | 6kg | 7.1kg | 8.5kg | 6.3kg | 7.5kg | 10kg | 11.5kg | 14kg | |
Package size L*W*H | 575*395*230mm | 575*395*230mm | 705*395*230mm | 595*395*230mm | 670*395*230mm | 745*395*230mm | 745*395*230mm | 895*395*230mm | |
Q’ty per package | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Luminous Efficiency | 3000K | 80lm/W | |||||||
4500K | 90lm/W | ||||||||
6000K | 100lm/W | ||||||||
CT | 3000K/4500K/6000K | ||||||||
CRI | ≥70 | ||||||||
Input voltage | 100V~277V | ||||||||
Frequency | 50Hz/60Hz | ||||||||
PF | Greater than 0.95 | ||||||||
Working temperature | -30℃~50℃ | ||||||||
IP rating | IP66 | ||||||||
Shell and lens | All aluminum alloy shell
, UV radiation aging resistance | ||||||||
Lifespan | 50000 hours | ||||||||
warranty | 6 years | ||||||||
products detail.
1, product overview

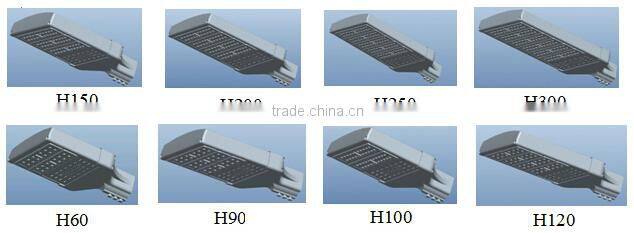

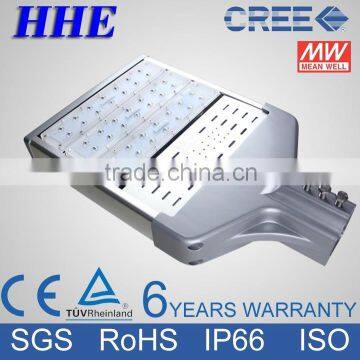

1.1 product photo
|
|

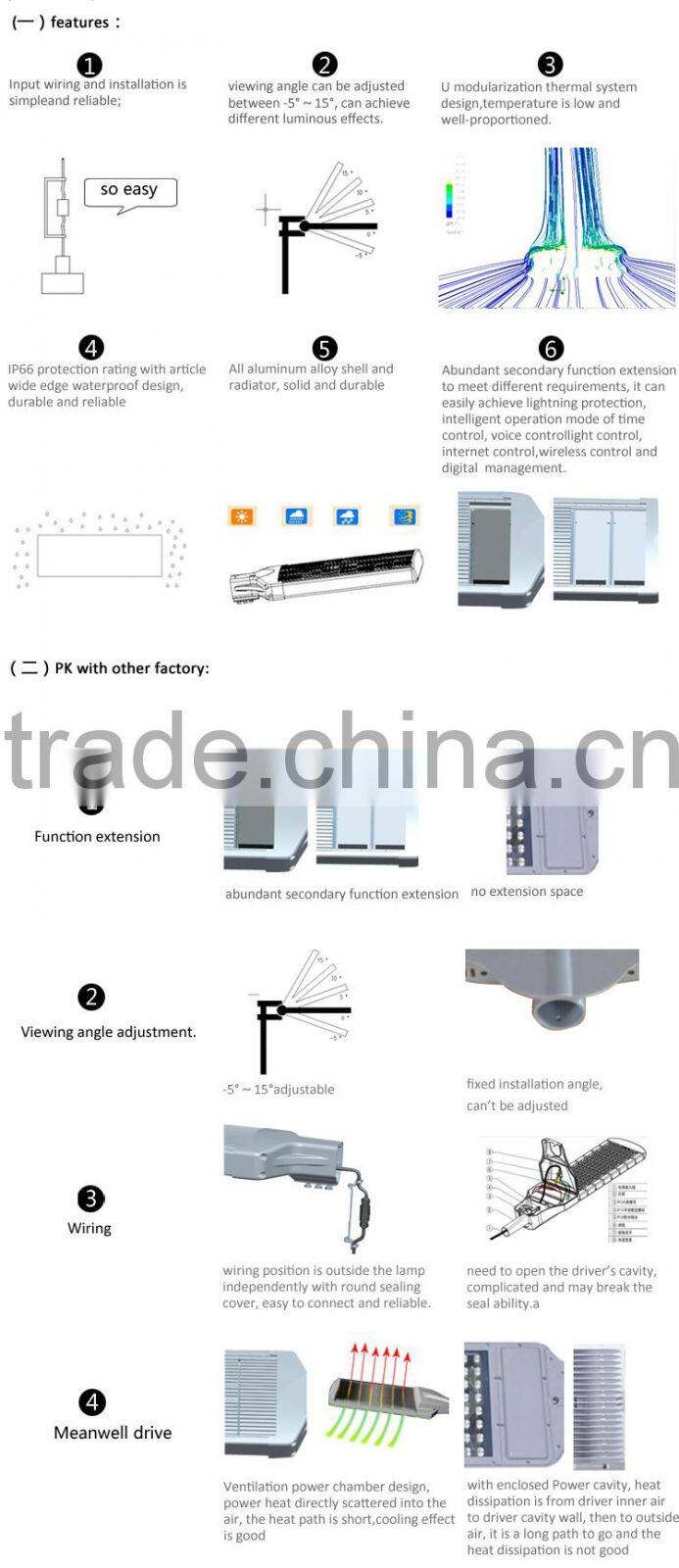

4,module Patented design of self-cleaning module,Umodularization thermal system design;input wiring connector is waterproof,use a large ring seal for the lens, sealand reliable; pay much attention to the details, fully consider the man-machine engineering (Compact design, good heat dissipation,reliable sealing waterproof)

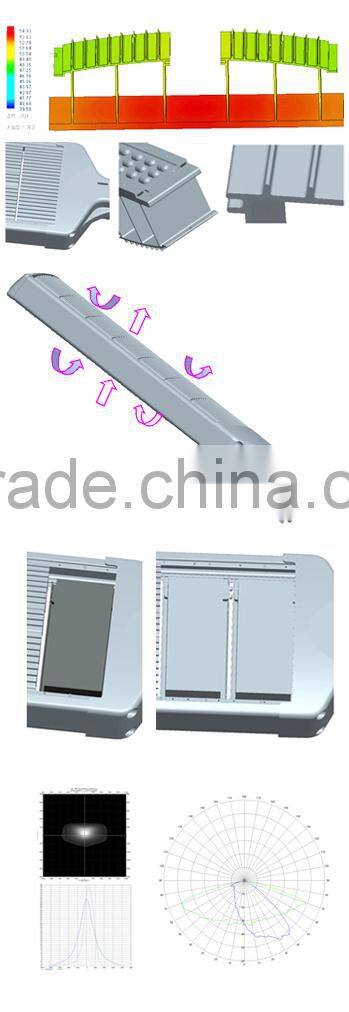

5. Heat lamps Lamps USE the module type radiator, which has a 5 mm gap between, and interconnected up and down , lighting modules be able to form a good part of the flow field, to ensure the LED heat smoothly and quickly with air diffuser, to ensure that suitable temperatures within the range in order to ensure that the lamps light decay and lifespan. ( Fluid heat dissipation pathway, the good overall heat dissipation performance
6, extension functions Can easily realize some extension functions, such as: lightning protection, intelligent operation mode of time control, voice control, light control, internet control, wireless control and digital management.
7,distribution of luminous intensity Professional design for the luminous intensity distribution, meet all kinds of lighting requirements, overall spot is rectangular.
|
|

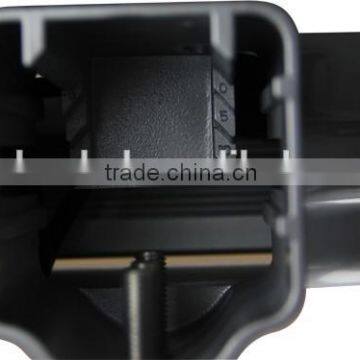

8,Wiring

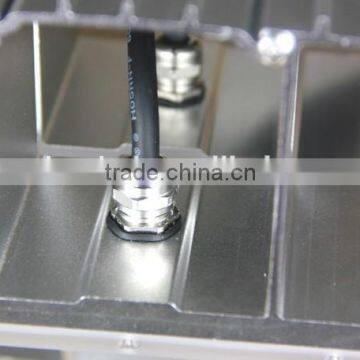

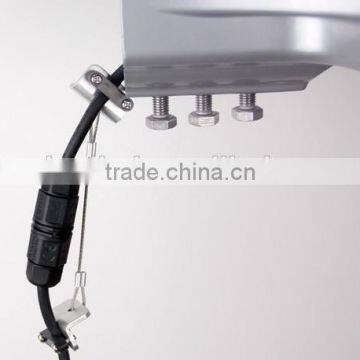

7.1 simple and reliable inner wiring distribution 7.2 Simple input wiring: reliable, sealed and pulling-out protected.
9,Installation.

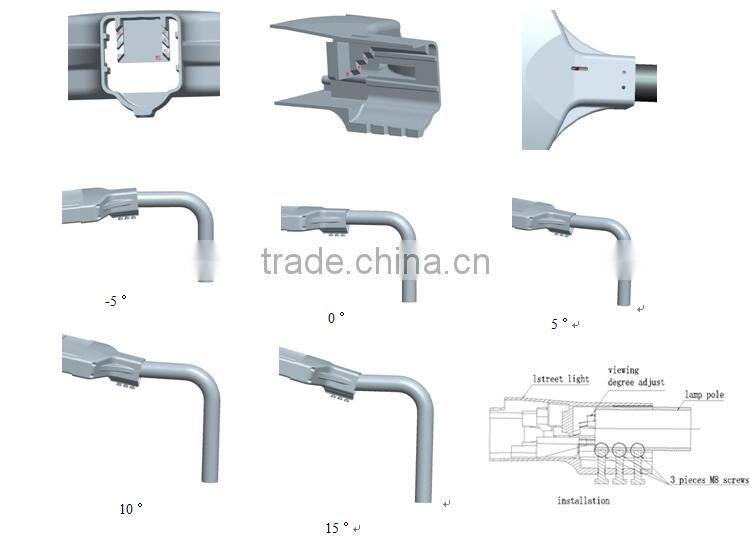

With flexible installation ability, degree can be adjusted between -5~15 without changing the lamp post. The installation position is visible, convenient for assembling and adjusting the lamp’s degree .
10, with strong structure strength, can fight 12 typhoons
| |
Trade terms and payment
Trade terms:EXW,FOB,CIF,D/P,EMC,EMBT,BT
Payment :T/T,L/C,PAYPAL,Western union,
Delivery time:7-30 working days according to order quantity
Presale serice
1.Your inquiry related to our products or prices will be replied in 8hours latest.
2. Provide professional offer.Provide detailed products test report and related specifications.
3. Provide professional led lighting technology support to meet the requirements of customers about photoelectric color.
4.OEM&ODM, any your customized lightings we can help you to design and put into product.
After Sale Service
HHE street light product provide 6 years warranty, all freight for replacing parts/lamp at our side
1). If deriver failed, we’ll send new driver
2). If LED failed, we’ll sent new LED
3). Unclear reason, we will sent full new set
About Us
Shenzhen Hanhua OptoCo., Ltd,a high-tech enterprice, which was found in 2006, located in ,Yishida Baoyicheng Science and Technology Park. Dahe community,guanlan street,Shenzhen,China,are specialized in product design, research and development, production and sales team, which has access to national high-tech enterprise honor, adding China Illuminating Engineering Society (CIES), CSA State Lighting R & D and Industry Alliance.

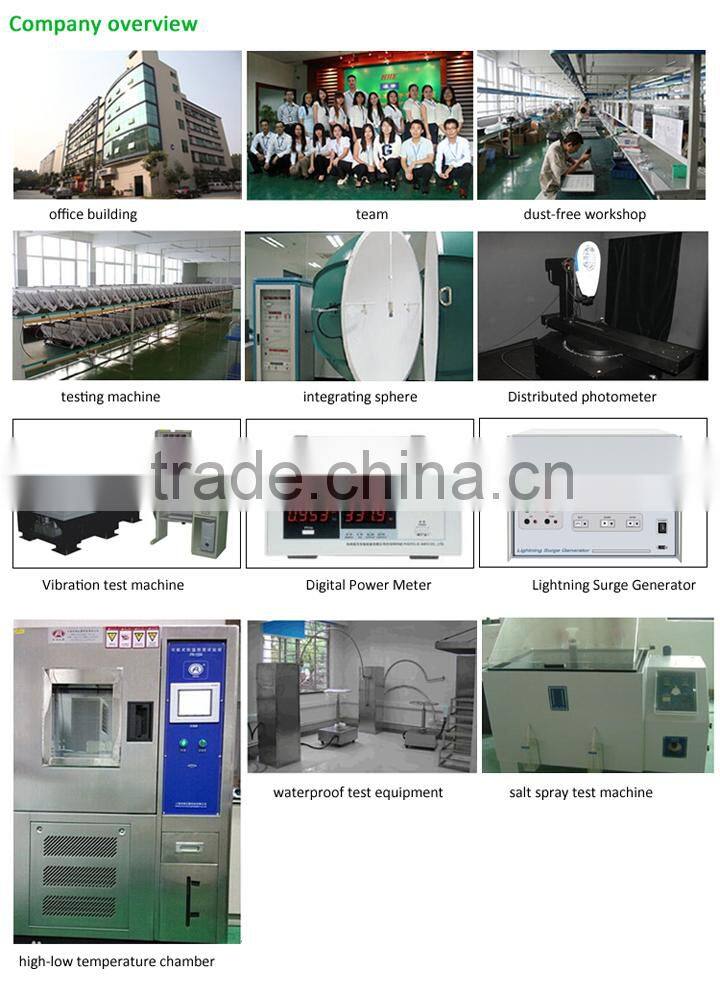

R & D and production
Hanhua has a standard product line, import and export right and professional management team,which include: LED street lamp, nail lamp, plant grow lights, LED components; Products with energy saving, environmental protection, long life, etc., are widely used in indoor and outdoor lighting, urban lighting, traffic signs and solar power generation.
Cooperation Experience
Hanhua passed the ISO9001 international quality system certification; and the series of products through TUV and SGS agencies of ROHS and CE certification. Company R & D center with a number of domestic and foreign research institutes to develop projects, to provide customers with energy efficient, green products and technical services. At present, our products have been sold to the world more than 80 countries and regions. Our products are involved in a number of domestic and foreign key construction projects, praised by customers.
product specification
Why choose Hanhua street light:
Company advantage:
1. HHE ,9 years focused on Led
2. One-stop lighting solutions (lighting designing, lighting choosing, solar and wind power solution etc.)
3. OEM&ODM are welcome
4. Independent innovation,design,open mold, striking HanHua characteristic
5. R&D team: 20 engineers with 10years led street lamp design work experience.
Products advantage
1. U modularization design concept: can be 50-330W covered in full power range
2. All products and raw maerials are compliant with Germany TUV.

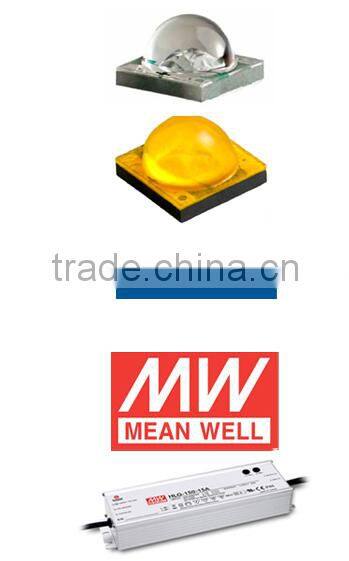

3. CREE and Mean well as our partner.
4. High product performance and competitive price.
5. Provide 6 years long warranty
