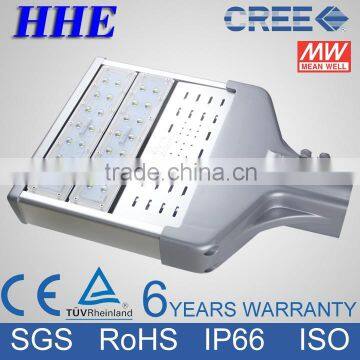

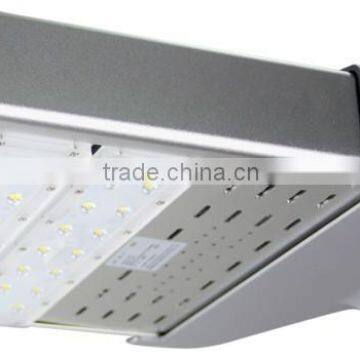

2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w

2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w thumbnail-1
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w thumbnail-2
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w thumbnail-3
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w thumbnail-4
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w thumbnail-5
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w thumbnail-6
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w photo-1
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w photo-2
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w photo-3
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w photo-4
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w photo-5
2015 Top Quality DLC Listed LED Retrofit Kit to Replace LED Street Lamp 60w photo-6
US$ 100 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
LED
Input Voltage(V):
100-277v
Lamp Power(W):
60
Contact Supplier Request Quote Chat Now
Shenzhen Hanhua Opto Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source LED
Input Voltage(V) 100-277v
Lamp Power(W) 60
Lamp Luminous Flux(lm) 6000
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 6000k
Working Temperature(℃) -30, +50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP67
Warranty(Year) 6
Place of Origin Guangdong, China
Brand Name HHE
Model Number H60

                                         2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w



Data

specification

Model No.

H-60

H-90

H-120

H-100

H-150

H-200

H-250

H-300

Power

60W

90W

120W

100W

150W

200W

250W

300W

LED numbers

24×2.2W

36×2.2W

48×2.2W

40×2.2W

60×2.2W

80×2.2W

100×2.2W

120×2.2W

N.W.

5.1kg

6.2kg

7.2kg

5.7kg

6.5kg

8kg

10kg

12kg

G.W.

6kg

7.1kg

8.5kg

6.3kg

7.5kg

10kg

11.5kg

14kg

Package size L*W*H

575*395*230mm

575*395*230mm

705*395*230mm

595*395*230mm

670*395*230mm

745*395*230mm

745*395*230mm

895*395*230mm

Q’ty per package

1

1

1

1

1

1

1

1

Luminous Efficiency

3000K

80lm/W

4500K

90lm/W

6000K

100lm/W

CT

3000K/4500K/6000K

CRI

≥70

Input voltage

100V~277V

Frequency

50Hz/60Hz

PF

Greater than 0.95

Working temperature

-30℃~50℃

IP rating

IP66

Shell and lens

All aluminum alloy shell

, UV radiation aging resistance

Lifespan

50000 hours

warranty

6 years



  IP66 aluminum alloy industrial led street light led lamp 60w/90w/100w/120w/150w/200w/250w/300w





products detail

products detail.

 1,  product overview

1.1 product photo

      2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w



2,LED

Use famous international brand CREE-XTE led,high luminous efficiency, long lifespan, low light decay, good consistency.



Series        TC         Model       (350mA,85℃) LM



XTE          3000K        Q5            107lm

                4000K        R3            122lm

                5000K        R4            130lm


XPE          3000K        Q3             93.9lm

                4000K        Q5             107lm

                5000K        R3              122lm


XBD          3000K       Q3              93.9lm

                4000K        Q5              107lm

                5000K        R2              114lm




3,led driver

Use Taiwan Meanwell driver, high efficiency, long lifespan, reliable; Ventilation power cavity design, low power operating temperature to ensure long life power













2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w

4,module

Patented design of self-cleaning

module,Umodularization thermal system design;input wiring connector is waterproof,use a large ring seal for the lens, sealand reliable; pay much attention to the details,  fully consider the man-machine engineering  (Compact design, good heat dissipation,reliable sealing waterproof)

























5. Heat lamps

Lamps USE the module type radiator, which has a 5 mm gap between, and interconnected up and down , lighting modules be able to form a good part of the flow field, to ensure the LED heat smoothly and quickly with air diffuser, to ensure that suitable temperatures within the range in order to ensure that the lamps light decay and lifespan. ( Fluid heat dissipation pathway, the good overall heat dissipation performance

















6, extension functions

Can easily realize some extension functions, such as: lightning protection, intelligent operation mode of time control, voice control, light control, internet control, wireless control and digital management.

























 7,distribution of luminous intensity

Professional design for the luminous intensity

distribution, meet all kinds of lighting requirements,

overall spot is rectangular























2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w



 8,Wiring

      7.1 simple and reliable inner wiring distribution           7.2 Simple input wiring: reliable,  sealed                                                                                                                          and pulling-out protected.

2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w

9,Installation.

      With flexible installation ability, degree can be adjusted between -5~15 without changing the lamp post. The installation position is visible, convenient for assembling and adjusting the lamp’s degree .

2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w

10,  with strong structure strength, can fight 12 typhoons

                                                                                                                                 2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w

2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w





Contact us

2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w



Certificate,packing

2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w









Feature and PK

product specification

2015 Top quality DLC listed LED retrofit kit to replace LED street lamp 60w
