high quality H-60 series 60w cool white 6000k led module type street lamp with great anti-hurricane function(LIGHTING SOLUTION )

FOB Price

USD $100 - $500 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	CREE	Input Voltage(V):	100V~277V	Lamp Power(W):	60
Lamp Luminous Flux(lm):	6000	Lamp Luminous Efficiency(lm/w):	100	Color Temperature(CCT):	Cool White
Working Temperature(℃):	-30, 50	Working Lifetime(Hour):	50000	Lamp Body Material:	Aluminum Alloy
IP Rating:	IP66	Certification:	CE, EMC, UL	Warranty(Year):	6
Place of Origin:	China	Brand Name:	HHE	Model Number:	H-60

Product Description

high quality H-60 series 60w cool white 6000k led module type street lamp with great anti-hurricane function(LIGHTING SOLUTION)

Data

specification

Model No.		H-60	H-90	H-120	H-100	H-150	H-200	H-250	H-300
Power		60W	90W	120W	100W	150W	200W	250W	300W
LED numbers		24×2.2W	36×2.2W	48×2.2W	40×2.2W	60×2.2W	80×2.2W	100×2.2W	120×2.2W
N.W.		5.1kg	6.2kg	7.2kg	5.7kg	6.5kg	8kg	10kg	12kg
G.W.		6kg	7.1kg	8.5kg	6.3kg	7.5kg	10kg	11.5kg	14kg
Package size LWH		575395230mm	575395230mm	705395230mm	595395230mm	670395230mm	745395230mm	745395230mm	895395230mm
Q’ty per package		1	1	1	1	1	1	1	1
Luminous Efficiency	3000K	80lm/W
	4500K	90lm/W
	6000K	100lm/W
CT		3000K/4500K/6000K
CRI		≥70
Input voltage		100V~277V
Frequency		50Hz/60Hz
PF		Greater than 0.95
Working temperature		-30℃~50℃
IP rating		IP66
Shell and lens		All aluminum alloy shell Lens is PC material, high transmittance, high temperature resistance , UV radiation aging resistance
Lifespan		50000 hours
warranty		6 years

products detail

products detail.

1, product overview

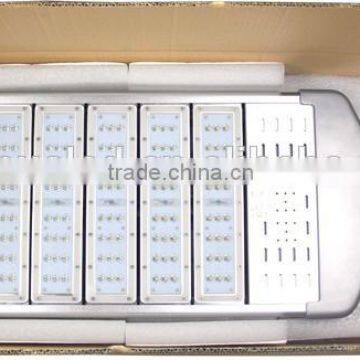

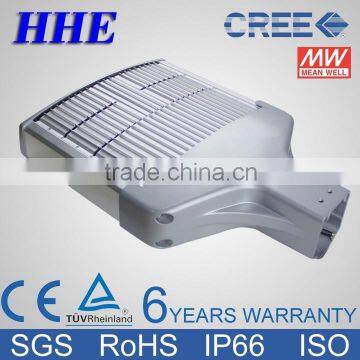

1.1 product photo

2,LED

Use famous international brand CREE-XTE led,high luminous efficiency, long lifespan, low light decay, good consistency.

Series TC Model (350mA,85℃) LM

XTE 3000K Q5 107lm

4000K R3 122lm

5000K R4 130lm

XPE 3000K Q3 93.9lm

4000K Q5 107lm

5000K R3 122lm

XBD 3000K Q3 93.9lm

4000K Q5 107lm

5000K R2 114lm

3,led driver

Use Taiwan Meanwell driver, high efficiency, long lifespan, reliable; Ventilation power cavity design, low power operating temperature to ensure long life power

4,module

Patented design of self-cleaning module,Umodularization thermal system design;input wiring connector is waterproof,use a large ring seal for the lens, sealand

reliable; pay much attention to the details, fully consider the man-machine engineering (Compact design, good heat dissipation,reliable sealing waterproof)

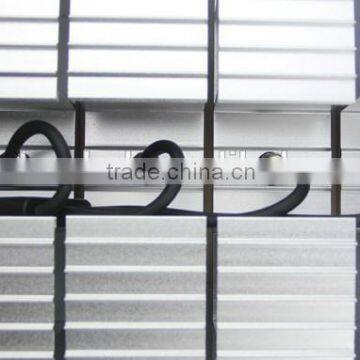

5. Heat lamps

Lamps USE the module type radiator, which has a 5 mm gap between, and interconnected up and down , lighting modules be able to form a good part of the flow field, to ensure the LED heat smoothly and quickly with air diffuser, to ensure that suitable temperatures within the range in order to ensure that the lamps light decay and lifespan. ( Fluid heat dissipation pathway, the good overall heat dissipation performance

6, extension functions

Can easily realize some extension functions, such as: lightning protection, intelligent operation mode of time control, voice control, light control, internet control, wireless control and digital management.

7,distribution of luminous intensity

Professional design for the luminous intensity

distribution, meet all kinds of lighting requirements,

overall spot is rectangular.

8,Wiring

7.1 simple and reliable inner wiring distribution 7.2 Simple input wiring: reliable, sealed and pulling-out protected.

9,Installation.

With flexible installation ability, degree can be adjusted between -5~15 without changing the lamp post. The installation position is visible, convenient for assembling and adjusting the lamp’s degree .

10, with strong structure strength, can fight 12 typhoons

Service

Trade terms and payment

Trade terms:EXW,FOB,CIF,D/P,EMC,EMBT,BT

Payment :T/T,L/C,PAYPAL,Western union,

Delivery time:7-30 working days according to order quantity

Presale serice

1.Your inquiry related to our products or prices will be replied in 8hours latest.

2. Provide professional offer.Provide detailed products test report and related specifications.

3. Provide professional led lighting technology support to meet the requirements of customers about photoelectric color.

4.OEM&ODM, any your customized lightings we can help you to design and put into product.

After Sale Service

HHE street light product provide 6 years warranty, all freight for replacing parts/lamp at our side

1). If deriver failed, we’ll send new driver

2). If LED failed, we’ll sent new LED

3). Unclear reason, we will sent full new set

About Us

Shenzhen Hanhua OptoCo., Ltd,a high-tech enterprice, which was found in 2006, located in ,Yishida Baoyicheng Science and Technology Park. Dahe community,guanlan street,Shenzhen,China,are specialized in product design, research and development, production and sales team, which has access to national high-tech enterprise honor, adding China Illuminating Engineering Society (CIES), CSA State Lighting R & D and Industry Alliance.

R & D and production

Hanhua has a standard product line, import and export right and professional management team,which include: LED street lamp, nail lamp, plant grow lights, LED components; Products with energy saving, environmental protection, long life, etc., are widely used in indoor and outdoor lighting, urban lighting, traffic signs and solar power generation.

Cooperation Experience

Hanhua passed the ISO9001 international quality system certification; and the series of products through TUV and SGS agencies of ROHS and CE certification. Company R & D center with a number of domestic and foreign research institutes to develop projects, to provide customers with energy efficient, green products and technical services. At present, our products have been sold to the world more than 80 countries and regions. Our products are involved in a number of domestic and foreign key construction projects, praised by customers.

Feature and PK

product specification

Certificate,packing

Why choose Hanhua

Why choose Hanhua street light:

Company advantage:

1. HHE ,9 years focused on Led

2. One-stop lighting solutions (lighting designing, lighting choosing, solar and wind power solution etc.)

3. OEM&ODM are welcome

4. Independent innovation,design,open mold, striking HanHua characteristic

5. R&D team: 20 engineers with 10years led street lamp design work experience.

Products advantage

1. U modularization design concept: can be 50-330W covered in full power range

2. All products and raw maerials are compliant with Germany TUV.

3. CREE and Mean well as our partner.

4. High product performance and competitive price.

5. Provide 6 years long warranty
