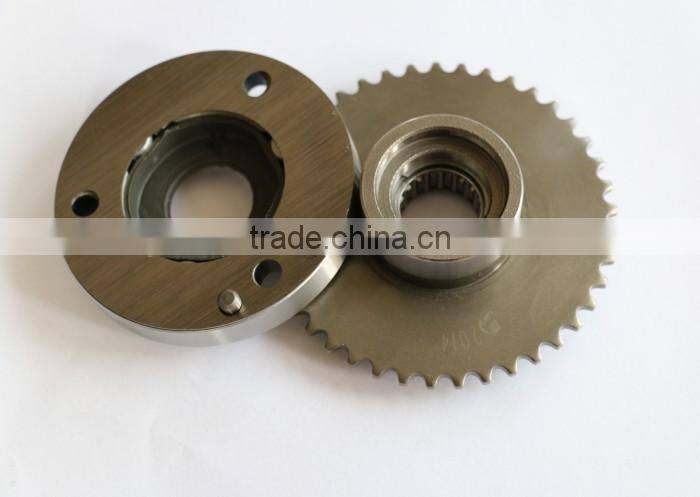

motorcycle engine parts DY 100 overrunning clutch gear assembly
- 500 Set / Sets per Month
- Chongqing
- T/T
- Mountable and Extendable Anodized Aluminum Modified Motorcycle Mirror Stand Phone Holder Bar
- Aluminum Anti-Wrestling Moto Protection Front Axle Cover Shock Damping Cup
- Motorcycle Key Embryo Gold Zinc Finished Steel Stock Replacement Motorcycle Key
- Motorcycle Spirit Breast Metal Key Case Cover CNC Anodized Aluminum Key Case One Click Cover
- Good Quality Auto Starter Clutch Gear OEM 28021-73020
- Good Quality Camshaft Timing Gear Assy 13050-28021 13050-28020 For Toyota Camry Highlander RAV4 Scion Vibe 2.0L 2.4L
Product Details
Type: | Motorcycle Gear | Place of Origin: | Chongqing, China | Brand Name: | LIBO |
Model Number: | LIBO-DY100 |
Product Description
Specifications
(1)High strength ,abrasion resistant(2)Stable performance
(3)Accurated power transfer
(4)High quality,long working life
Material:45 steel Module:2 Teeth number:57 Tooth profile:20 Outer diameter:117.9 Accracy grade:8-GB10095-2001 Shifting coefficient:0.005 Tolerance on tooth profile error:0.013 Helix deviation:0.011 Base tangent length:39.97 Teeth number in base tangent length:7 |

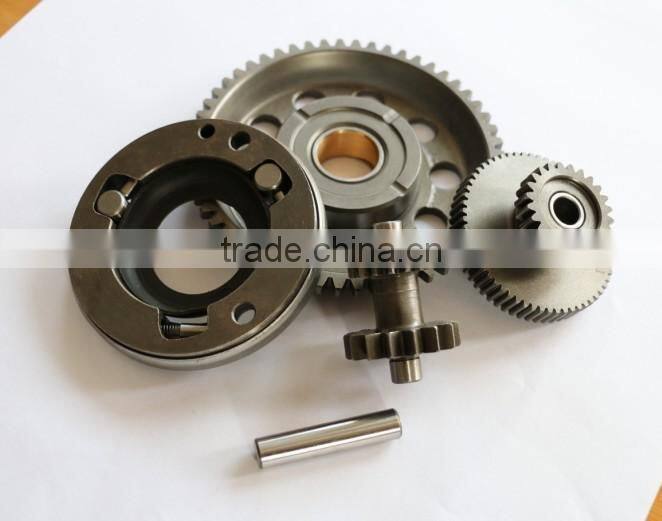

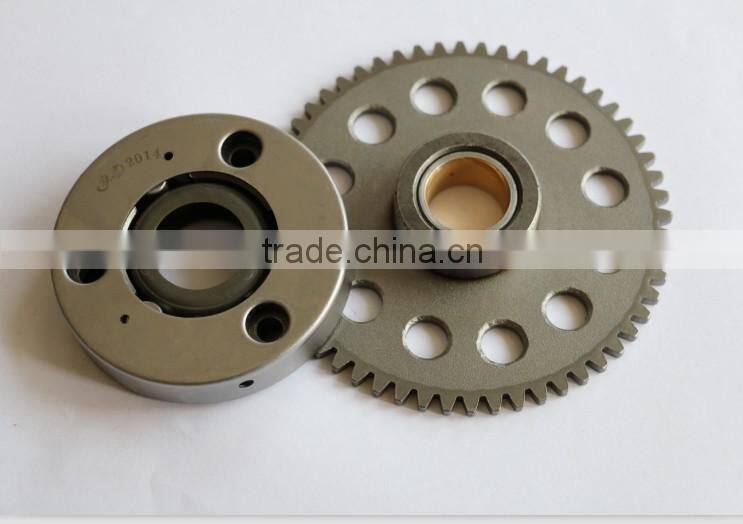

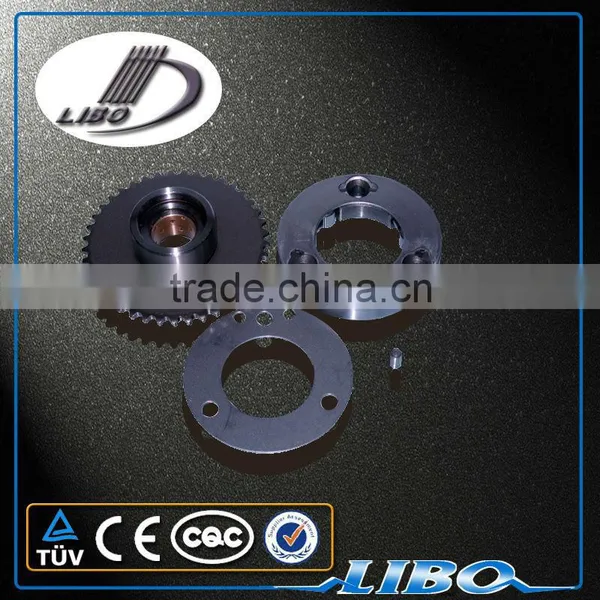

LIBO starting gear and overrunning clutch is a set of transmission parts for all kinds of motorcycle engines,adopted forging technics,and high advanced equipment to ensure the good quality and long working life.We supply to Zongshen,Longxin,Lifan,Suzuki,and Honda and so on.

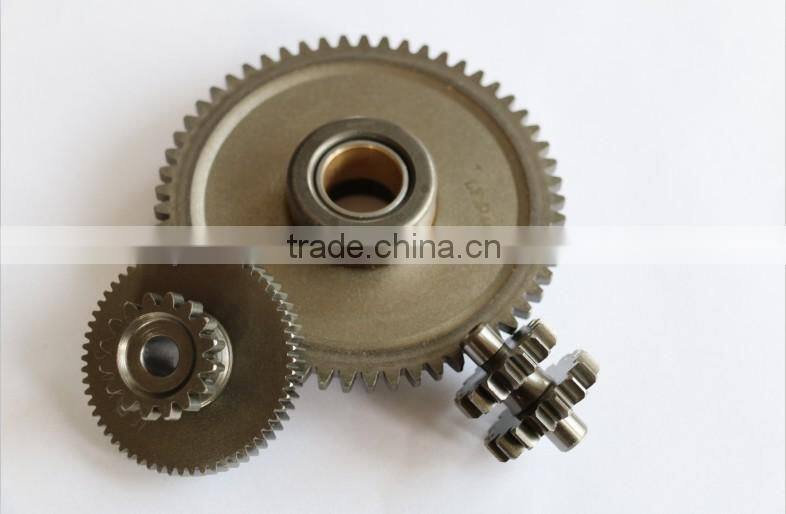

Motorcycle Starting Gear Series | |||||
Item | Material | Module | Teeth Number | Tooth Profile | Outer Diameter |
CB133 | 20CrMnTi | 2 | 56 | 20 | 116.4 |
YAMAHA110 | 20CrMnTi | 1.5 | 77 | 20 | 119.4 |
CG125 | 20Cr | 2 | 57 | 20 | 117.9 |
KYYA | 20CrMo | 2 | 58 | 20 | 115.8 |
KWW | 20CrMo | 2 | 55 | 20 | 114 |
NC250 | 20CrMnTi | 1.75 | 58 | 20 | 105.6 |
YB155 | 20CrMnTi | 1.5 | 77 | 20 | 119.4 |
CG200 | 20CrMnTi | 2 | 57 | 20 | 117.9 |
CB125 | 20CrMnTi | 2 | 56 | 20 | 116.4 |

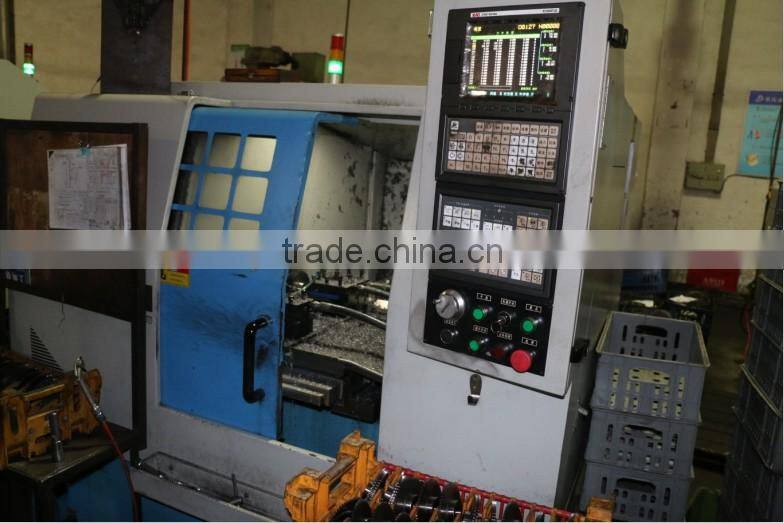

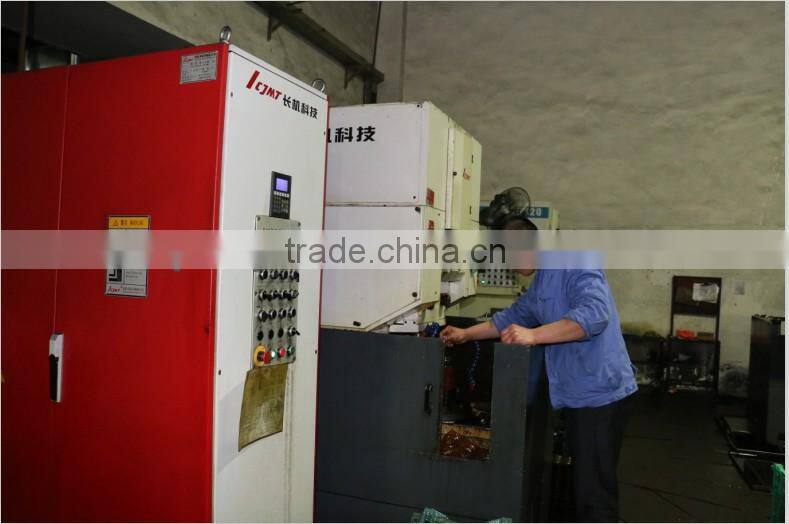

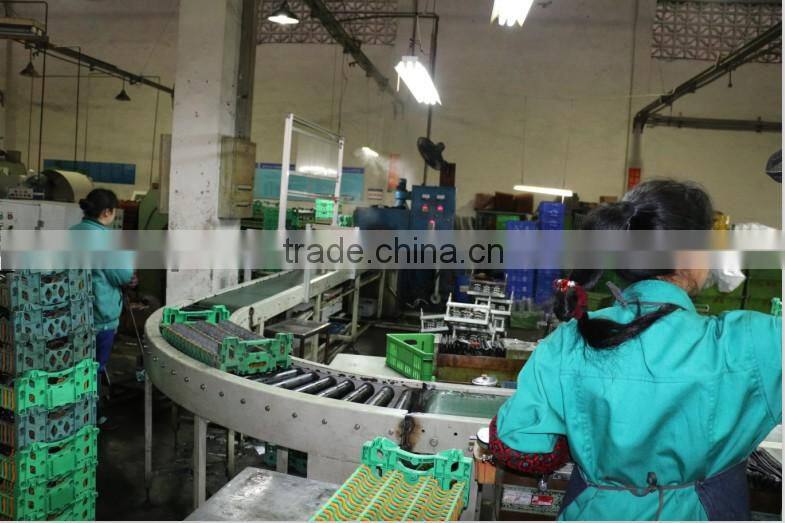

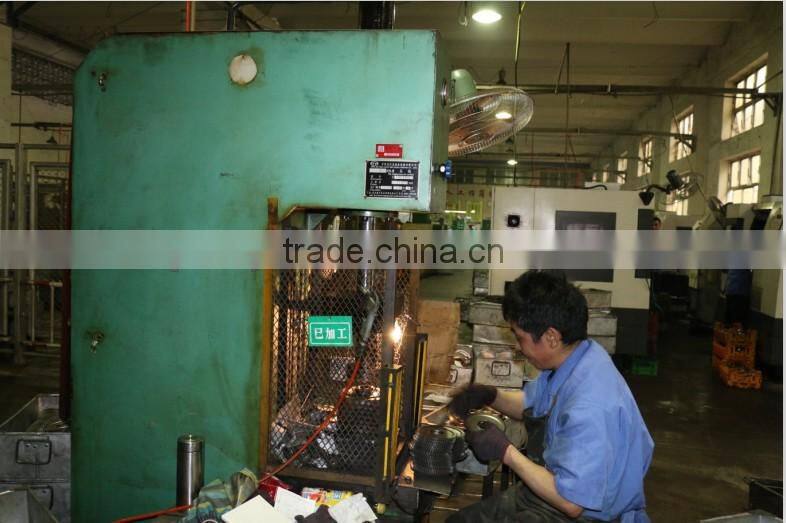

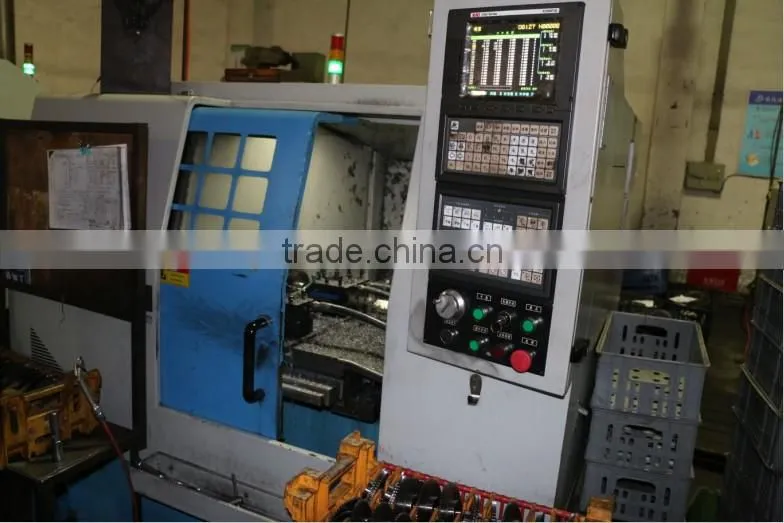

Our main process:
(1)Forging | (2)Turning |
(3)Finish turning | (4)Gear hobbing |
(5)Gear shaping | (6)Gear shaving |
(7)Gear honing |
|
Surface Treatment:
(1)Shot blasting | (2)Debrrring |
(3)Polishing |
|
Heat Treatment:
(1)Normalizing | (2)Carburizing/Quenching |
(3)High-frequenching | (4)Tempering |
(5)Measuring&Testing | (5)Measuring&Testing |
