Help CenterPaint Mixing Machine
Related Products
1. Plough mixer
2. CE, ISO, SGS, BV approved;
3. Wide application in: Powder and liquid mixing (like Food, Pharmaceutics; Agriculture; Dyestuff; Chemicals), small fiber, and paste with low viscosity
General Introduction
Plough mixer is characterized by high mixing precision, and wide application to food, chemical industries, and building lines. The major sections of a mixer are barrel, plough shears, feeding ports, discharging port and driven unit!!
Plough shear or sloping blade is set on the main shaft. When the plough shear mixer is on operation, the special mixing structure makes the material to be mixed continuously! The dead corner is absolutely avoided under the simultaneous radial and longitudinal movement, thus high accuracy mixing effect is achieved!
Our plough shear mixer can be equipped with heating or cooling jacket if temperature control is required. Besides, all of our powder mixer can tolerate about 10% liquid additives! We will add spraying or atomizing unit inside the tank!

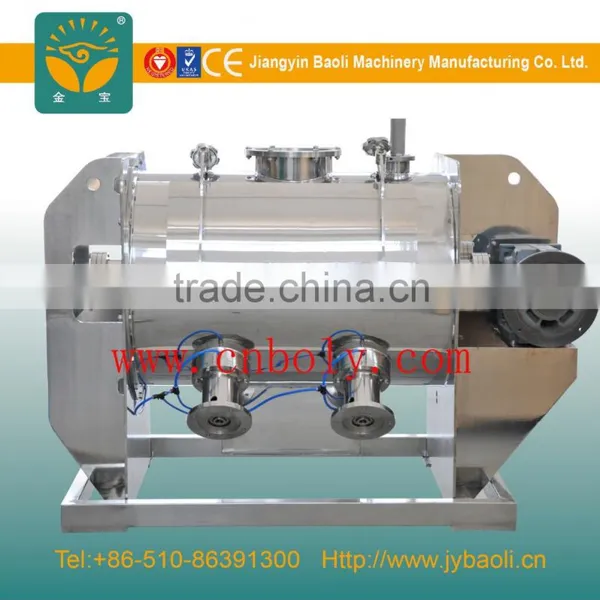

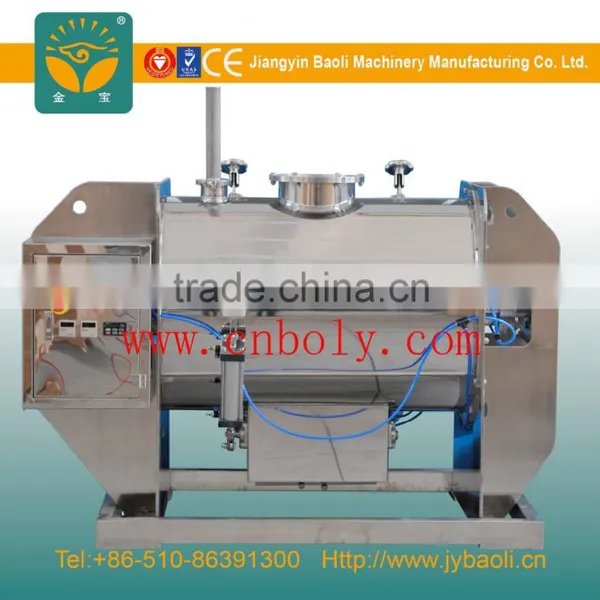

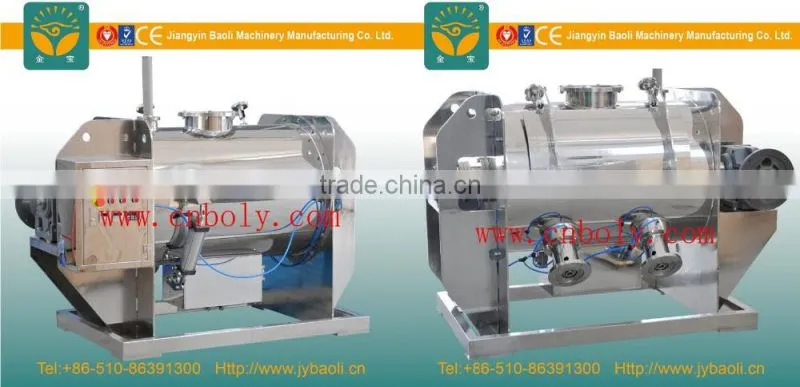

Detail Pictures of Paint Mixing Machine
Technical Parameters
| specification | JB-0.3 | JB-0.5 | JB-1 | JB-2 | JB-3 | JB-4 | JB-6 | JB-8 | JB-10 | JB-15 |
| working capacity(m³) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 | 6 | 9 |
| working capacity (KG) | 200 | 300 | 600 | 1200 | 1800 | 2500 | 3600 | 5000 | 6000 | 9000 |
| speed (R/min) | 130 | 130 | 85 | 63 | 63 | 42 | 42 | 33 | 33 | 28 |
| power (KW) | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 45 | 55 | 75 | 90 |
| weight | 550 | 800 | 1000 | 1800 | 2500 | 3500 | 4200 | 4800 | 5800 | 7000 |
| length | 2200 | 2700 | 3200 | 4100 | 4350 | 4700 | 5400 | 6500 | 5600 | 6000 |
| width | 900 | 980 | 1000 | 1250 | 1450 | 1500 | 1700 | 2200 | 2500 | 2800 |
| height | 900 | 1200 | 1350 | 1600 | 1800 | 1950 | 2300 | 2600 | 2900 | 3000 |
Standard configuration
2. Motor brand: Siemens (made in China)
3. Gear box brand: Chinese Famous brand (Huaxing)
4. Bearings: Chinese Famous brand
5. Discharging valve: pneumatic flap valve (no dead angle when mixing).
6. Main Shaft Seal
Air-purged seal and stuffing seal for powder material
Mechanical seal for liquid material
7. Voltage and Hz
380V 3Phases 50hz or in accordance with it in the using place
8. Top Cover
Could be fully open so as to clean, with safety grid and limit switch to make sure safety operation for workers
9. Normal duty type: start the mixer first and then load the material
10. Surface treatment: painting, polishing, passivation, blasting, acid-picking and so on
11. Packing in pallet or wooden case
Additional configuration
1. Driven unit: Many worldwide famous brands are for option: SEW, ABB, Siemens and so on
2. Bearings: NSK/TNT and so on
3. Heating/cooling jacket: water, oil, steam as the cooling or heating medium
4. Spraying system
5. Heavy duty type ( loading your material into the mixer first and then start the mixer)
6. Platform: we build the platform for you or we design it and you build it locally
7. Mixing system: including packing machine, bucket elevator, Sieve, screw conveyor and so.
8. Customizing according to client’s specific requirement
9. High speed choppers can be added inside the mixing tank to promote the mixing effect
major parameters for technology selection
1. powers name and character (mesh and density)
2. output per batch
3. stainless steel 304/316LL or carbon steel
4.the electrialenviroment in machine's using place
mixers need to be customized according to the different cases, the cases are as below:
1. Agglomerated material larger than 5mm is contained in the raw material
2. Bulk density of the raw material bigger than 3kg/l
3. Materials that are easy to get damp and not allowed to be exposed to the atmosphere, the mixer need to be vacuumized or negative pressure
4. Fill compressed air to the mixer barrel, and keep the pressure
5. Material with a large friction coefficient, mixer need to do a special Wear-resistant surface treatment
6. Material is not allowed to contact with the metal surface during mixing process
7. Mixer need to be heated up to 200 Celsius degree
8. Heavy duty (loading material into mixer before turning on it) is required.
Our Factory
Certification
If you want to send inquriy to me about our product, could you please tell me?
1) What material you want to grind, is it dry, what is the size of feed material ?
2) What capacity you expect ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
