Horizontal Powder Mixer Dry Powder Mixing Machine
- Shanghai China
- T/T Credit Card
You May Like
Product Details
| Condition | New | Mixer Type | Paddle | |
| Product Type | Other | Application | Powder | |
| Additional Capabilities | Other | Place of Origin | Jiangsu, China | |
| Brand Name | Jinbao | Model Number | JB-300/500/1000/2000/3000/4000/5000 | |
| Voltage | All countries are OK | Certification | CE,ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

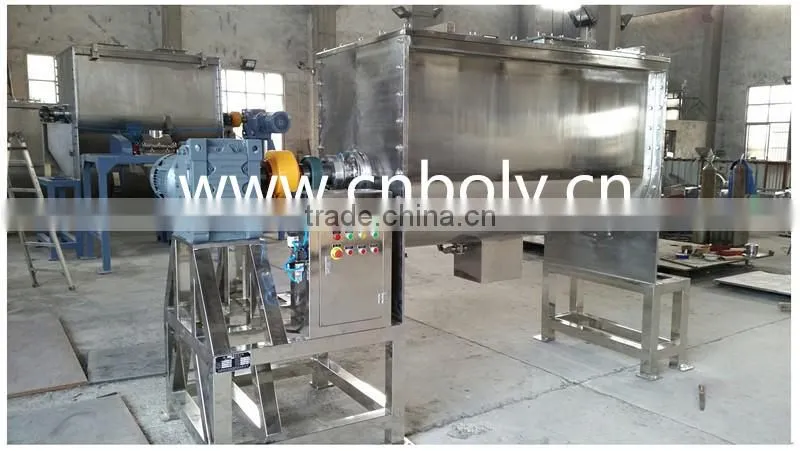

Horizontal powder mixer dry powder mixing machine
Main Usage
JB series Ribbon Mixer is mainly comprised of mixing barrel, spiral ribbon and driven parts. The spiral ribbon is made of two layers. That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.
Specialty
JB series Ribbon Mixer is a new researched and new high-efficiency mixer. It is mix solid and dry material
Technical Parameters
Model | JB-300 | JB-500 | JB-1000 | JB1500 | JB-2000 | JB3000 | JB-4000 | JB6000 | JB-8000 | JB-10000 |
Barrel volume(L) | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
Loading volume(L) | 100-180 | 200-300 | 400-600 | 600-900 | 800-12000 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
Mixing time (Min) | 8-20 | 8-20 | 8-20 | 8-20 | 8-20
| 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
Blender Motor (KW) | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 18.5-30 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
Weight kg | 510 | 920 | 1450 | 1950 | 3160 | 3300 | 3620 | 5400 | 6880 | 7900 |
Material | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
Detail Pictures
Other Recommended
If you want to send inquriy to me about our product, could you please tell me?
1) What material you want to grind, is it dry, what is the size of feed material ?
2) What capacity you expect ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
