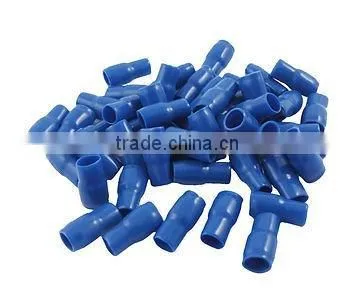

Hot selling flexible soft pvc insulated terminal sleeve
Any dimension and color can be customized.
Property of Cable terminal sleeve
| Item | Test Standard | Test Method | Test Result | |
| 1 | Appearance | Clean, Smooth, Transparent, No Bubble | Visual Inspection | Pass |
| 2 | Aging Test | 168Hrs@136℃ without aging | Aging Box | Pass |
| 3 | Insulation Resistance | DC 500V, Insulation Resistance R≥200MΩ | Insulation Tesistance Tester | Pass |
| 4 | Dielectric Withstand Voltage Test |
AC 2500V/Min (5mA) No Breakdown |
Dielectric Withstand Voltage Tester | Pass |
| 5 | Corrosion Resistance | Company standard: Q/HT-2004 | Corrosion Device | Pass |
| 6 | Flammability Standard | UL 94V-0 | Flame Burning | Pass |
Cable terminal sleeve Introduction
Zhongtian PVC cable connector sleeves are mainly used for the insulation and mechanical protection of electrical cable terminals.
They are with excellent chemical and electrical performance, hardwearing and resistant to oil, water, diesel and abrasion etc.
This tubing is lead free, REACH, RoHS and UL compliant.
They are widely used in electronics, communication equipment, household electrical appliances, automobile, motorcycle, etc.
The cable sleeves are available in a wide range of sizes(ID 2.8mm to 47mm) and colors.

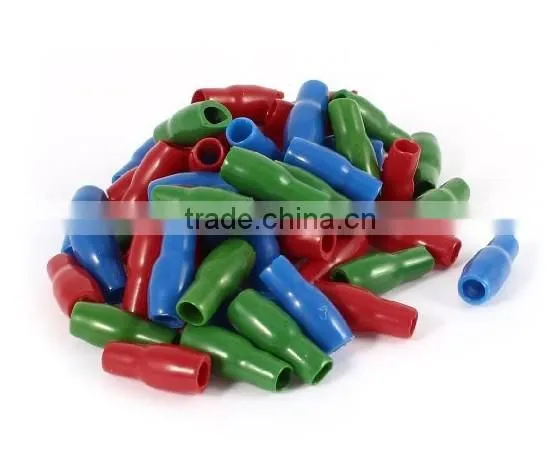

Available in Black, Clear, White, Red, Grey, Yellow, Green, Blue and other customized color.
Wall thickness: 0.6 mm – 2.5 mm
Private labelling available.
Material: |
PVC |
Dielectric strength: |
20 kV/mm |
Tensile Strength: |
24 N/ mm² |
Elongation at break: |
300% |
Operating temperature: |
–20 °C → +105 °C |
Flame resistance: |
ULVW-1 |
Wall thickness: |
0.6 mm – 2.5 mm |
Available inside diameter: |
2.8mm – 47mm |
Packaging
Internal poly bag and external carton. Special packaging could be customized.
Shipping
Any shipping method is available including courier & forwarder.
Why choosing us?
- We have been specializing in soft PVC products since 1991.
- All raw materials are certificated by the latest standards of RoHS, REACH and UL 94V-0 Flammability.
- Stable production, short lead time(2-4 work days for regular products).
Zhongtian Products Overview
|
|
|
|
|
|
|
|
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Contact Us
Caroline Chen
Area sales Manager
Zhejiang Zhongtian Electrical Jacket Co., Ltd
Add: Lianchitou, Beibaixiang Town, Yueqing, Wenzhou, Zhejiang, 325603, China
Tel: +86 577 57150138
Fax: +86 577 62966586
Email: carolinechen(@)
Skype: carolinechen_6
BACK TO HOME PAGE
Production
We accept OEM orders, our daily production capability of 4 million pcs is able to meet most urgent orders, and our regular lead time is 10 days.
R&D
We offer free samples and we are flexible in custom molding for new products.
We can not only make new products according to customer design but also design for customer’s applications.
1 What certificate do you have for your products ?
Our products are compliant with REACH, RoHS & UL 94V-0 Flammability standard. Our UL was obtained in 2002, and our last REACH and RoHS tests were done in Jan 2015 according to the latest standards.
Here are the details:
UL certificate #: E206666
REACH Test Report by CTI, Report #: ECL01H002970002
RoHS Test Report by CTI, Report #: ECL01H001493002
2 Can you name a few of your customers ?
We are verified vendor of Panasonic, Mitsubishi, Samsung, LG, GREE, Midea etc.
3 What is your sample policy ?
We can offer our standard products for free. We are also able to prototype new products.
4 How is your quality compared with other Chinese products ?
Quality is the most important factor that sets us apart from Chinese competition. We carry out strict quality control throughout the whole production process.
We test all raw materials to assure the compliance with REACH and RoHS. And we implement 5S management in our factory and we test 100% products before shipment.
In most cases, it is not difficult to distinguish ours from competing ones from the workmanship.
5 What color do you offer ?
We can offer visually any color, if you want any special color, just let us know the pantone number.
6 What is the MOQ of your order ?
For inventory, the MOQ is 100 pcs(depending on the models). Pls email us about MOQ for customized products.
We offer OEM for our customers.
7 What is the payment terms ?
Generally, we accept T/T 30% in advance, 70% balance before shipment. We also accept Paypal, Western Union and MoneyGram for small orders.
8 What is your lead time ?
10 days for regular products. Inventory will be shipped out upon payment, and customized products will be shipped as negotiated.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
