1GQN series of rotary tiller manufacturers 2014 HOT SALE
- 300 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
| Condition: | New | Type: | Farm Cultivator | Power Type: | Diesel |
| Certification: | ISO9001-2000 | Warranty: | 1 year | Use: | farm cultivation |
| Place of Origin: | Shandong, China | Brand Name: | Ali Disc Harrow | Model Number: | 1GQN-250 |
| Weight: | 460 kg | Dimension(L*W*H): | 1120*2600*1152 mm | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1GQN series of rotary tiller manufacturers :Matched power:12-120hp
Working width:100-300cm
Overall weight:200-520kg
1GQN series of rotary tiller manufacturers (Shandong Yucheng Ali Disc Harrow Co.,Ltd):
Uses:
This rotary tiller adopts middle gear transmission system,which mounted with the tractor of 12-80HP.Tractor's wheel tracks are completely covered after tillage as the working width is much wider.
Features:
The quality is reliable and the performance is well.So it can be used on dry and paddy field.It can reduce the time,labor and cost .etc
Main specifications rotary tiller:
Modle | 1GQN-100 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-220 | 1GQN-250 | 1GQN-300 | ||
1GN-100 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GN-180 | 1GN-200 | 1GN-220 | 1GN-250 | 1GN-300 | |||
Matched power(hp) | 12-15 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 80~120 | ||
Working width(cm) | 100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | ||
Working depth(cm) |
Dry land | 12-16 | 12-18 | |||||||||
paddy field | 14-16 | 14~20 | ||||||||||
NO. of blades | 22 | 26 | 30 | 34 | 38 | 50 | 54 | 58 | 62 | 76 | ||
Type of blade | IT225 | IT245 | ||||||||||
(kg) Total weight | 200 | 220 | 230 | 240 | 260 | 415 | 430 | 445 | 460 | 520 | ||
192 | 210 | 220 | 230 | 248 | 405 | 420 | 435 | 450 | 450 | |||
(mm) Dimension | (L) | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | |
(W) | 1050 | 1350 | 1500 | 1600 | 1700 | 1900 | 2100 | 2300 | 2600 | 3100 | ||
(H) | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | ||
Linkage | (Standard three-point mounted) | |||||||||||

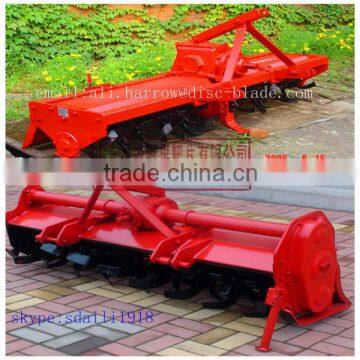

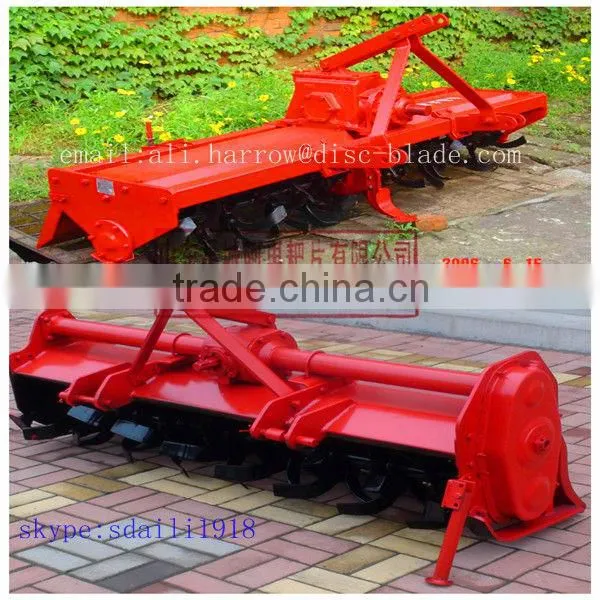

rotary tiller photos:
Packing:
After inspection the machine was carefully packed in a iron net box as follows
Shpping term :
1.FOB Qingdao port
2CNF or CIF your port
3 Others
- Provide professional person to communicate with you and serve you whole course.
- Provide strict quality check for each part, each process before export.
- Provide complete technical guide after-sale services.
- Provide the model you demanded according to your drawing or sample.
- Providing the best products and all-aspect services are our eternal tenet.
About our company:
[1] Our company Shandong Yucheng Ali Disc Harrow co,ltd, a private enterprise specializing in developing,
selling and producing the agricultural machinery, which is China's outstanding agricultural
expert, we have self-supported import and export right.The quality of our products is reliable and
the performance is well.The main products of our company include: ALI DISC HARROW
brand disc harrow, disc plow, mouldboard plow, rotary tiller, potato planting (harvest) machine,
cultivator, subsoiler, seeder, leveler, ridger, trencher, stubble cleaner, earth auger, fertilizer
distributor, farm trailer, and the other farm machinery.
[2] Our company has passed ISO9001.2000 quality system certification .
[3] Our company located in Shandong yucheng high and new technology,Our products are exported to America,France,Germany,Russia,Nigeria and so on .
Thank you for your attention on our products and also our company, and we hope that these informations will be helpful to you.
For more informations please feel free to contact us!
And welcome custom or trial or sample orders!!!
Sincerely welcome your inquiry and cooperate with us!
