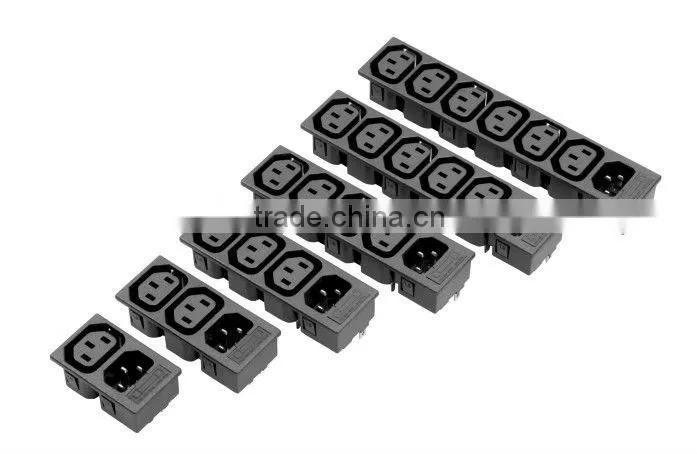

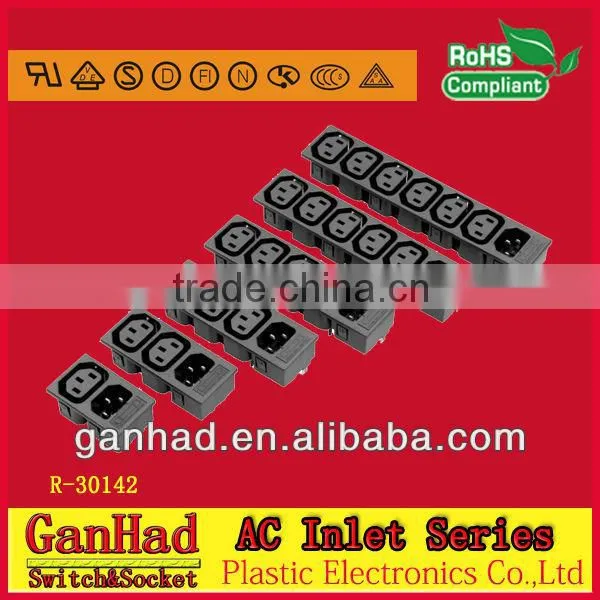

High quality C8 ac inlet socket & IEC60320 UL498 ac inlet socket

Specifications

1.High quality C8 ac inlet socket;
2.UL .cUL.VDE.SAA.EK.SAA approved;
3.Comply with ROHS/HF;
4.Design as requirement.

 SPECIFICATION:





Rating :	10A 250V  15A 125V
Standards:	UL498, IEC60320,GB17465
Initial Contact Resistance:	20mΩ max.
Insulation resistance:	100MΩ (min) for DC 500V
Withstand voltage:	1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Working temperature:	≤105°C
Main material:	Housing : PA66
Terminals :	Tin-plated brass
Certificates:	UL.CUL,CCC,VDE,SEMKO,NEMKO,FIMKO,DEMKO.SAA,EK



  Drawing:



products  advantage :



1.17 years manufacturing experience;

2.UL .cUL.VDE.SAA.EK.SAA approved;

3.Comply with ROHS/HF;

4.Design as requirement.

Packaging standards:





About the sample:



All samples requested by customers are delivered within 3days after confirming, and Samples are available within 10-15pcs. Offering anytime without delay by email,fax or air post.price is based on the demand quality per lot,newest products brochure is offered to clients per year.



Our Factory picture :
