3Pin Slide Switch of Red & Miniature Slide Switch of AC
Negotiable
/ Piece
1000 Pieces(Min. Order)
- HK OR SHENZHEN
- T/T
You May Like
-
3Pin Slide Switch of Red & Miniature Slide Switch of AC
-
6Pin Slide Switch of Red & Miniature Slide Switch of AC
-
Voltage Conversion Switch &115-230 Slide Switch
-
Voltage Conversion Switch &115-230 Voltage Selector Slide Switch
-
Voltage Conversion Switch &115-230 Voltage Selector Slide Switch
-
Voltage Conversion Switch &115-230 Voltage Selector Slide Switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |

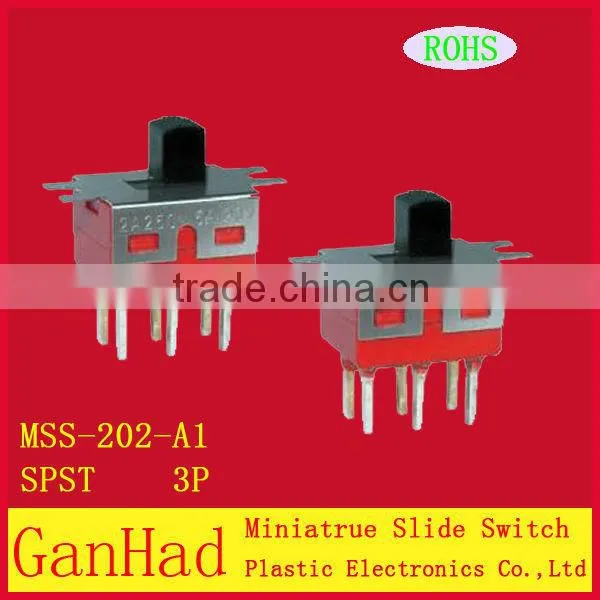

| Model Number | MSS-202-A1 | Max. Current | AC 2A 250V | |
| Max. Voltage | AC 5A 125V | Mechanical Life | 100000 Cycles |
Product Description
Specifications
The use of new materials production, has high reliability, long life. The product has passed UL.In line with the ROHS directive.Specification:
Rating: 2A 250V AC;5A 125V AC
Current Resistance: 20MΩMax
Insulation Resistance : 500V DC 1000MΩ Min
Dielectric Strength : 1500V AC,1 Minute
Operating trmperature -55°C--+85°C
Electrical life : 20000 Cycles
Housing : PBT UL94V-0
Terminals: Silver-plated Brass

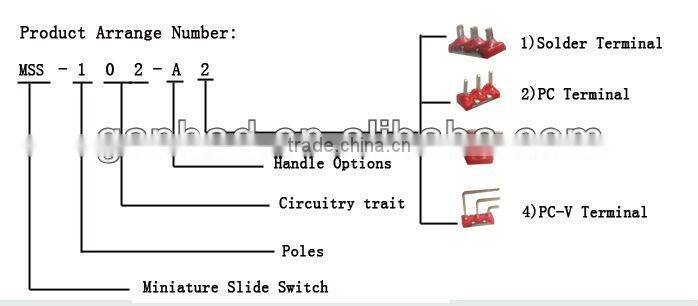

MSS - 202 - A1 ON-ON
MSS - 212 - A1 ON-(ON)
MSS - 203- A1 ON-OFF-ON
DPDT 6P
...
