Accommodation container cabin
Standard of CILC 20ft Container House
Exterior Size: L6058mm.*W2438mm*H2896mm;
Inner Size: L5818mm.*W2198mm*H2500mm
SPECIFICATION DETAILS:
1) BASE: 3 mm steel profile; 4 welded (container) corner castings with dimensions according with ISO norms.
Floor: 18 mm plywood, water resistant (V100), free of formaldehyde (E1); 1.5mm synthetic floor covering, welded seams; water soluble adhesive, environment friendly.
Floor base: 0.6 mm galvanized sheet metal.
Load bearing capacity: 2.5kN/m2 working load..
Insulation: 100 mm mineral-wool slabs (density 16-24 kg/m3 ; flash point class A-not flammable; smoke density class Q1-low smoke emission, in accordance with NORM B 3800).
K-value: 0.3 W/m2K.
2) ROOF:3mm welded steel profile; 4 (welded) container castings, deimensions in accordance with ISO norms, wooden perlins
Roof covering: 1.6 mm welded steel,
Geometry: Die-stamped corrugated steel plate.
Features : Roof panel will be cambered with 5mm Min upward to ensure complete water drainage.
Assembly : Butt welded together to form one panel by automatic MIG welding
Load bearing capacity: 2,5KN/m2
Roof covering/interior: 8 mm chipboard overlaid insides; colour: white; V20 quality, free of formaldehyde (E1).Insulation: 100 mm mineral-wool slabs (density 16-24 kg/m3).To avoid cold bridges, the also the roof frame is insulated with mineral-wool slabs (density 16-24 kg/m3)
K-value: 0.3 W/m2K.
3) CORNER POSTS
Profile: Cold rolled 4 mm steel profile.

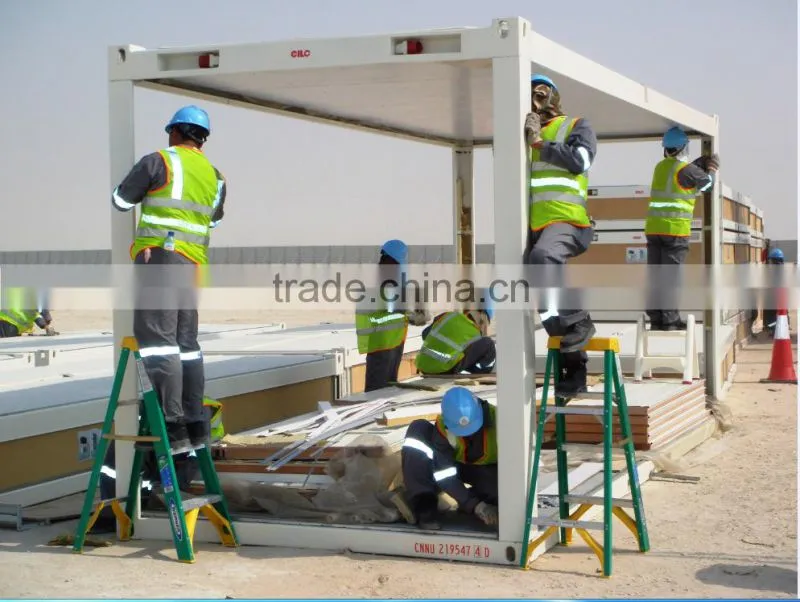

Fitting: The four corner posts are fitted with the base frame and the roof frame with a screwing. In this manner C I L C Module-Containers are collapsible and can be transported in packages.
Insulation: To avoid cold bridges, the corner posts are insulated with mineral-wool slabs (density 16-24 kg/m3)
4) WALL PANELS
Exterior cladding: profiled galvanized sheet metal, PVC overlaid, 0.6 mm..
Interior cladding: chip board in a thickness of 8 mm with a foil wood pattern.
Insulation: 50mm mineral wool (density 16-24 kg/m3) in the wood framework.
Load bearing capacity: 0.5 Kn/m2
K-value: 0.03W/m2K.
5) SURFACE PRESERVATION
All steel profiles will be fully abrasive shot blasted and coated with a primer prior to assembling, all sheet metals will be hot-dipping zinc galvanized.
6) PAINTING/COATING
Epoxy zinc rich primer : Min.30 microns (including shop primer)
Epoxy zinc phosphate primer : Min.40 microns
Chlorinated rubber : Min.50 microns
Total D.F.T. Min.120 microns
All zinc galvanized sheet metals are PVC overlaid in standard colours.
7) WINDOWS- 1SET
885*1200 mm The windows are build with PVC materials and fitted with guard against left net. They are
equipped with a blinding system,, and a insect net.
8) EXTERIOR DOORS:Aluminium – door with blind, door opening width 900/2000 mm.
9) ELECTRICAL INSTALLATION:
Electric cabling is concealed and resistant specification. All parts will be supplied with VDE 100 regulation.
Technical data:
Voltage: 220 V, 50~60 Hz
Joint: Exterior connection supplying accord to English norm sunken in the roof frame. Electric male plug 32 A 220V – with 3pine
Inner distribution system: NyM-J cables of suitable dimensions, flush-mounted
Protection : protective current switch (40/4E-0.03A), automatic fuses (B-characteristics) of suitable power(10A,16A)
Earthing : 1 galvanised strip iron earth electrode (2.5*4 mm) with fastening.
It is the responsibility of the buyer/ lessee to arrange for the Earthing installation on site.

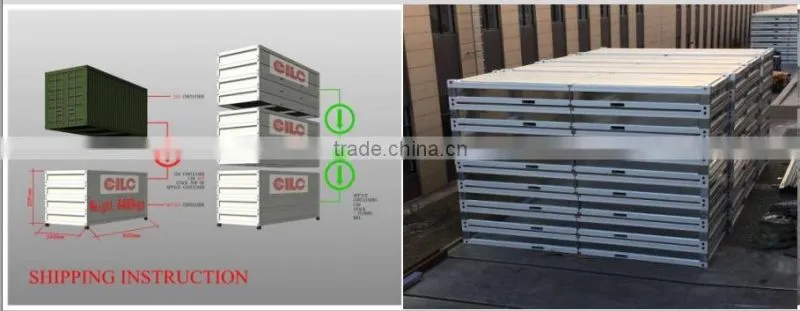

4 sets 20ft flat pack container as 20' SOC to save shipping cost.
OUR SUPPLY BEST SERVICE :
1) Free drawing and design: Making drawing according to your idea or layout;
2) Making quotation for you with best FOB Shanghai price;
3) Warranty period: 1 year
4) Installation engineer: We can sent installation engineer guider to your site construction for container isntallation;
5) Agent: You can be our agent after order if you first client in your country.

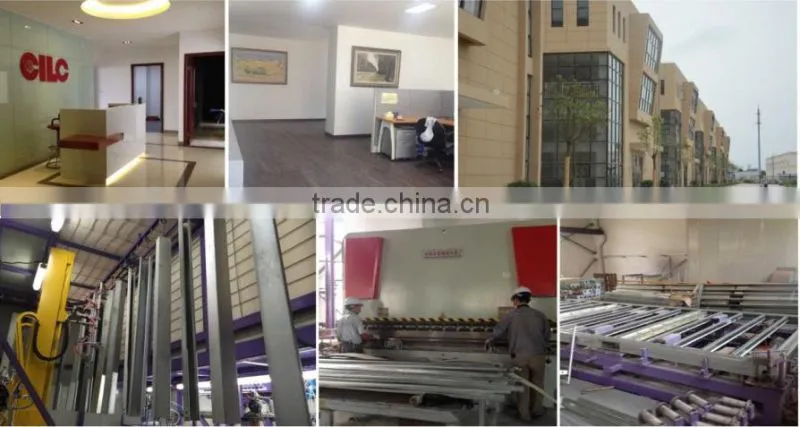

China International Container Leasing Co., Ltd. ( CILC) design, produce, deliver, install, and maintain office container, labor camp container, accommodation container, cabin container, prefabricated building container, flat pack container, modular container, container house, mobile house, portable house. We have 7 experienced engineers who can give professional suggestion to the clients; Also they can design for the clients as per their requirements. We have 600 workers making production in the factory and we can send a skilled team of 150 workers to supply installation service all over the world. We have 15 staffs to supply excellent service for our customers. Our capacity is 150 units per day; 4000 units per month. We have 40, 000 square meters workshop with nice and efficient production line. Our factory approved by ISO9001, and we have Fire certification issued by UK and UAE
We can also supply reefer, fuel tank container, Storage Container, Shelter Container and various special containers.
