ISO LPCB ABS Certification Country Villa

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	Cilc
Model Number	42257122	Material	Container
Use	Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant

Product Description

Specifications

1.Certified by LPCB for CN31 ISO9001.14001 ABS
2.10 years experience of modular container
3.40,000 square meters factory

country villa

1.1 Dimensions (mm) and weights (kg):

Type	External			Internal			Weight (approx. specifications)
	Length	Width	Height	Length	Width	Height	BM	BU	SU
10’	2989	2435	2591 2700 2896	2795	2240	2275 2383 2580	1150 1350	1200 1200	1450 1550
16’	4885	2435	2591 2700 2896	4690	2240	2275 2383 2580	1600 1750	1550 1600
20’	6055	2435	2591 2700 2896	5860	2240	2275 2383 2580	1950 2000	1750 1800	2450 2550
24’	7335	2435	2591 2700 2896	7140	2240	2275 2383 2580	2300 2400	2050 2150
30’	9120	2435	2591 2700 2896	8925	2240	2275 2383 2580	2550 2800	2450 2500

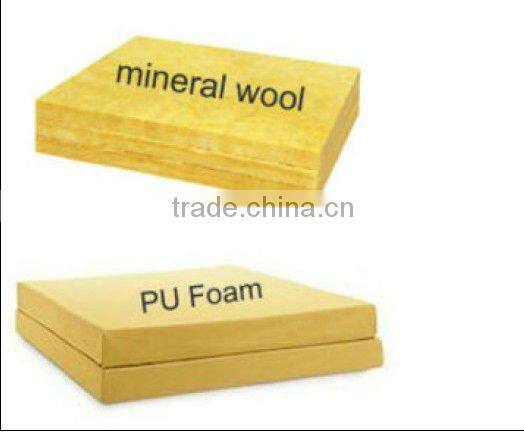

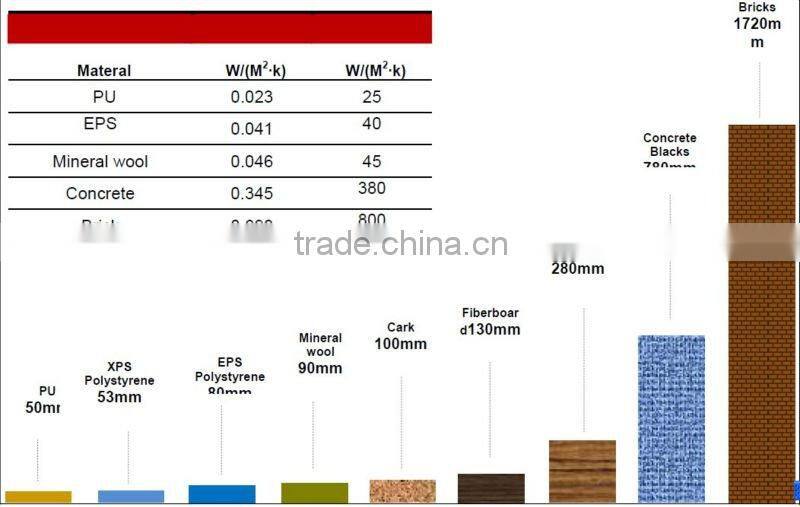

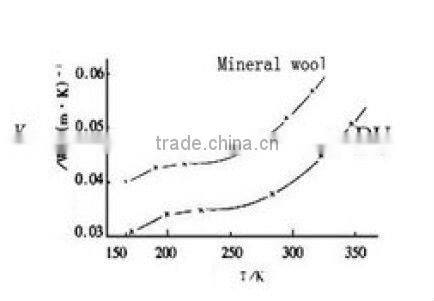

1.2 Insulation

Component	Insulation type	Thickness	U-value (W/m²K)*
Roof
CN-31	MW	100	0.359
CN-31	MW	140	0.233
CN-11	PU	100	0.198
CN-11	PU	140	0.145
Wall element
CN-31	MW	60	0.574
CN-31	MW	100	0.348
CN-11	PU	60	0.380
CN-11	PU	110	0.210
Floor
CN-31	MW	80	0.548
CN-31 CN-11	EPS	80	0.364
CN-11	PU	80	0.196
Window
	standard insulated window 1/2	4/16/4 mm	2.90
	window insulation with gas filling	4/16/4 mm	1.10
External door
	polystyrene	40 mm	1.4

* The U-values apply to the stated insulation thickness in the space between the timber frames in a half-timbered
construction (within the panel).

Material Data

Further insulation options upon request!

1.3 Load bearing capacity

floor load: ground floor: max. load capacity 2.0 kN/m² (200 kg/m²)

top floors: max. load capacity 1.5 kN/m² (150 kg/m²)

snow load: max. load capacity 1.0 kN/m² (100 kg/m²)

(equates to a typical snow load on the ground of sk1.25 kN/m² (125 kg/m²)

according to EN1991-1-3 with the national application document B1991-1-3)

wind load: 90 km/h [25 m/s] - terrain category III

When wind speeds are higher than 90 km/h (25m/s) additional safety

measures on the cabins need to be carried out (anchoring, screwing).

measurements are to be calculated by approved specialists taking into

Such measurements are to be calculated by approved specialists taking into consideration local standards and conditions.

All calculations were undertaken according to the European standards of ENV. Higher load capacity upon request

1.4 Sound insulation 33 - 44 dB

1.5 Certification

LPCB certificate for CN31

ISO9001:2000

ISO14001:2004

American Bureau of Shipping

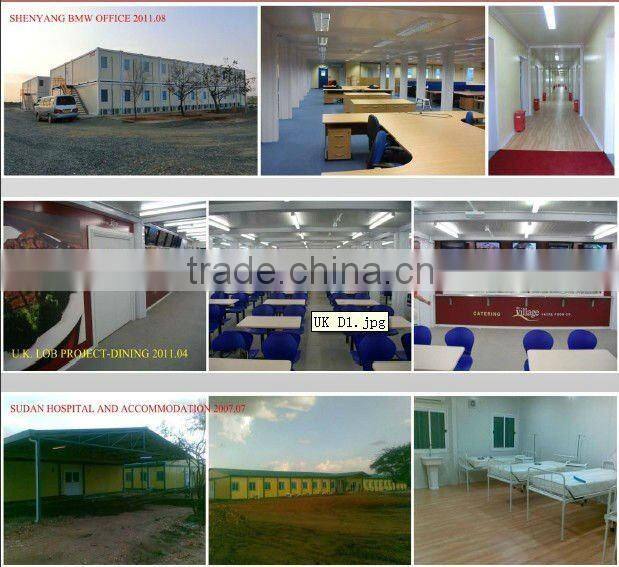

1.6 Our projects and experience
