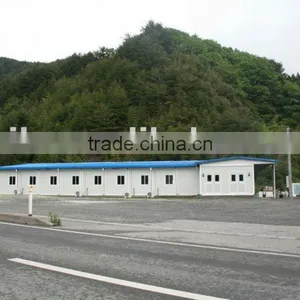

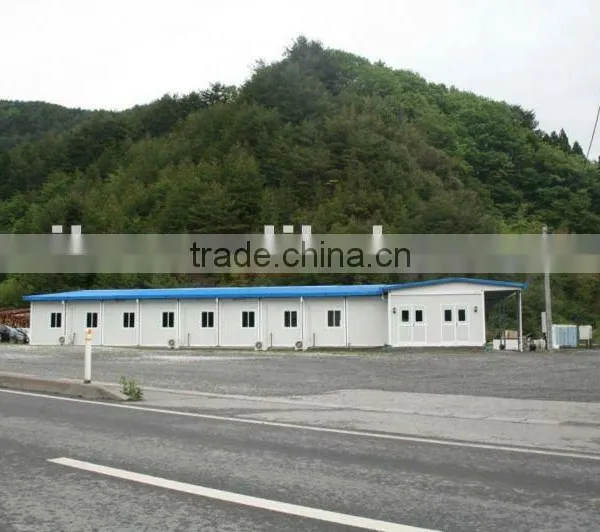

professional maunfacturer beaching plant
- 2000 Unit / Units per Month
- Shanghai
- T/T
- Integrated housing for outdoor residents
- Folding container house/integrated room/ 3000*2460*2510/mm
- Container house
- Container house
- Modular, steel structure plate, container assembly house, two-wing folding house, expansion house, movable board house.
- Apple Luxury House Cabin Outdoor Modern Popular Prefab House Mobile Working House Office Casa Capsula
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Cilc | Model Number: | 88935099 |
Material: | Container | Use: | Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant |
Product Description
Specifications
1.Certified by LPCB for CN31 ISO9001.14001 ABS2.10 years experience of modular container
3.40,000 square meters factory
beaching plant
1.1 Floor
frame construction: | - made of cold rolled, welded steel profiles, thickness 2,5/3 mm - 4 corner casts, welded - two fork lift pockets on the long side (apart from type 30') - inside clearance of fork lift pockets: 252 x 100 mm - fork lift pocket distance in centre: 2,050 mm1/2, optional: 950 mm, 1,650 mm or without fork lift pockets one of each package with one pair of fork lift pocket on bottom one - steel cross members with omega profiles, thickness = 2.5 mm - optional: double amount of floor cross members double amount of floor cross members with underpadding
| |
insulation: | CN-31 | MW 80MM insulation inside.120 kg/m3 rock wool insulated Or 80mm insulation EPS 38-40 kg/m³ |
CN-11 | PU 80MM insulation inside.38-40 kg/m3 polyurethane insulated Or 80mm insulation EPS 38-40 kg/m³ | |
insulation thickness: | 80 mm |
subfloor: 0.5 mm thick, galvanised steel sheets (subject to differing steel finish)
floor plates: | plywood board thickness 18 mm , or 18mm OSB flooring ( 100% E0 grade , moisture proof mothproof, anti-fire grade B2) |
cement-bound chipboard thickness 18 mm E1 in accordance to EN 717-1 fire behaviour A2-s1, d0 in accordance to EN13501-1 | |
floor cover: | vinyl floor cover thickness 1.5 mm LG Chem |
Option 1: vinyl floor cover thickness 2.0 mm Option 2 : Plywood floor Option 3 :aluminium checker plate thickness 3 + 1 mm |
1.2 Roof
frame construction: | - made of cold rolled, welded steel profiles, thickness 3 mm Q235A - 4 corner casts, welded - roof cross members made of steel Q235A 3 mm thickenss | |
cover: | galvanised steel plate with double rabbet, thickness 0.5 mm | |
insulation type: | CN-31 | MW 0.5mm galvanized painting steel both side and foaming polystyrene 40MM in the middle , colour: white in side and out side as ceiling , and insulated 60 mm EPS (density 38-40 kg/m³). |
CN-11 | PU 0.5mm galvanized painting steel both side and foaming polystyrene 40MM in the middle , colour: white in side and out side , and insulated 60 mm EPS (density 38-40 kg/m³). | |
insulation thickness: | 40 + 60 mm | |
Option ceiling sheeting: | coated chipboard 10 mm thick, white, E1 in accordance to EN 312, flame behaviour D-s2, d0 according to EN 13501-1 plasterboard with coated steel plate² 10mm thick, colour: white (similar RAL 9010) flame behaviour A2-s1,d0 according to EN 13501-1 | |
CEE connectors: externaly sunk into short sided container frame |
1.3 Wall panels
wall thickness 60 /100 (depending on insulation type) | ||
available items: | - full - door - window - air conditioning - sanitary window - half - double (only with windows or doors) - fixed glazing | |
external cladding: | corrugated, galvanised and coated steel sheet, thickness 0.6 mm | |
insulation type: | CN-31 | MW 60MM Mineral Wool (density 110 - 120 kg/m³) |
CN-11 | PU 60MM polyurethane (density 38-40 kg/m³) | |
insulation thickness: | 60 mm/ 100 mm | |
internal cladding: | galvanised steel sheet thickness 0.5 mm, light oak / white | |
Option internal cladding: | coated chipboard thickness 10 mm, light oak / white. E1 in accordance to EN 312, fire behaviour D-s2, d0 respectively Dfl-s1 in accordance to EN13 501-1 plasterboard with coated steel plate thickness 10 mm, colour: white (similar RAL 9010) flame behaviour A2-s1,d0 s1 in accordance to EN 13501-1
|
Wall panels - design combinations:
type | insulation | panel thickness | external cladding | insulation thickness | internal cladding | |
CN-31 | MW | 60 / 100 | steel sheet | 60 / 100 | - steel sheet | Option |
steel sheet | - double-sided coated chipboard( option ) - plasterboard with coated steel plate (option) | |||||
CN-11 | PU | 60 / 100 | steel sheet | 60 / 100 | steel sheet |
1.4 Factory
