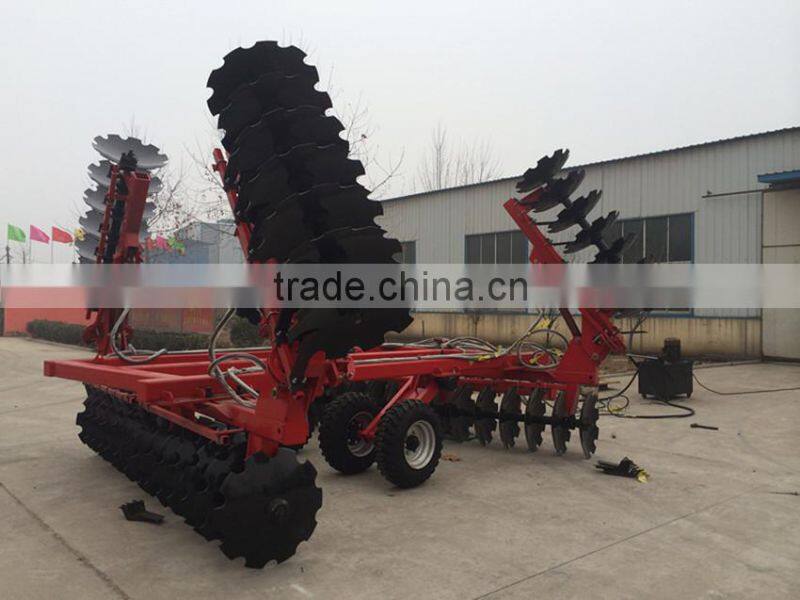

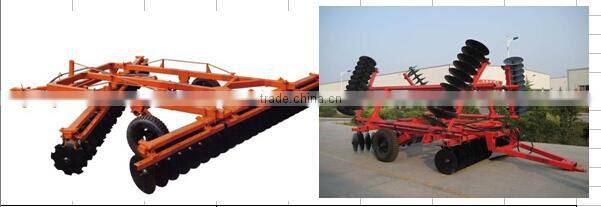

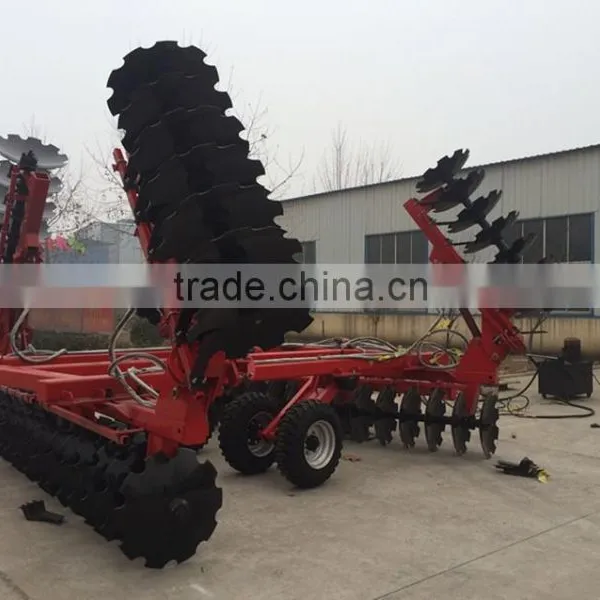

Wing-folded Heavy-duty Hydraulic Disc Harrow Cultivator

Wing-folded Heavy-duty Hydraulic Disc Harrow Cultivator photo-1

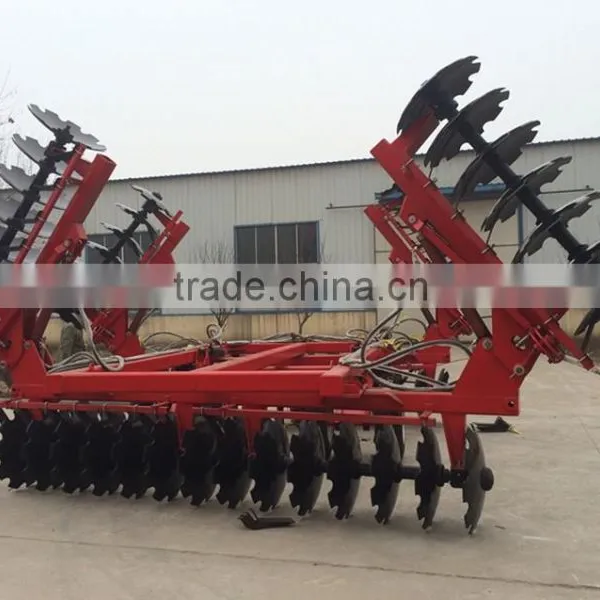

Wing-folded Heavy-duty Hydraulic Disc Harrow Cultivator photo-2
Wing-folded Heavy-duty Hydraulic Disc Harrow Cultivator photo-3
US$ 9,700 - 9,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Farm Cultivator
Power Type:
Other, trailed
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any port in china
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Farm Cultivator
Power Type Other, trailed
Power(W) 180-200hp
Certification ISO9001:2008
Warranty One year
Use Cultivator
Place of Origin Shandong, China
Brand Name ALI DISC HARROW
Model Number 1BTZ-7.8
Weight 1500-2300
After-sales Service Provided Engineers available to service machinery overseas



wing folding offset medium-duty disc harrow





Product Description



Product Description:

1BTZ Series Hydraulic Folding Offset Heavy Duty Disk Harrows, with super high strength harrow frames and discs, are specially used in large farm or pasture for superficial plowing, harrowing and shattering of clods, smashing and mixing crop residues or plant roots into soil as green manures, for preparation of soil before sowing. The disk harrow especially performs excellently in tougher soil condition.This series of disc harrows specially adopt hydraulic & tire mechanism to control cutting depth of harrow, and facilitate transportation during and after harrow working. Suitable for matching high power tractors.



Technique parameter:

• 42mm diameter round harrow shaft used, 290mm spacing between discs, matching 10.0/75-15.3 tires
• High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade
• Super heavy disk harrow, performing well in tough soil conditions, harrowing more thoroughly
• 140*140*10mm  tubular steel harrow beams used, more durable in harrowing work
• Large and thick 28’’×8 harrow discs used, fulfilling deep tillage requirements
• Wheels linked to hydraulic cylinder, facilitating harrow maneuvers, disc depth control and harrow transportation over long distance .
wing-folded heavy-duty hydraulic disc harrow cultivatorwing-folded heavy-duty hydraulic disc harrow cultivator


Packaging & Shipping

 wing-folded heavy-duty hydraulic disc harrow cultivator



Our Services

 wing-folded heavy-duty hydraulic disc harrow cultivator
