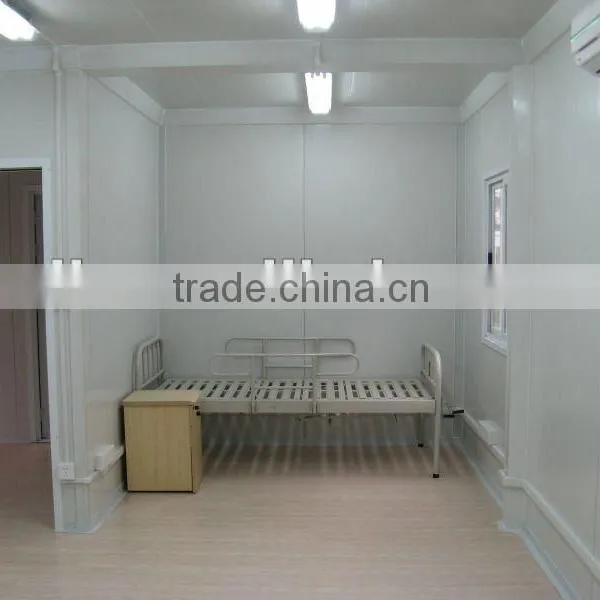

Sichuan earthquake project prefabricated dormitory building

Specifications

1.Certified by LPCB for CN31 ISO9001.14001 ABS
2.10 years experience of modular container
3.40,000 square meters factory

General information . prefabricated dormitory building .The following description relates to the finish/design and equipment of new office and sanitary cabins.Our cabins match the ISO-norm dimensions and have therefore many advantages of that system. They consist of a robust frame construction and interchangeable wall panels.
1.1 Dimensions (mm) and weights (kg):

Type	External			Internal			Weight (approx. specifications)
	Length	Width	Height	Length	Width	Height	BM	BU	SU
10’	2989	2435	2591 2700 2896	2795	2240	2275 2383 2580	1150 1350	1200 1200	1450 1550
16’	4885	2435	2591 2700 2896	4690	2240	2275 2383 2580	1600 1750	1550 1600
20’	6055	2435	2591 2700 2896	5860	2240	2275 2383 2580	1950 2000	1750 1800	2450 2550
24’	7335	2435	2591 2700 2896	7140	2240	2275 2383 2580	2300 2400	2050 2150
30’	9120	2435	2591 2700 2896	8925	2240	2275 2383 2580	2550 2800	2450 2500

* The mentioned dimensions and weights are valid for standard configuration (see 1.3.) and can vary depending on configuration and equipment.

1.2  Abbreviations

The following abbreviations are used in the document:

Office cabin with mineral wool insulation       BM

Office cabin with PU foam insulation             BU

Sanitary cabin with mineral wool insulation    SA

Sanitary cabin with PU foam insulation         SU

Mineral wool                                               MW

Polyurethane foam                                      PU

Internal height                                             RIH

External cabin height                                  CAH

Transpack (BM/BU in a package)                  TP

Toughened safety glass                              ESG

1.3 Standard configuration

 Office cabin 10‘

Office cabin 16‘

Office cabin 20‘

Office cabin 30‘

Sanitary cabin 10‘

Sanitary cabin 20‘



1.4 Load bearing capacity

floor load: ground floor: max. load capacity 2.0 kN/m² (200 kg/m²)

top floors: max. load capacity 1.5 kN/m² (150 kg/m²)

snow load: max. load capacity 1.0 kN/m² (100 kg/m²)

(equates to a typical snow load on the ground of sk1.25 kN/m² (125 kg/m²)

according to EN1991-1-3 with the national application document B1991-1-3)

wind load: 90 km/h [25 m/s] - terrain category III

When wind speeds are higher than 90 km/h (25m/s) additional safety

measures on the cabins need to be carried out (anchoring, screwing). Such

measurements are to be calculated by approved specialists taking into

consideration local standards and conditions.

All calculations were undertaken according to the European standards of ENV.

Higher load capacity upon request

China International Container Leasing Co., Limited ( CILC ) have 10 years experience in designing, producing, delivering, assembling and maintaining modular container (also named prefabricated container/ flat pack container).

Factory: Located in JiadingDistrict, Shanghai. We have 40,000 square meters workshop with nice and efficient production line. Our factory has been approved by ISO9001.

Capacity: 1800-2000 units per month.

Modular container can be used as accommodation, office, hospital, shop, sanitary, kitchen, storage and so on.

We can also provide ISO shipping container, Reefer, Fuel Tank Container, Storage Container, Shelter Container and various special containers to meet different demand.

Our main customers are from U.S military, U.K, NATO. UN,Middle East and Africa.

We have agent in Japan, Australia, South Africa.
