Help CenterAgricultural Machine Parts Disc Blade for Disc Plough/plow
Related Products
-
Agricultural Machine Parts Spring Steel Disc BladeUS$ 6 - 60MOQ: 500 Pieces -
2012 Hot Sale Agricultural Machine Parts 65Mn Disc Blade for Harrow or PloughUS$ 6 - 60MOQ: 500 Pieces
-
Agriculture Machinery Parts Flat Disc Blade for SaleUS$ 6 - 60MOQ: 500 Pieces
-
Agriculture Machinery Parts Flat Coulter Disc Blade for SaleUS$ 6 - 60MOQ: 500 Pieces
-
Tractor Harrow Disc Blades for SaleUS$ 6 - 60MOQ: 500 Pieces
Specifications
Specificationsdisc material:steel 65Mn;
disc HRC:38~45;
disc thickness:3~12mm
Products Description:
1. Material: 65Mn
2. HRC: 38~45
3. Diameter: 254~960mm
4. Thickness: 3~12mm

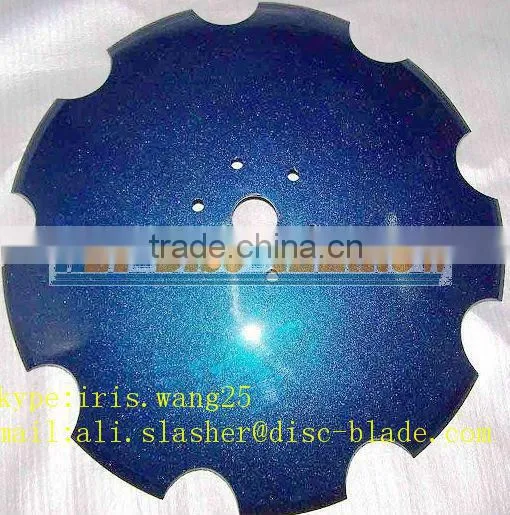

5. Edge type: plain, notched
6. Hole: square, round, or combined ones
Technical Data
Common Specifications of Disc
Diameter Concavity Thickness
Main Features:
Good Elasticity
High Hardness
Excellent Wear Resistance
Short Delivery time
Competitive price
Main manufacturing process:
(1) Cutting materials
(2) Heat treatment
(3) Pressure type
(4) Quenching
(5) Tempering
(6) Baking varnish
Common Specifications of Disc | |||
Dia. |
Concavity |
Thickness |
|
MM |
INCH |
MM |
MM |
255 |
10 |
12 |
3 |
305 |
12 |
19 |
3 |
330 |
13 |
25 |
3 |
355 |
14 |
38 |
3 |
410 |
15 |
38~50 |
3 |
430 |
17 |
57 |
3,4 |
460 |
18 |
38~60 |
3,4 |
480 |
19 |
57 |
3,4 |
510 |
20 |
44~63 |
3,4,5 |
535 |
21 |
63 |
3,4,5 |
560 |
22 |
60~85 |
4,5,6 |
585 |
23 |
75~90 |
4,5.6 |
610 |
24 |
75~95 |
4,5,6 |
660 |
26 |
86~115 |
5,6,7,8 |
710 |
28 |
100~130 |
5,6,7,8 |
760 |
30 |
120~135 |
6,7,8,10,12 |
810 |
32 |
120~140 |
8,10,12 |
910 |
36 |
120-200 |
8,10,12 |
960 |
38 |
120-200 |
8,10,12 |
chemical composition of our 65Mn steel
composition |
C |
Mn |
Si |
S |
P |
Ni |
Cr |
Cu |
Nb |
contents % |
0.62~0.70 |
0.90~1.2 |
0.17~0.37 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.25 |
≤0.025 |
__ |

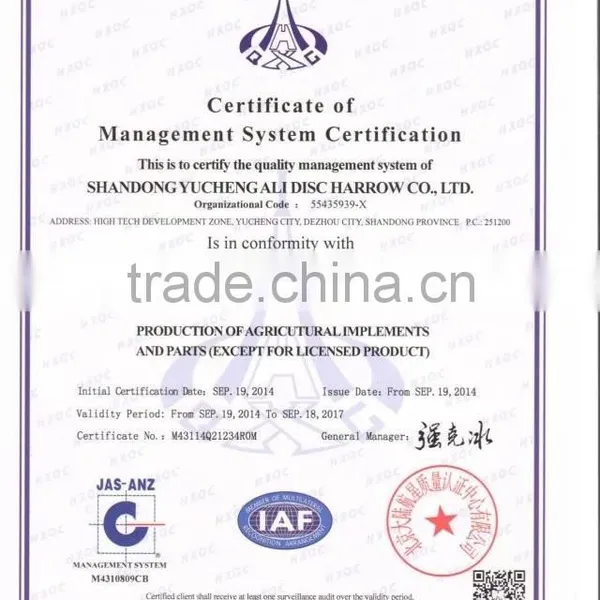

ISO 9001-2008
