Home > Products > UL/CUL approved class 2 transformer > With 2-year Warranty, chassis mount, front opening frame UL CUL CSA CE Class 2 60W 65W 75W Transformer 24Vac
With 2-year Warranty, chassis mount, front opening frame UL CUL CSA CE Class 2 60W 65W 75W Transformer 24Vac
USD $1 - $20
/ Piece
50 Pieces(Min.Order)
- 500 Piece / Pieces per Month
- Tianjin Shenzhen Guangzhou Shanghai
- T/T
You May Like
-
UL VDE, CE, ROHS approved shaded pole motor for freezer, refrigerator etc, with the world best price
-
CE, ROHS, UL, VDE approved PCB mounted electric transformer,
-
CE, ROHS approved common mode choke
-
CE ROHS, UL VDE approved, EI30/15.5 PCB mounted,encapsulated, 2.0VA-2.3VA 220V 12V transformer
-
CE ROHS, UL VDE approved, EI30/18 PCB mounted,encapsulated, 2.7VA-3.0VA 220V 12V transformer
-
CE ROHS, UL VDE approved, EI38/14 PCB mounted,encapsulated, 3.2VA-4.5VA 220V 12V transformer
Product Details
| Place of Origin | Tianjin, China | Brand Name | CAREL TECH, Class 2 60W 65W 75W Transformer 24Vac | |
| Model Number | Class 2 60W 65W 75W Transformer 24Vac | Usage | Power | |
| Phase | Single | Coil Structure | Other, EI, Class 2 60W 65W 75W Transformer 24Vac | |
| Coil Number | Autotransformer |
Product Description
With 2-year Warranty, chassis mount, front opening frame UL CUL CSA CE Class 2 60W 65W 75W Transformer 24Vac
Product Description
What is the Features of With 2-year Warranty, chassis mount, front opening frame UL CUL CSA CE Class 2 60W 65W 75W Transformer 24Vac?
- Frequency 50/60Hz
- UL130degree isolation system
- Many physical configurations
- Multiple primary windings can be series or parallel connected
- Split bobbin construction for high degree isolation and low leakage current
- 50VA 60VA 75VA 96VA heavy duty with circuit breaker
- Mounting, foot mount, dual threaded hubs, open frame, chasis or lead wires etc
- Operating temperature -30 to 140F
- MTBF, 100.000hours@77F
- UL approval NO: E467797

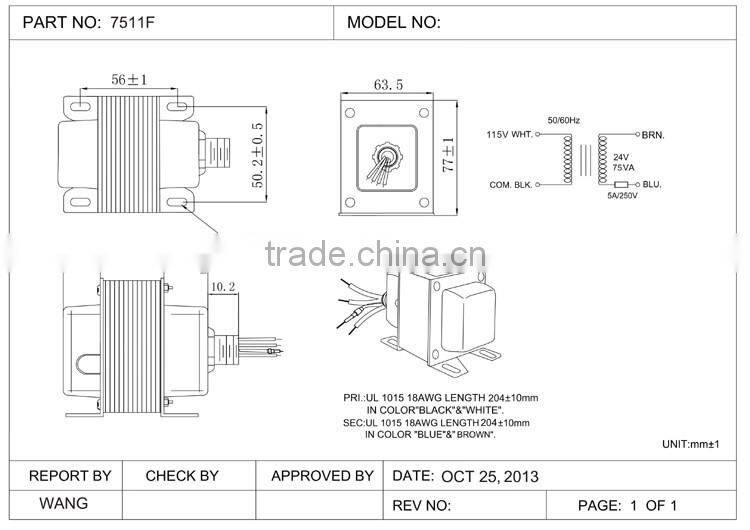

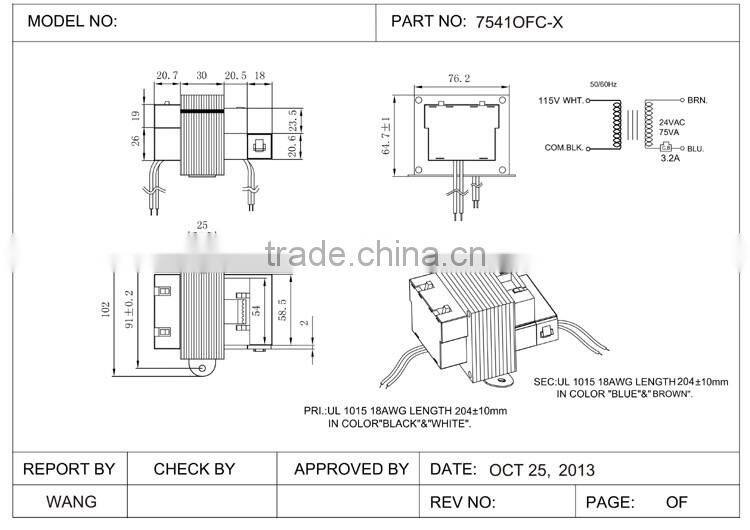

What is the Specifications of With 2-year Warranty, chassis mount, front opening frame UL CUL CSA CE Class 2 60W 65W 75W Transformer 24Vac?
Note: Because of limited space here, we can only upload a small portion of our Class 2 60W 65W 75W Transformer 24Vac . Please visit our web or contact us dirictly for more information

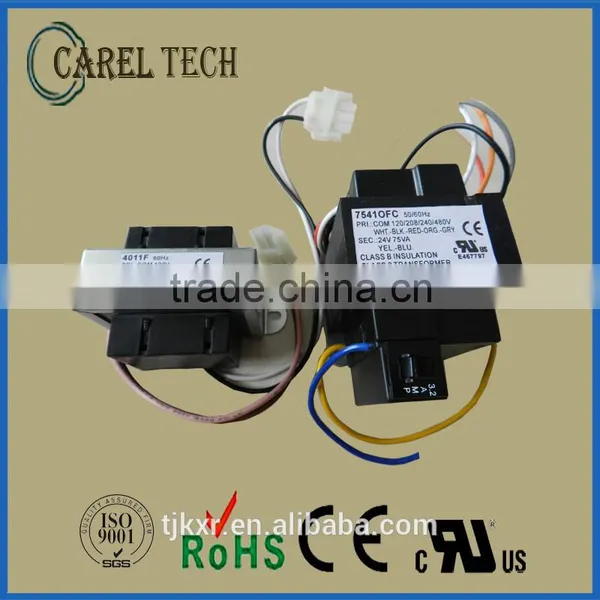

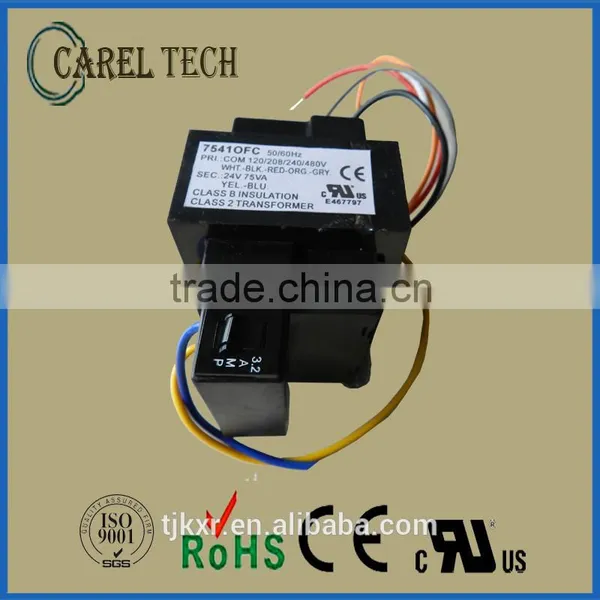

Product Photos( With 2-year Warranty, chassis mount, front opening frame UL CUL CSA CE Class 2 60W 65W 75W Transformer 24Vac )
Company Information
Company View, Certifications and Trade shows
Packaging & Shipping
Packing, Shipping and Trade terms
Our other products
Why Choose us?
- Inspected and approved by etc
- Over 35 years of experiences of transformer cores, transformers ,current transformers designing and producing
- 2-year product warranty to better protect our customer’s interests. If any quality problem occurred during the warranty period, we will either refund our customer or replace the faulty cargo and also bear the shipping cost
- 100% test every single product before shipment
- UL/CUL, CE, ROHS, ISO9001/2008
- We offer custom-made products. OME/ODM and customer label are all welcome!
- We deliver the quality you expect at consistently competitive price
- Product capacity, up to 8 million pieces per year
- We support alibaba “trade assurance”. Customer’s payment , product quality, delivery time will be all protected and guaranteed
- 24 hours English hot line 86-13207512928 for any product inquiry, sales, after sales services etc.
