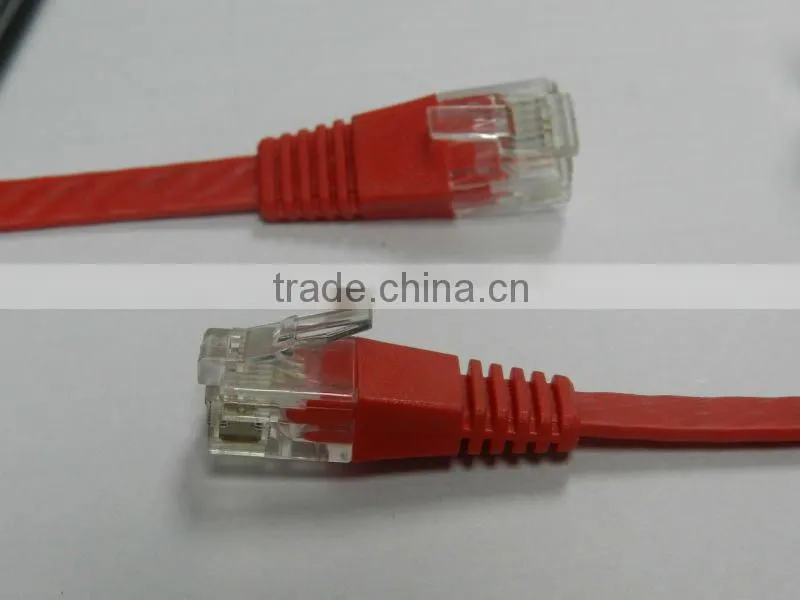

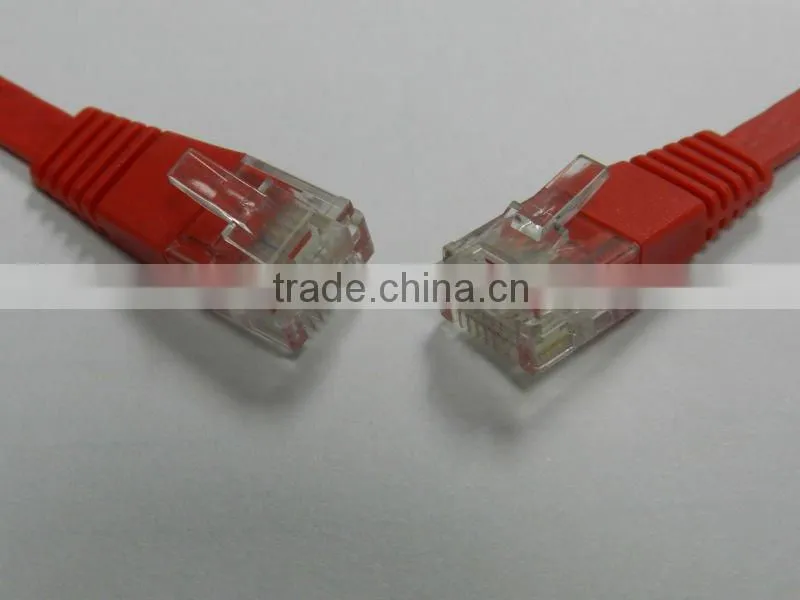

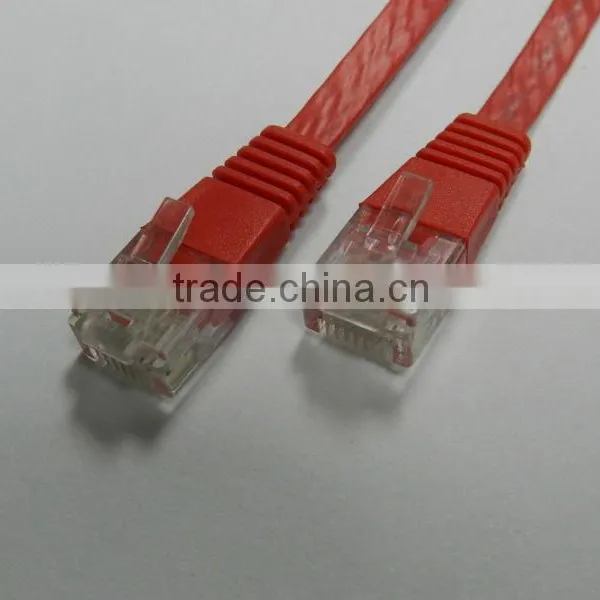

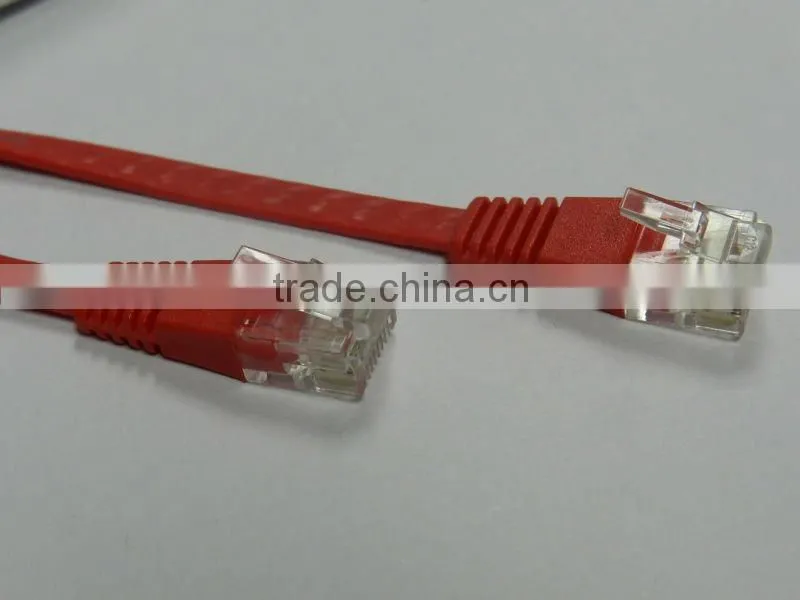

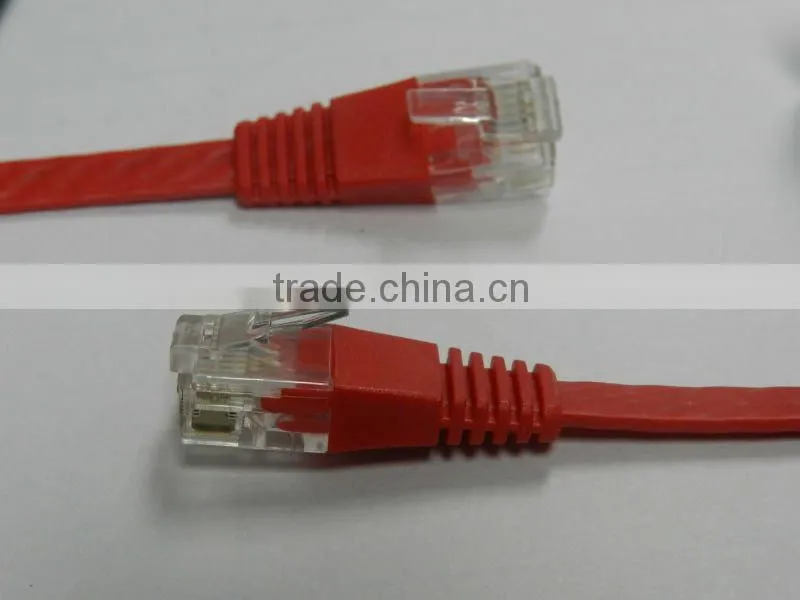

Help CenterRed Color 3FT Tinned Copper Cat6 UTP Lan Cable
Related Products
-
Cat 5e Network CableUS$ 0.15 - 10MOQ: 500 Pieces -
305m Cat5/5e/6 Network CableUS$ 0.09 - 0.64MOQ: 2000 Pieces
-
FLAT PATCH CORD UTP CAT6US$ 0.09 - 0.64MOQ: 2000 Pieces
-
Black Flat Patch Cord Cat5e/6/7 With RJ45 Network Cable Quality ChoiceUS$ 0.09 - 0.64MOQ: 2000 Pieces
-
PATCH CORD CAT5E UTP/SFP WITH RJ45US$ 0.09 - 0.64MOQ: 2000 Pieces
305M Tinned Copper Cat6 UTP Lan Cable
1)Specification: 4P+F
2) Rated Temperature: 60 or 75
3)Unshielded twisted pairs:
4)Conductor: 0.56MM Copper ,pass fluke test
5)Insulation: HD-PE/PE
6)Filler: PE Cross or FM-PE Thin slice
7)Unrip rope: optional
8)Jacket: PVC or LSNH PVC etc
9)Impedance:100±15%Ωat 1~250MHz
10)Reference standard: YD/T1019-2001ISO/IEC11801ANSI/TIA/EIA-568BUL 444
11)Print Legend: CM or CMR
Electrical Test
Conductor resistance at 20 ° C 9.38 Om/100 m
DC Resistance Unbalance 5%
Capacitive unbalance pair to ground 330 pF/100m
Impedance 0.772-100 MHz 85-115 Ohm
Maximum working capacity of 5.6 nF / m
Features
1.UTP (Unshielded Twisted Pair)
2.Cable conductor: TC, BC, CCA, CCS
3.Wire diameter: 0.48, 0.5, 0.51, 0.56 and 0.57mm
4.Jacket: PVC and LSZH (RoHS-approved)
5.Jacket colors: Black, D-gray, blue, green, white, yellow and orange
6.Length: 305, 200, 100m (customize)
7.OEM orders are welcome
Packing
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll.
2) Inner packing: Wooden reel, plastic reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
