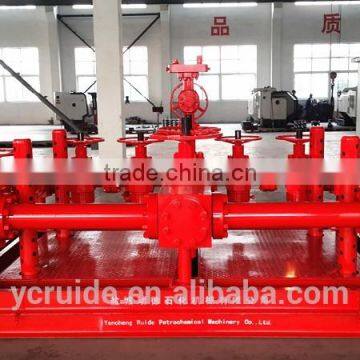

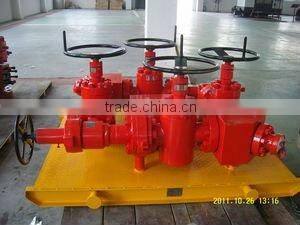

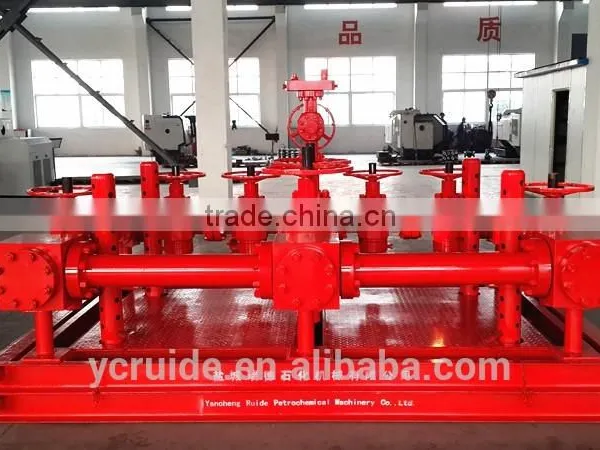

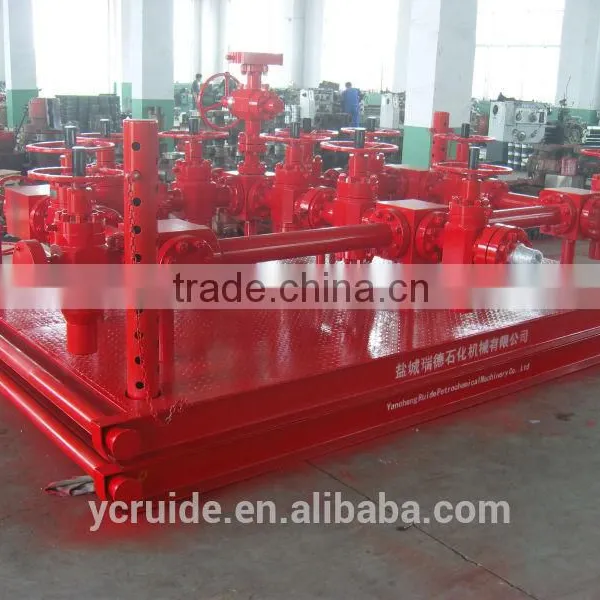

API 16 C Choke Manifold And Kill Manifold
1)WP:2000-15000psi
2)Nominal Bore:2-1/16" ~ 4-1/16"
3)Standard:API 16C
1.Application:
Choke manifold is necessary device to control the well kick successfully and execute the pressure control technology on oil/gas well in the course of drilling, as it is, the device is adopted to execute new drilling-well’s technique of balance pressure, which can avoid pollution of oil-layer, improve the speed of drilling and control blowout effectively. One end of the device connects with the side flange of BOP spool. When BOP closes, it can control the finite pressure from casing by adjusting the choke valve’s opening, so balanced drilling can work under minimum pressure-difference.
2. Configuration:
The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges and other components.
3. Working Principles
When the pressure inside the well rises, opening/closing the choke valves (including manual chokes, hydraulic chokes and positive chokes) on the choke manifold can allow the release of the fluid inside the well so as to control casing pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
4. Pressure Ratings:
The kill manifold is available in pressure ratings of 14MPa, 21MPa, 35MPa, 70MPa and 105MPa, and also can be available upon customer request.
5. Operating Instructions:
(1) The working pressure of all components on the choke manifold shall be compatible with that of the BOP stack used.
(2) The choke manifold shall be installed at the place where the operator can reach it easily. The pressure test must be performed prior to installation and the seat test pressure shall be equal to the rated working pressure.
(3) The line pipe shall be level and straight as much as it could. In case of the turn of the line pipe, the 120 degree steel bent pipe shall be used. The bore of the line pipe shall be large enough.
(4) The pressure gauge must be installed.
(5) In winter, the choke manifold can work under a low temperature condition.
Factory
Workshop
Warehouse
Our Warehouse is about 2000 square meters.
Production Equipment
80H CNC and GLU16X20 Gantry CNC
High quality
Helium gas detection
High quality
High quality
Tensile Yield stength test
Packing Details : Plywood case as per international standard
Delivery Details : 20 - 60 days after order (According to total quantity of products)
Our clients from Egpty visit our company on January, 2016.
Our clients from Cuba inspect the wellhead equipments for shipment in our company on January, 2016
The production director from USA National Oilwell Varco (NOV) inspects the products in our workshop.
Q: Are you trading company or manufacturer ?
A: We are one of the professional manufacturer for many years for petroleum machinery .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
If you have another question, pls feel free to contact with me.
.
