Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved

Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved thumbnail-1
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved thumbnail-2
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved thumbnail-3
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved thumbnail-4
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved thumbnail-5
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved thumbnail-6
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved photo-1
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved photo-2
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved photo-3
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved photo-4
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved photo-5
Miniature Open Style Toroidal Step Down Transformer, Transformer From 220V to 12V, 220V 24V Transformer With CE RoHS Approved photo-6
US$ 1 - 10 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
Carel Tech,step down transformer, transformer 220V to 12V
Model Number:
step down transformer, transformer 220V to 12V, 220V 24V transformer
Contact Supplier Request Quote Chat Now
Tianjin KXR Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port or others for step down transformer transformer 220V to 12V 220V 24V transformer
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Tianjin, China
Brand Name Carel Tech,step down transformer, transformer 220V to 12V
Model Number step down transformer, transformer 220V to 12V, 220V 24V transformer
Usage Power
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer
Product Description

  1. General description of 50VA 2*12V  toroidal core  step down transformer, transformer 220V to 12V, 220V 24V transformer



  • 110/230v 60Hz Primary;
  • Two secondaries 12v, 2.08amp, (No load 13.8v, 8ma),
  • 86% eff. For 110v supply power, primaries must be parallel; for 230v operation, primaries must be in series.
  • OD: 78.mm ID: 22.5mm x 35.mm H
2.  General features of toroidal core step down transformer, transformer 220V to 12V, 220V 24V transformer
  • Very Small size and low weight compared with traditional stacked lamination types.
  • Extremely low level of radiated magnetic field
  • Very low induced noise (hum)
  • Very low iron loss.
  • Double insulated primary leads.
  • 100% electrical and flash tested
    • Primary-Secondary test voltage 4.0 KV.
    • Tapped primary for 115V OR 230V.
    • Secondaries for parallel or series hookup.
    • Ambient operating temperature +60 °C
    • Maximum.Insulation Class A (105 °C)
    • Meets all requirements of Class E(115°C).

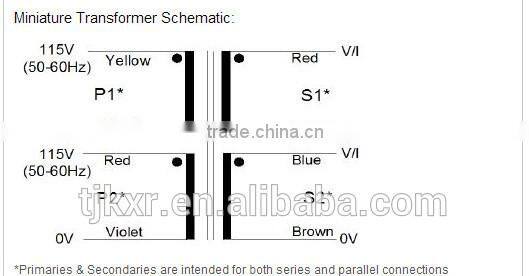

3.  toroidal core step down transformer, transformer 220V to 12V, 220V 24V transformer schematic

Miniature Open Style Toroidal Step Down Transformer, Transformer from 220V to 12V, 220V 24V Transformer with CE RoHS Approved

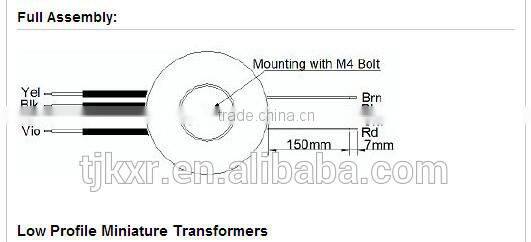

4. Full assembly of toroidal core step down transformer, transformer 220V to 12V, 220V 24V transformer

Miniature Open Style Toroidal Step Down Transformer, Transformer from 220V to 12V, 220V 24V Transformer with CE RoHS Approved



5. Details of toroidal core step down transformer, transformer 220V to 12V, 220V 24V transformer

Miniature Open Style Toroidal Step Down Transformer, Transformer from 220V to 12V, 220V 24V Transformer with CE RoHS Approved





Packaging & Shipping

  toroidal core step down transformer, transformer 220V to 12V, 220V 24V transformer  Packing

  Strong cartons on plastic pallets.

Miniature Open Style Toroidal Step Down Transformer, Transformer from 220V to 12V, 220V 24V Transformer with CE RoHS Approved





Our Services

1) We supply our customers free samples and generally toroidal core step down transformer, transformer 220V to 12V, 220V 24V transformer ' samples can be finished within one week. But our customers will be required to pay for the samples shipping charge to customer's destination

2) We give our customers 2-year product warranty to better protect our customers' interests

3) 24 hours english hotline, 86-13207512928, for any product inquiry, after sales service or technical issues.

4) OEM and ODM are welcome

5) Factory visiting are warmly welcome
