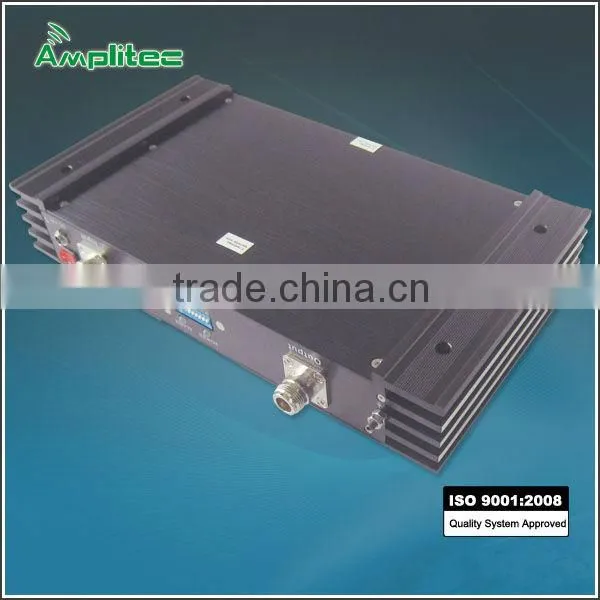

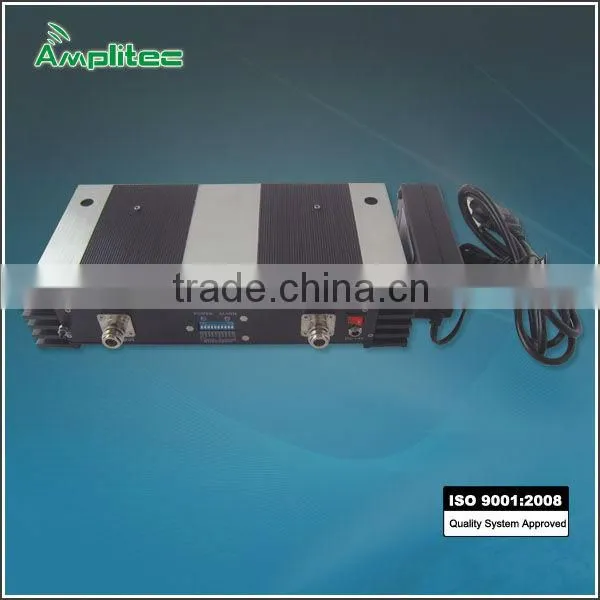

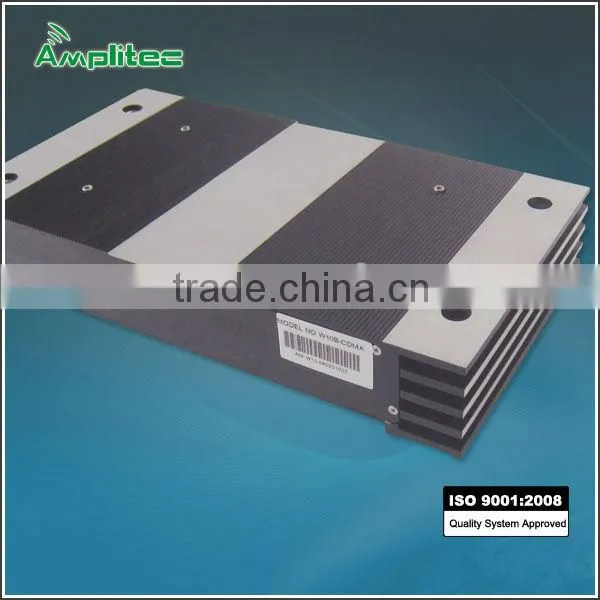

Product Name: W20 Band Selective 20dBm CDMA Repeater
Product Model: W20-CDMA
Product Code: CXT1108-003
- Provide quick coverage solution for weak & blind CDMA 800 MHz mobile signal zones, reduce drop/off calls.
- Compact size, micro, elegant design, easy installation and operation.
- Low consumption, low interference to BTS, high linear design.
- Reduce cellphone transmit pwoer and radiation, extend cellphone battery life.
- Use advanced high linear IF saw filter technology.
- ALC can limit output power to ensure stable CDMA mobile phone signal coverage.
- MCG(Manual Gain Control) function to ensure flexible coverage.
- Apply to approximate 200-16000 square meters coverage.
- Perfect Indoor Repeater solution of CDMA 800MHz mobile signal extender.
1) DC power supply 1PCS
2) AC power cord(EU standard/ US standard/UK standard/ SA standard/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User Manual 1PCS

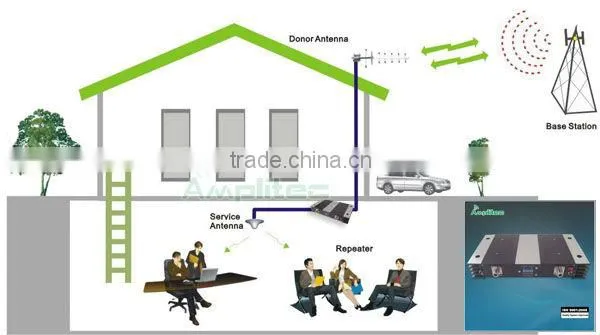

1) Donor antenna: Log Periodic Dipole Aantenna (8.2dBi@806-960MHz)
2) Service antenna: Omni Ceiling Antenna (2dBi@824-960MHz)
1) Output power for 10,15, 17, 27dBm, 1-sub band in any one of GSM,CDMA system.

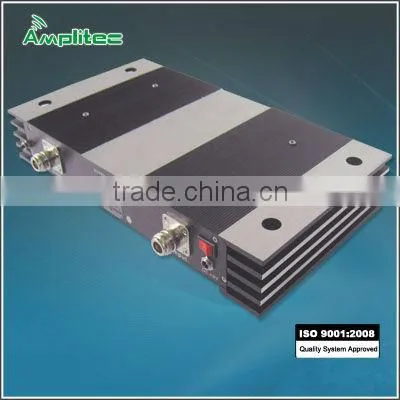

2) Repeater models: W20-CDMA, W20-GSM, W15-GSM(01), W27-CDMA(01), W10-CDMA(01).
Items |
Uplink | Downlink | |
| Frequncy Rage | CDMA | 824-849 MHz | 869-894 MHz |
| Bandwidth | Availale upon request | ||
| Gain | 65 ± 3dB | 70 ± 3dB | |
| Output Power | 15 ± 2dBm | 20 ± 2dBm | |
| AlC not Active | - | • Green | |
| ALC Acive 5-10dB | - | • Orage | |
| ALC Active 15-20dB | - | • Red | |
| Power Consumption | < 20W | ||
| Power Supply | DC:9V/3A | ||
| RF Connector | N-Female | ||
| Weight | ≤2.5kg | ||
| Size | 295 × 160 × 50mm | ||
| Environment condition | IP40 | ||

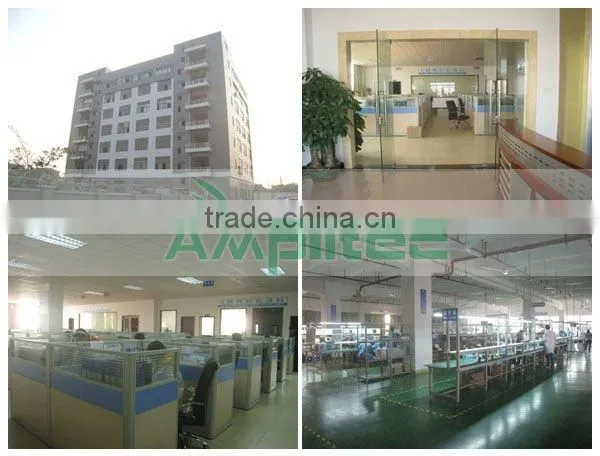

Amplitec Corporation, a manufacturer was established in 2005 year, is in the forefront of Wireless revolution. With solid track record of successful development and deployment of advanced radio communication technologies, Amplitec is enabling operators worldwide for transition to a phenomenon of "seamless coverage".
Amplitec develops reliable indoor and outdoor coverage and optimization mobile signal repeater and booster's solutions for offices, restaurants, hotels, commercial centers, countryside, residential areas,tourist resorts, and stadiums on various GSM850, GSM900, GSM1800, GSM1900, CDMA800 PCS1900, IDEN, EGSM networks as well as WCDMA, 3G and TD-SCDMA systems.
