Electric lifting column Square lifter

Lifting column principle

Lifting column principle

The lifting column aluminum lift is a new generation of aluminum alloy lift platform products, Dual Column aluminum lift are the same as with a the domestic new high-strength aluminum alloy for the raw material, has high strength, deflection and swing minimal. Aluminum alloy lightweight rugged features, platform lift can play the highest lift capacity in a very small indoor space that is simple and easy to install, so the job becomes easy. It is tipped device lifts, reduced height allows condensation in ensuring highly premise, easy the low foyer through and store. Single column lift aluminum alloy with a high and low lift balance, easy to operate, can enter the general hall, free and out of the elevator and less power consumption, pollution-free, not to hurt the ground work, and can be used for wall-work and stuck his job, working no dead ends. The application of occasions: factories, hotels, buildings, shopping malls, railway stations, airports, stadiums and have healthy decoration.

Mobile aluminum lift

The new design of a new generation of products, the use of a new type of aluminum extrusions, profiles high strength, deflection lifts and swing very small. Its light appearance, can play in a very small space within the maximum lifting capacity. Single aerial work a breeze can move jobs. The new design of a new generation of products, the new alloy extrusions, due to the high strength of the material, so that the deflection lifts and swing very small. Its light appearance, can play in a very small space within the maximum lifting capacity. Single aerial work a breeze can move jobs.

lifting column Features and use:

1) lifting column Use

for a variety of different specifications of the size of the LCD TV. The product is widely used in hotels, yachts, multimedia conference rooms, exhibition halls, can also be embedded in bookcases, file cabinets, boxes and other home theater is an excellent home office equipment, When you want to enjoy TV programs through the TV remote control or hand control will automatically rise up from inside the TV cabinet.

2) lifting column Selection of materials

made 601 pure aluminum alloy of high quality steel to the same optical axis together with precision linear guides and linear bearings that run quieter.

3) reasonable structure

beautiful modeling. Easy to use, flexible, reliable, durable and have anti-theft, dust protection.

4)Product Description:

Lift work platforms for a variety of high column movements and the development of a product, telescopic range, smooth operation can be achieved with the rise in two down the same effect.

5) Voltage:

24VDC/12VDC permanent magnet DC linear actuators.

6)Standard stroke:

150,200,250,300,350,400mm(option)

7) Designs:

Special trip designed according to your requirements.

8) Thrust:

4000N, 2000N

9) Rated load speed:

10mm/S (2000N)

10) Ambient temperature:

-25 °C -65 °C

11) Standard protection class:

IP54

12) Travel switch

Built-in limit switches, not adjustable after leave factory.

13) noise design

the noise level below 50dB (A).

14) Safety Certification:

CE.ROHS

15)Size calculation:(HTJC600-2S Model)

Stroke +150 =Minimum height + Stroke = Maximum height

16)Size calculation:(HTJC600-3S Model)

Stroke ÷2+200 =Minimum height + Stroke = Maximum height

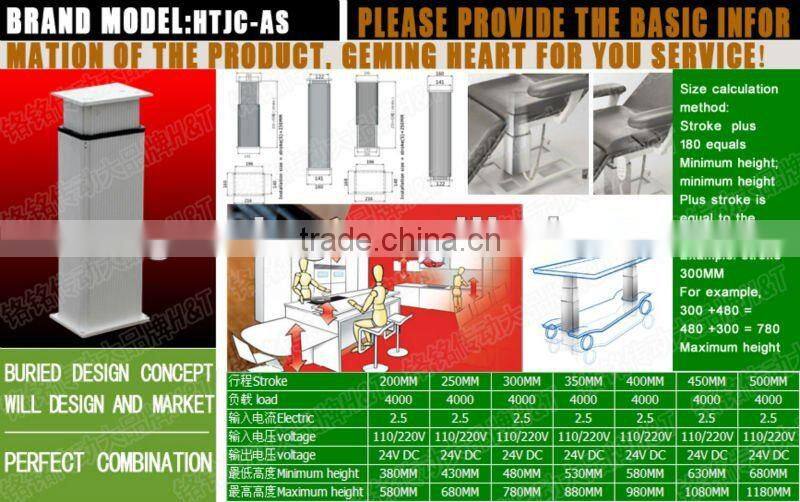

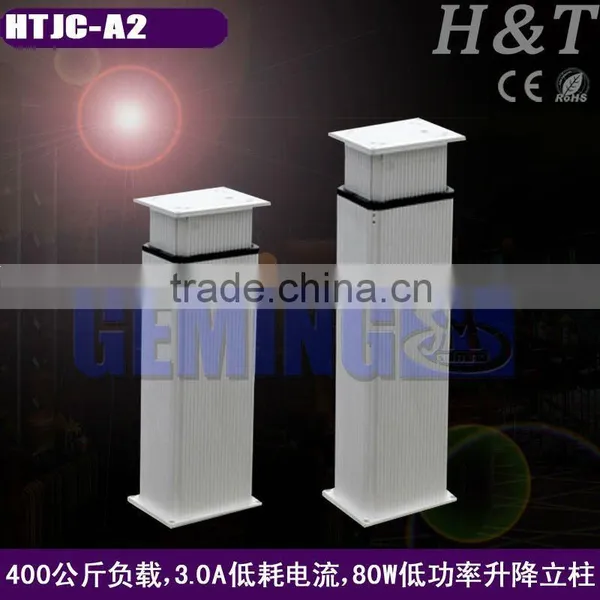

17)Size calculation:(HTJC-A2 Model)

Stroke +180 =Minimum height + Stroke = Maximum height
