12V/24V/36V48V DC Electric Linear Actuator

Combinations of components (Linear Actuator)

The Linear Actuator parts are as follows:

1) Linear Actuator:

(ABS plastic shell, stainless steel tubes, micro-switches, circuit boards, bearings, micro motor, reduction gear, screw, nut, bushings, putter, slide, spring, and nylon turbine) and other components.

2)controller:

(ABS plastic shell, transformers, circuit boards, electronic components,),.

3)Handle:

(ABS plastic shell, PCB, micro-switches, electronic components) and other components.

Linear actuator Working Principle

Motor through a gear reducer, drive a screw nut. The rotational movement of the motor into a linear motion, and the use of motor reversing complete plunger action. Such as the action of the lever, joystick or rod body rotation, shaking complex. By change lever arm length, can increase or increase the stroke. Stroke control device

Driven turbine to rotate the motor gear on the scroll, so that the screw for axial movement within the turbine, driven by the link plate stopper rod accordingly to move axially to the desired stroke, by adjusting the stopper depressed stroke switch power off, the motor stops running (the same positive and negative control).

Model:

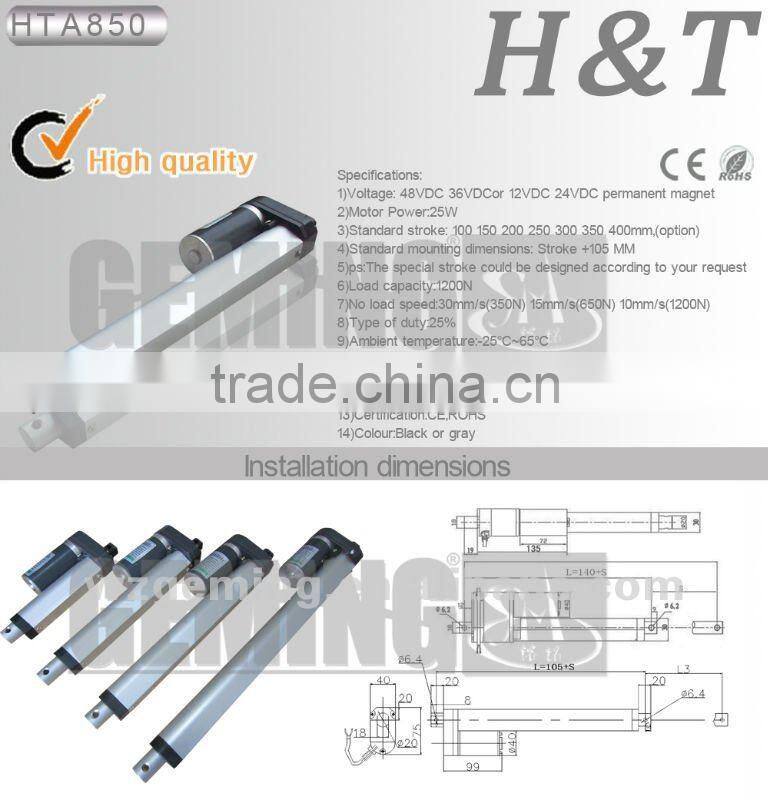

HTA850

Usage: Boat, Car, Industrial machinery, windows, cleaning cars,, Other

1)Voltage:

48VDC 36VDCor 12VDC 24VDC permanent magnet

2)Motor Power:

35W

3)Standard stroke:

100 150 200 250 300 350 400mm,(option)

4)Standard mounting dimensions:

Stroke+105MM (Potentiometer)

5)ps:The special

stroke could be designed according to your request

6)Load capacity:

850N

7)No load speed:

30mm/s(300N) 15mm/s(600N) 10mm/s(850N)

8)Type of duty:

25%

9)Ambient temperature:

-25°C~65°C

10)Protection class:

IP54

11)Built-in limit

switches,not adjustable after leave factory

12)Low noise design,

db<53

13)Certification:

CE,ROHS

14)Colour:

Black or gray
