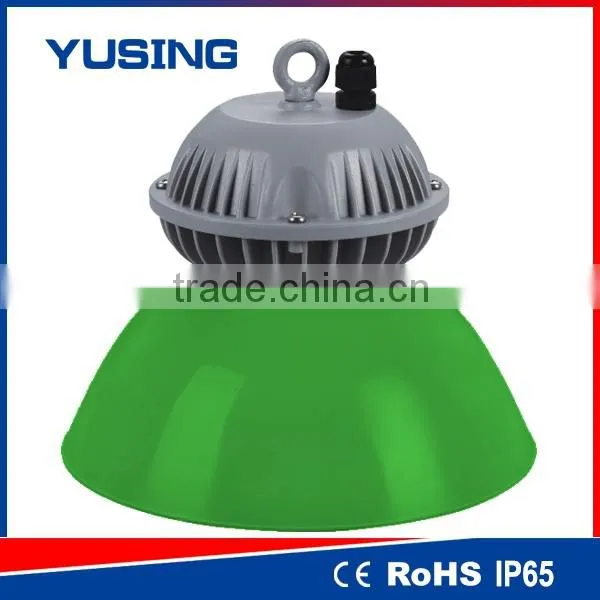

Easy Installation COB 20W UL LED High Bay Light Housing

Easy Installation COB 20W UL LED High Bay Light Housing thumbnail-1
Easy Installation COB 20W UL LED High Bay Light Housing photo-1
US$ 10 - 200 MOQ: 50 Pieces
Key Specifications
Get Latest Price
LED Light Source:
COB
Warranty(Years):
2
Input Voltage(V):
AC85-265V
Contact Supplier Request Quote Chat Now
Ningbo Yusing Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source COB
Warranty(Years) 2
Input Voltage(V) AC85-265V
Lamp Power(W) 20
Lamp Luminous Flux(lm) 1600
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, 2700-6500K
Working Temperature(℃) -45, 55
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CE, EMC, LVD
Place of Origin Zhejiang, China
Brand Name YUSING
Model Number HL01-20W

Easy Installation COB 20W UL LED High Bay Light Housing



Easy Installation COB 20W UL LED High Bay Light Housing

Easy Installation COB 20W UL LED High Bay Light Housing


Data
Code. Voltage
(V)		 Wattage
(W)		 Color Temp.
(K)
 Lumen
(lm)		 Size
(mm)
HL01 AC 85-265V 10W 2700-6500K 800lm Ø203x174mm
HL01 AC 85-265V 20W 2700-6500K 1600lm Ø254x210mm
HL01 AC 85-265V 30W 2700-6500K 2400lm Ø305x246mm
Easy Installation COB 20W UL LED High Bay Light Housing
Easy Installation COB 20W UL LED High Bay Light Housing

Advantages
  • Good light quality and good heat dissipation;
  • High reliability;
  • Low maintenance cost;
  • Easy installation with no ballast & starter needed;
  • Energy saving with low power consumption;
  • Green and eco-friendly lighting source without mercury or lead;
  • 50,000 hours operating lifetime, and 5-year warranty time.
  • Operating temperature range: from -45°C to 55°C.
  • Does not produce UV rays that harm people’s eyes.
  • The light from the LED retrofit conversion kits does not attract insects.
  • Directional light means no light pollution, dark sky compliance.
  • Optic lenses are available for projects, like 60°, 90°, 120°
Features
  • The highbay light use single integrated high power LED as light source, unique design of integrated LED module and imported high brightness semiconductor chips, it has the characteristic of high thermal conductivity, tiny Lumens depreciation, pure light color, no ghosting, etc.
  • The unique design of heat sink can reduce the temperature of lamp body and guarantee the live time of light source and power.
  • The surface of the heat sink using anodizes anti-corrosion treatment, the structure is compact and fashionable, also with good anticorrosive, waterproof and dustproof.
  • The energy saving effect is obvious, the high power ELD light source is equipped with imported high efficiency power, compared to sodium lamp, it can save energy more than 70%.
  • Green environmental protection without lead, mercury and other pollution elements, no pollution to the environment.
  • High color rendering, with various colors temperature for choice, can meet the needs of different environments.
  • The lamp with constant current and constant voltage, suitable for wide voltage AC85-265V.
  • 6 colors for choice, easy installation, convenient disassembly, wide application scope.
Typical Applications
  • Workshop;
  • Storages;
  • Factories;
  • Shops;
  • Restaurants;
  • Garages;
  • Supermarket, etc.
How do LED high bay light retrofit kits replace Metal halide or sodium bulbs?
  • 30W LED retrofit kits can replace 100W Metal Halide or HPS bulbs.
  • 75W LED retrofit kits can replace 250W Metal Halide or HPS bulbs.
  • 120W LED retrofit kits can replace 400W Metal Halide or HPS bulbs.



Easy Installation COB 20W UL LED High Bay Light Housing

Product Details

 Easy Installation COB 20W UL LED High Bay Light Housing

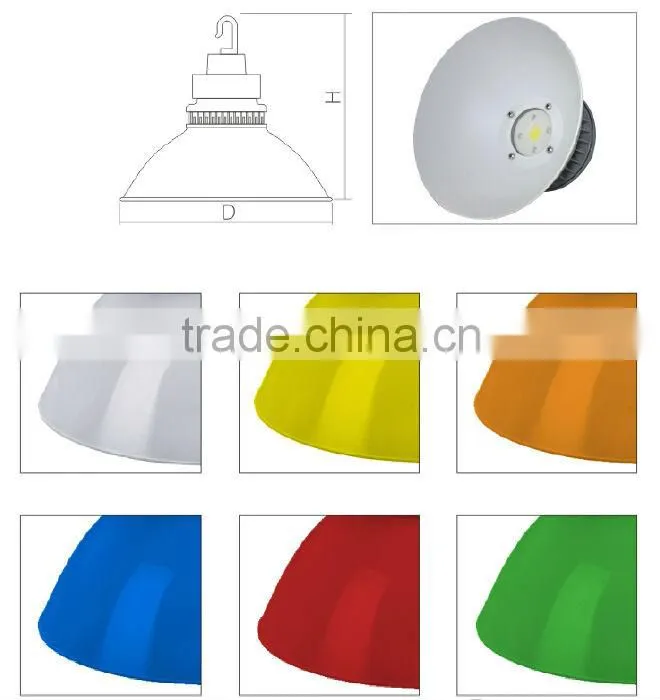

The Cover of each model has six color for reference:

Easy Installation COB 20W UL LED High Bay Light Housing

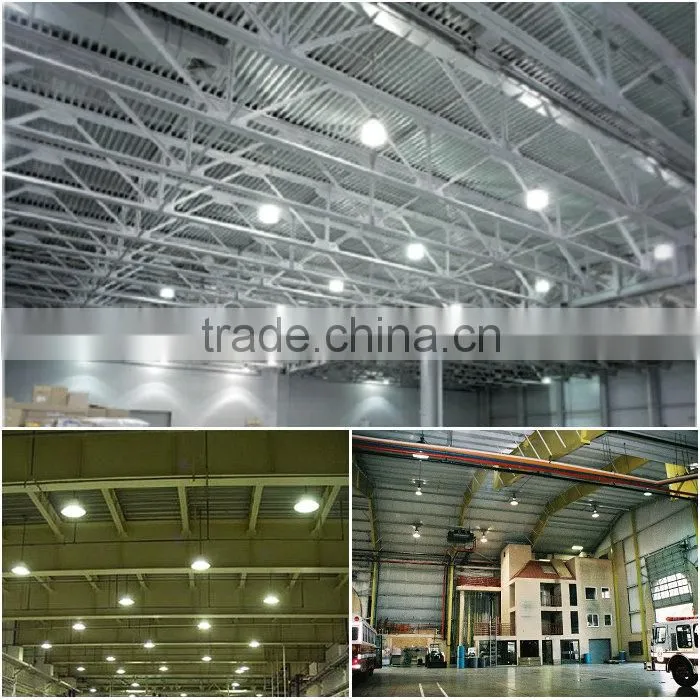

Application Picture

Easy Installation COB 20W UL LED High Bay Light Housing



Easy Installation COB 20W UL LED High Bay Light Housing





Easy Installation COB 20W UL LED High Bay Light Housing



    Established     2002
     Location     No. 1199, Mingguang Road, Jiangshan Town,
    Yinzhou District, Ningbo City, Zhejiang Province, China
     Staff     Over 600
     Product Range

    Lighting sources & Accessories, Intelligent & Electronic Products;

    Household & Hotel lights, Functional & Portable lights;
    Office & Commercial lights, Decorative & Advertising lights;
    Building & Road lights, Urban & Outdoor lights.
     Exhibition & Fair     Canton Fair(Spring Edition) 2014
    Canton Fair(Autumn Edition) 2014
    HKTDC Hong Kong International Lighting Fair (Spring Edition) 2014
    HKTDC Hong Kong International Lighting Fair(Autumn Edition) 2014
     Market     Eastern Europe, Western Europe, Northern Europe,
    Southern America, Northern America, Latin America
    The Middle East, Southern Africa
    Australia, Southern Asia
     Value of Export     Over 80 million in 2012



Easy Installation COB 20W UL LED High Bay Light Housing


  • We are assessed supplier by TUV & Alibaba.
  • Quality control and delivery time is strictly controlled.
  • Flexible payment terms, T/T, L/C, D/P, West Union and so on.
  • Our own professional design team and transport team.
  • Our own professional laboratory and advanced testing equipment.
  • 2,000m2 showroom in Ningbo to satisfy your requirement.
  • Over 600 experienced professional staff.
  • One-stop sourcing service.
  • High reputation.
  • MOQ for each item is only 5-20ctns.
  • Provide international certifications authorized by CE, RoHs of EU,  GS, EMC of Germany, FCC, SAA, ETL of America and Canada.


Easy Installation COB 20W UL LED High Bay Light Housing




•  Fund service



•  Following service

  1. Reserve hotel and pick up service in the airport.
  2. Professional team work with you in China market.
  3. Bargain with factory.
  4. Translate& interpret for you,keep record, take picture, and prepare the full lists.
  5. Our professional staff arrange purchasing to factory.

•  Inspection service

  1. Our professional QC team will inspect the goods for every cargo.

•  Shipping service

  1. Booking container, and arranging the shipment.
  2. Making shipping documents.

•  Value-added service

  1. We keep recommending new items for customers.

Easy Installation COB 20W UL LED High Bay Light Housing

Easy Installation COB 20W UL LED High Bay Light Housing
