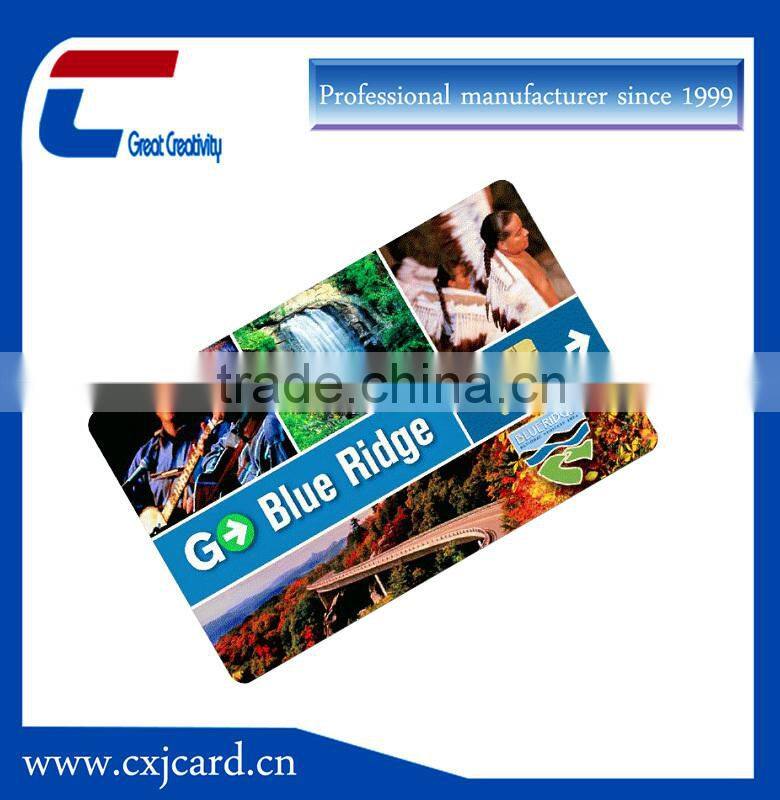

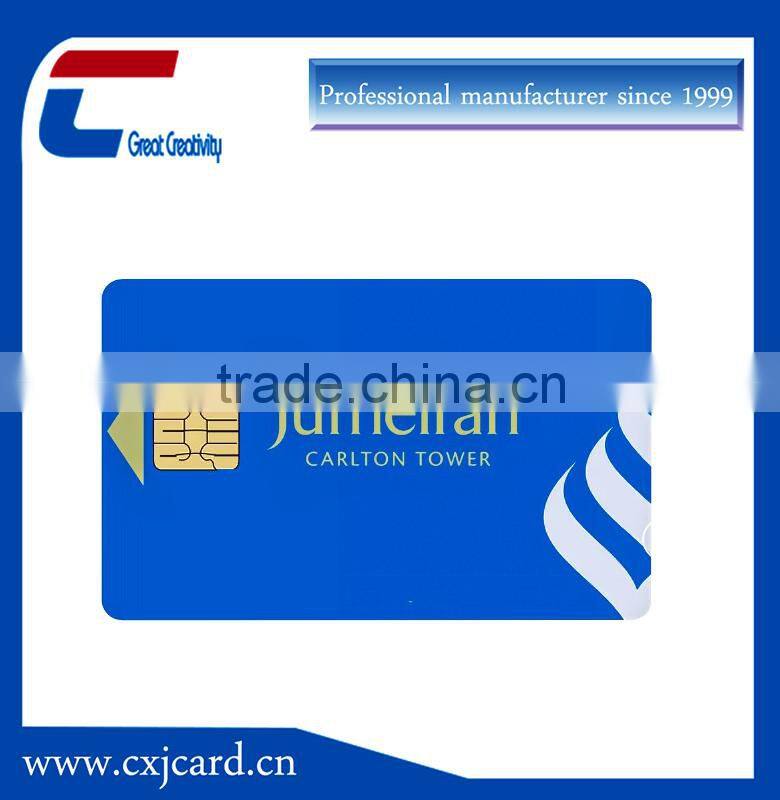

Is07816 Smart Pay Ic Card
| Item | Plastic Card Ic Card |
| Material | Paper, PVC or ECO material PET or ABS |
| Dimension | ISO standard size CR80 85.5X54mm(3.375*2.125 inch) |
| Custom size and shape is also available | |
| Thickness | ISO 0.84mm |
| 0.76-1mm is available | |
| Card surface | Glossy, matte or frosted |
| Printing | CMYK full color printing, silk printing or digital printing |
| Antennas | Aluminum or copper antenna |
| Contact IC chip model: | ||
| Brand Name | Chip Type | Specification |
| Siemens | SLE4442/5542 |
256bit encryption card,can read data,write data and password, protect data and write password. |
| ISO 7816 Compliant pad locations | ||
| 256*8 bit EEPROM organization | ||
| byte-wise addressing | ||
| Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31) | ||
| 32*1 bit organization of protection memory | ||
| 2-wire link protocol | ||
| Answer to reset according to ISO standard 7816-3 | ||
| Programming time 2.5mS per byte for both erasing and writing | ||
| Minimum of 10000 write/erase cycles | ||
| Data retention > 10 years | ||
| Programmable Security Code (PSC) | ||
| Data write only after correct 3-byte PSC | ||
| SLE4428/5528 | ISO 7816 Compliant pad locations | |
| 1024*8 bit EEPROM organization | ||
| byte-wise addressing | ||
| Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31) | ||
| 32*1 bit organization of protection memory | ||
| 2-wire link protocol | ||
| Answer to reset according to ISO standard 7816-3 | ||
| Programming time 2.5mS per byte for both erasing and writing | ||
| Minimum of 10000 write/erase cycles | ||
| Data retention > 10 years | ||
| Programmable Security Code (PSC) | ||
| Data write only after correct 3-byte PSC | ||
| Shanghai Fudan | FM4442 |
256bit encryption card,can read data,write data and password, protect data and write password.(compatible SLE4442) |
| FM24C16 | 16Kbit | |
| FM4428 |
1024bit encryption card,can read data,write data and password, protect data and password operation.(compatible SLE4428) |
|
| Shanghai Beiling | BL7442 | 256bit |
| BL24C04 | 4Kbit | |
| ISSI | ISSI4442 | 256bit |
| ISSI24C16 | 16Kbit | |
| ISSI4428 | 8Kbit | |
| ATMEL | AT24C01 | 1Kbit(stop production) |
| AT24C02 | 2Kbit | |
| AT24C04 | 4Kbit | |
| AT24C16 | 16Kbit | |
| AT88SC102 | 1Kbit | |
| Craft Option | Barcode, magnetic stripe, injket number, thermal number, laser number, embossing, hot stamping, signature panel, glossy lamination, hologram, UV spot, golden or silver background, scratch off panel, hole punching etc, QR code printing |
| UID Code |
Printing or laser numbering Decimal positive and inverse code Hexadecimal positive and inverse code |
| Working Temperature | -25 degree to +50 degree |
| Reading & Writing distance | -2cm -5cm for LF & HF / 1m-6m(UHF), (Relative with reader) |
| Application |
Mobile phones Ticketing & monetary transactions Turnstiles Vender Loyalty system for promotion -Parking meters -E-Payment Mobile payment , Paypal, Google Wallet, Ticketing, Boarding pass, Point os sale, Coupons, Tou guide, Turnstiles, etc. Gaming & Toys |
| Package |
For ISO CR80 size cards : White Box: 6X 9.3 X 22.5 cm, 200pcs / box Carton: 14.8 X 24.5 X 50cm, 10 Boxes / CTN. or on demand. 7 KG / 1000PCS |
| G.W | For ISO CR80 standard cards : 10Boxes / CTN. or on demand. 7 KG / 1000PCS |
| Sample Availability | Free sample for Plastic Card Ic Card before order is available at any time |
| Other Information: | |
| Monthly Output | 30,000,000pcs |
| Price term | FOB, CIF, CNF, and EXW Factory |
| Payment term |
We can accept Paypal or Escrow for sample order or small amount 50% T/T or Western Union deposit in advance, and 50% balance before shipment We also can accept l/c for T5577 Card bulk order |
| Lead Time |
Sample order : 2-3 days after order comfirmed Quantity less than 500,000pcs : 7-10 days after order comfirmed Quantity over than 500,000pcs : 12-15 days after order comfirmed |
| Warranty | We can offer re-make free for Plastic Card Ic Card if any quality problem |
| Other related keywords | |
| Disclaim | The showing picture of Plastic Card Ic Card is only for your reference of our products . All related to intellectual property rights of trademark belong to trade mark companies |
---------------------------------------------------------------------------------------------
