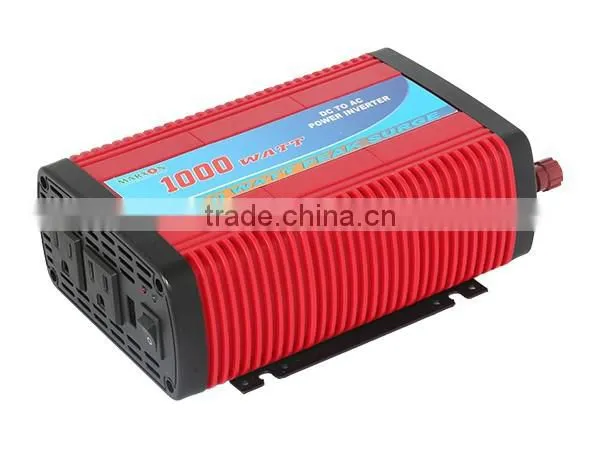

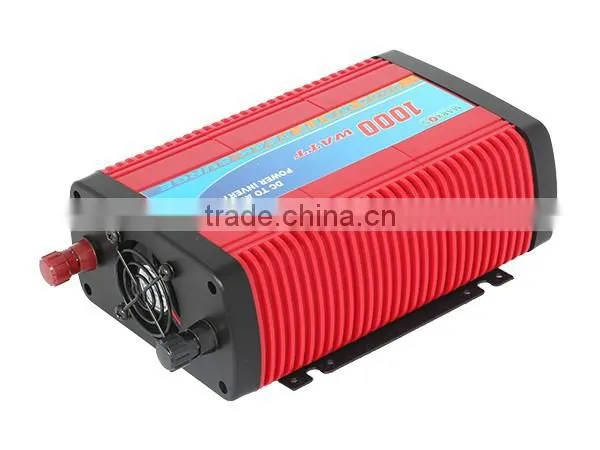

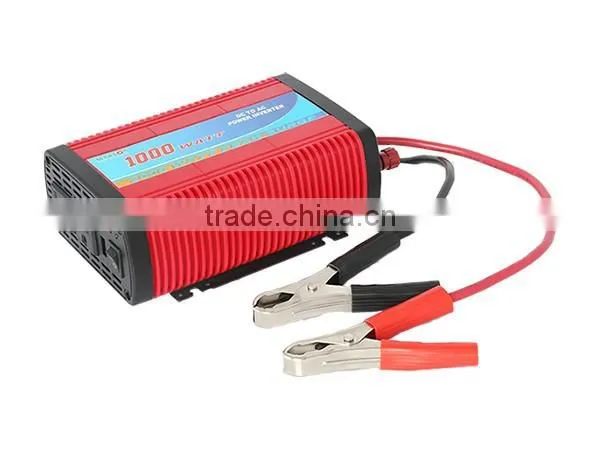

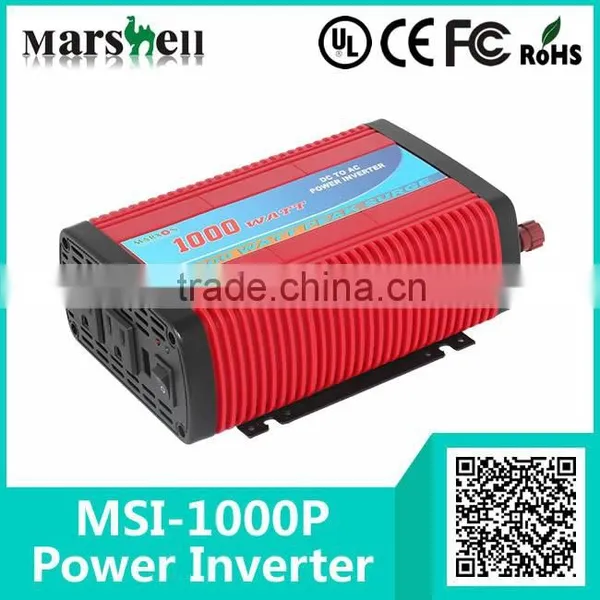

UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P)

UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P) thumbnail-1
UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P) thumbnail-2
UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P) thumbnail-3
UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P) thumbnail-4
UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P) photo-1
UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P) photo-2
UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P) photo-3
UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P) photo-4
Negotiable MOQ: 300 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Marshell
Model Number:
MSI-1000P
Contact Supplier Request Quote Chat Now
Shenzhen Marshell Green Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ZhaoQing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Marshell
Model Number MSI-1000P
Output Power Other, 2000w
Output Type Single
Size 215*125*70mm
Weight 1.5Kg
Input Voltage 12V/24V
Output Voltage 100~120V/220~240V
Type DC/AC Inverters
Output Frequency 50Hz / 60Hz±3Hz
Output Current modified sine wave

UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P)

UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P)

1. Input Voltage 12V /24V/48V DC optional;
2. Output Voltage 115V /230V AC optional.


Marshell power inverter protect function:

1. Overload protection: Automatically shuts down when continuousdraw exceeds rated continuous watt;

2. Over voltage protection: Automatically shut down when input exceeds 16±1VDC;

3. Low voltage Alarm: Audible when battery dischargesto 10.5±0.5VDC;

4. Under voltage protection: Automatically shuts down when input is less than 10.0±0.5VDC;

5. Output voltage range 115V±10% AC (RMS)230V±10% AC (RMS);

6. Output frequency 60±3Hz 50±3Hz;

7. Thermal protection: Automatically shuts down when housing temperature exceeds 70 centigrade.

UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P) Specifications

Model

MSI-600P

MSI-800P

MSI-1000P

Continuous Output Power (Watt)

600

800

1000

Output Peak Power (Watt)

1200

1600

2000

Input Voltage (DC)

12V(11~15V) / 24V(21~29)

Output Voltage (AC)

100~120V / 220~240V

Frequency

50Hz / 60Hz±3Hz

Output Waveform

Modified sine wave

Efficiency

85~90%

Low Battrey-voltage Alarm (Volt)

10.5V±0.5V / 21±1V

Low Battrey-voltage Shutdown (Volt)

10V±0.5V / 20±1V

Over temperature shutdown

<65°C

Available Protection

overload protection, input reverse protection, short circuit protection

Cooling Mode

By Fan

Replaceable Fuse

25A*3

25A*4

30A*4

Accessory

Alligator clips (included)

Alligator clips(excluded)

Dimension(L*W*H)mm

215*125*70

215*125*70

215*125*70

Weight(KGS)

0.85

1.2

1.5

QTY(PCS)

4

4

4

Carton Measurement(CM)

55.2*36*26

55.2*36*26

55.2*36*26

Container 20FT(PCS)20

2156

2156

2156

UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P)

UL High Performance Modified Sine Wave 1000 Watt Inverter (MSI-1000P)
