Motorized Linear Stage, Linear Motor dc 12v Linear Stepper Motor

Wenzhou Ge Ming Driven Equipment Co., Ltd.

US$ 17 - 36 MOQ: 100 Sets

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

H&T

Model Number:

HTB600-E

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name H&T

Model Number HTB600-E

Type Other, Oxygen Supply System

Specifications

Medical care Actuator,Linear actuator
1,High quality
2,Efficient testing
3,Excellent delivery lead time
4,Excellent after-sa

Combinations of components (Linear Actuator)
The Linear Actuator parts are as follows:
1) Linear Actuator:	(ABS plastic shell, stainless steel tubes, micro-switches, circuit boards, bearings, micro motor, reduction gear, screw, nut, bushings, putter, slide, spring, and nylon turbine) and other components.
2)controller:	(ABS plastic shell, transformers, circuit boards, electronic components,),.
3)Handle:	(ABS plastic shell, PCB, micro-switches, electronic components) and other components.
Linear actuator Working Principle	Motor through a gear reducer, drive a screw nut. The rotational movement of the motor into a linear motion, and the use of motor reversing complete plunger action. Such as the action of the lever, joystick or rod body rotation, shaking complex. By change lever arm length, can increase or increase the stroke. Stroke control device Driven turbine to rotate the motor gear on the scroll, so that the screw for axial movement within the turbine, driven by the link plate stopper rod accordingly to move axially to the desired stroke, by adjusting the stopper depressed stroke switch power off, the motor stops running (the same positive and negative control).

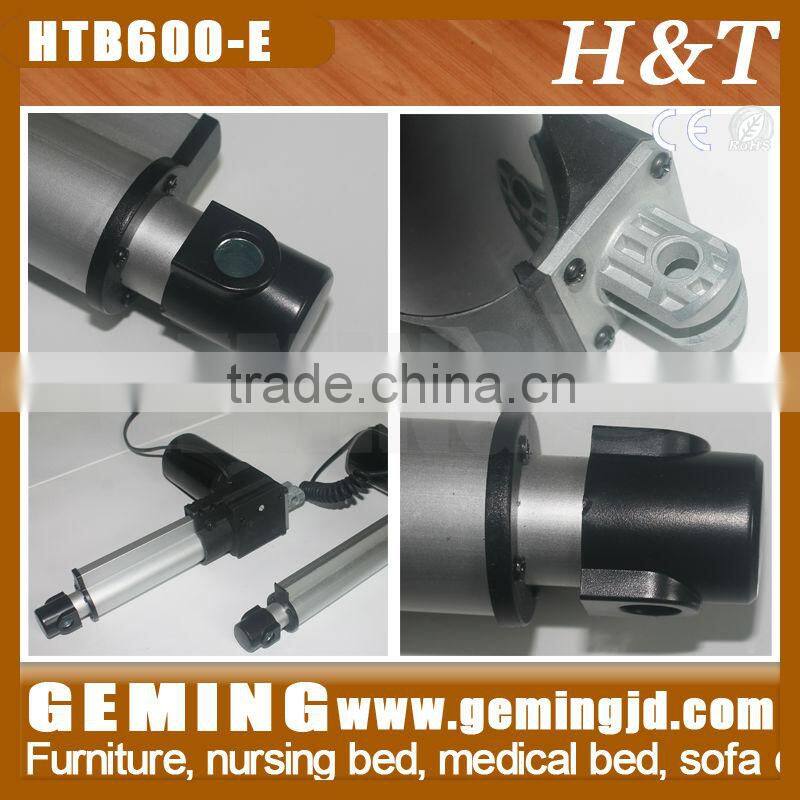

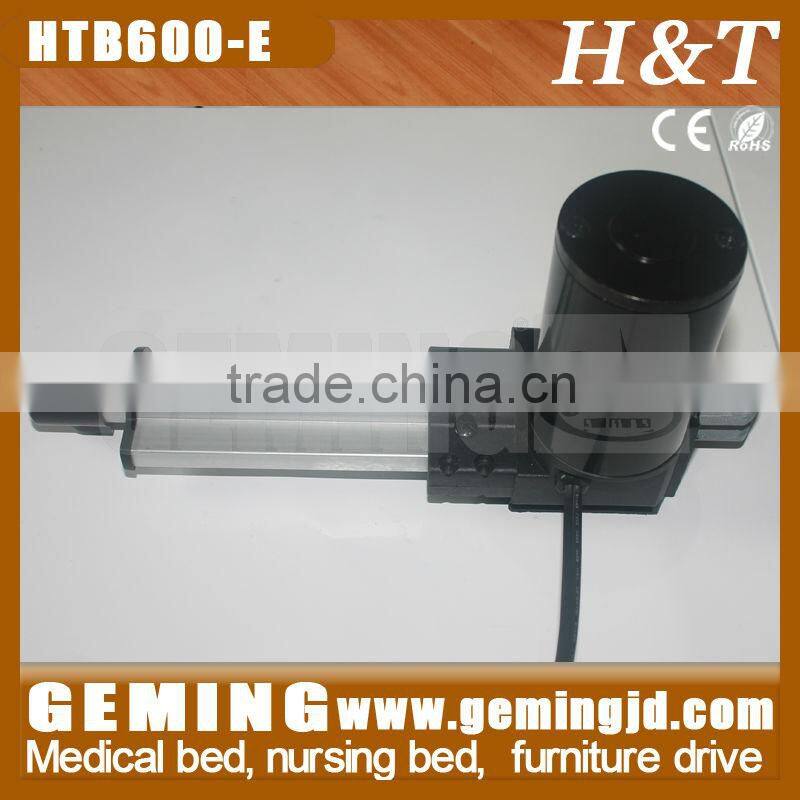

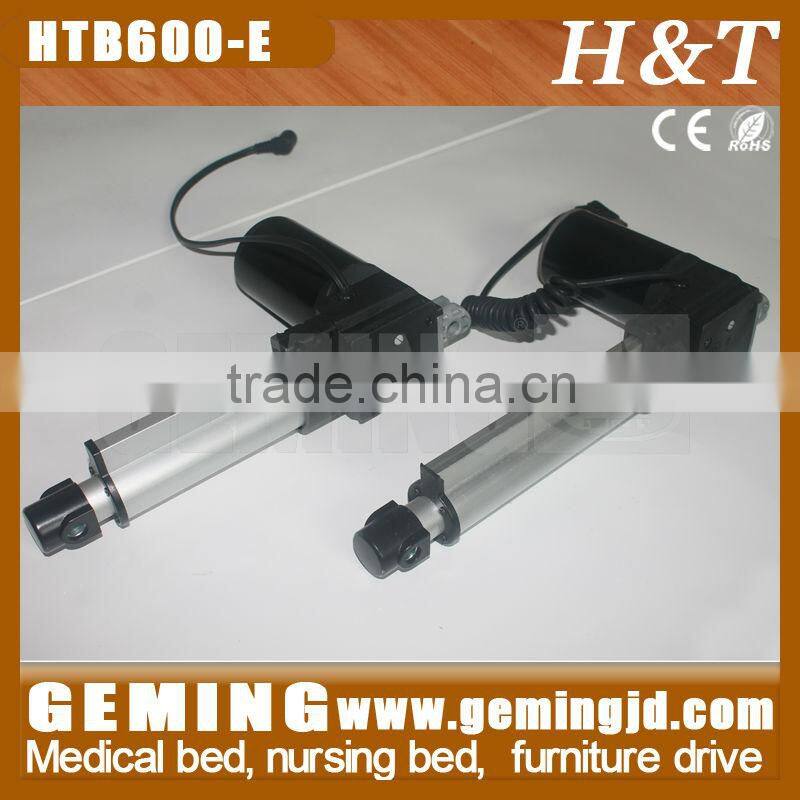

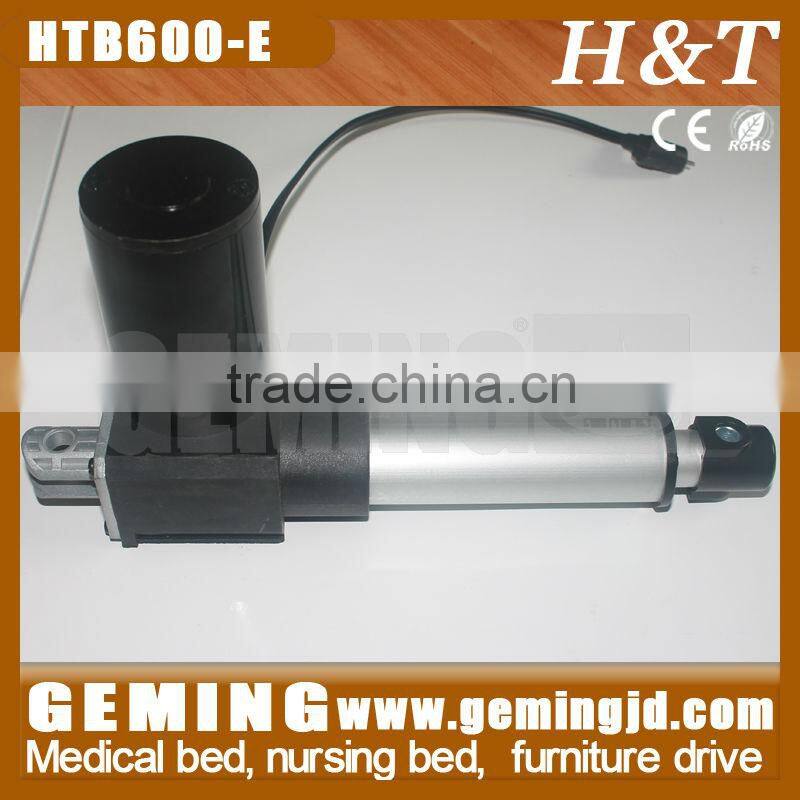

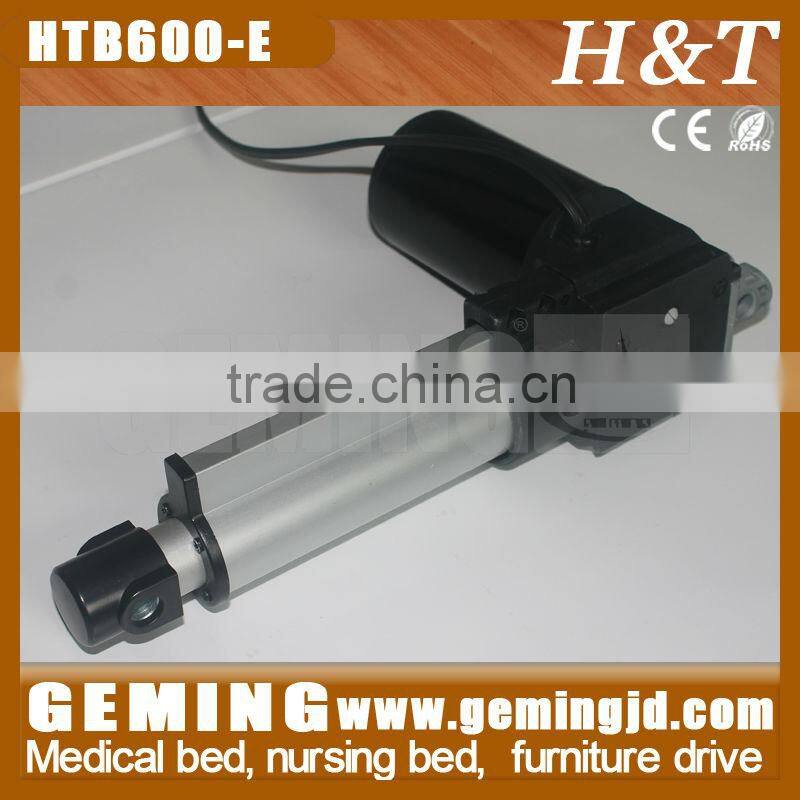

Model:	HTB600-E

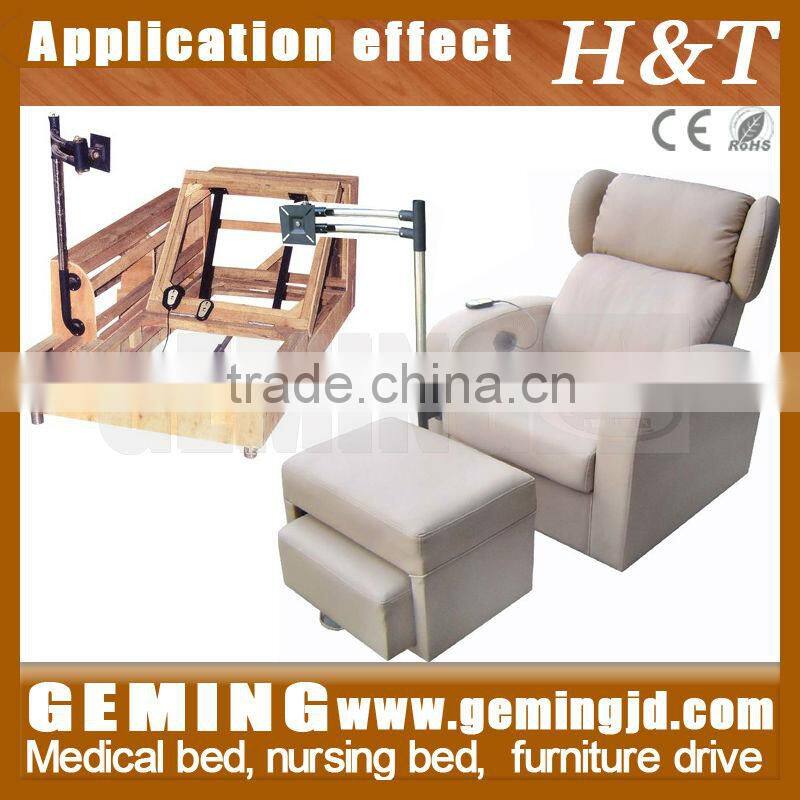

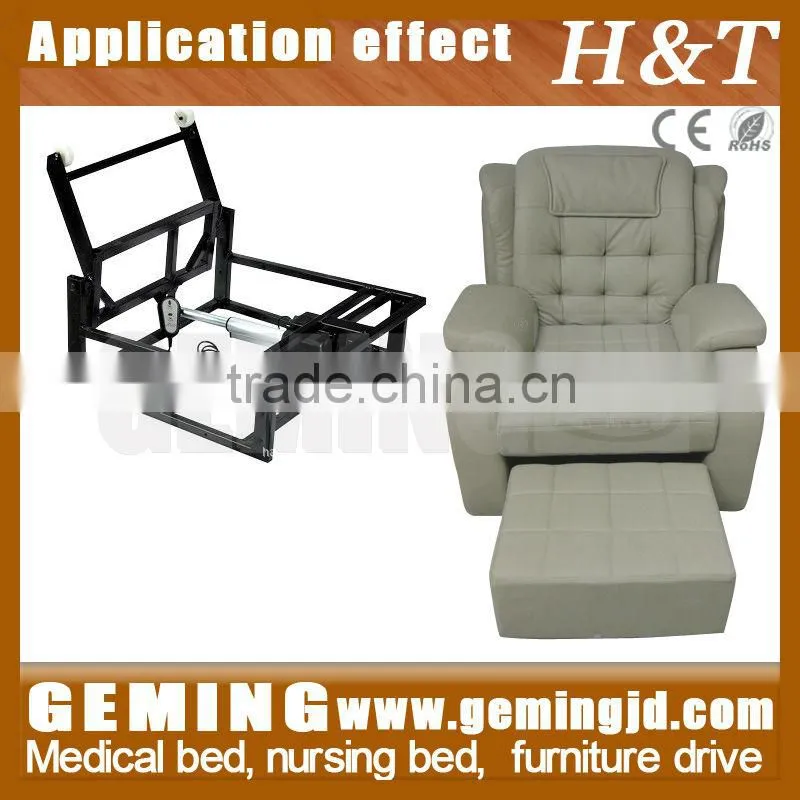

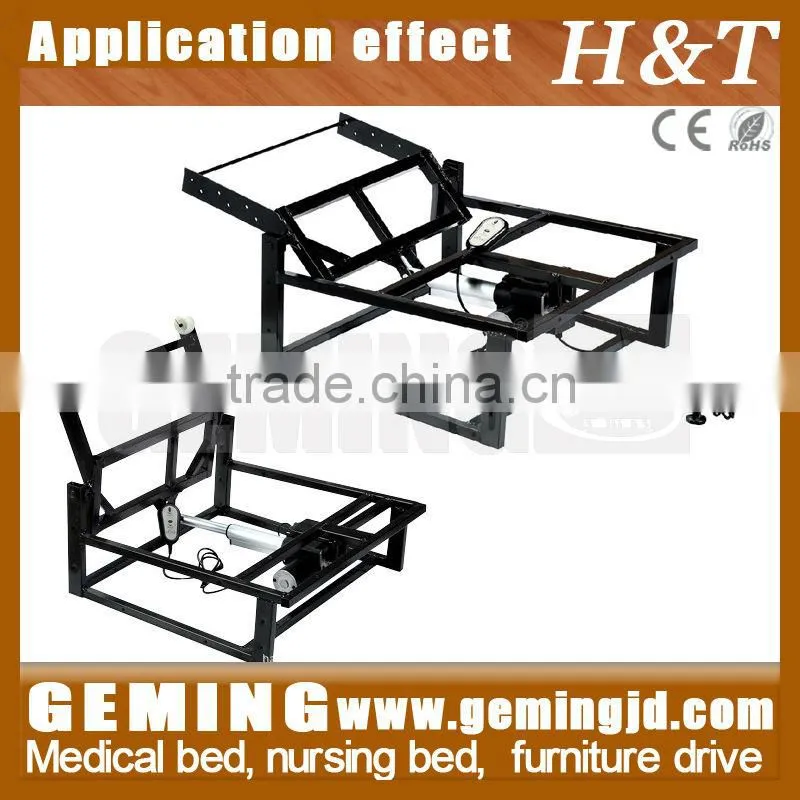

Usage:Massage chair, medical bed, nursing bed, furniture, Other
1)Voltage:	12VDC 24VDC permanent magnet
2)Motor Power:	50W
3)Standard stroke:	100 150 200 250 300 350 400mm,(option)
4)Standard mounting dimensions:	Stroke+175MM (Potentiometer)
5)ps:The special	stroke could be designed according to your request
6)Load capacity:	6000N
7)No load speed:	8mm/s(4000N) 4mm/s(6000N)
8)Type of duty:	25%
9)Ambient temperature:	-25°C~65°C
10)Protection class:	IP54
11)Built-in limit	switches,not adjustable after leave factory
12)Low noise design,	db<53
13)Certification:	CE,ROHS
14)Colour:	Black or gray
