Home > Products > Production line of XPS Cornice > XPS decorative material ceiling cornice forming machine
XPS decorative material ceiling cornice forming machine
- 100 Set / Sets per Month
- QINGDAO
- cooling tower fill forming machine/ PVC pp fills machine
- Desktop vacuum former 6090 mini vacuum forming machine plastic thermoforming machine for ABS sheet sign
- Desktop vacuum former 6090 mini vacuum forming machine plastic thermoforming machine for ABS sheet sign
- Plastic Seedling tray blister forming machine / Seed tray blister making machine
- Hot selling automatic plastic dishes making tray seed thermoforming machine with factory price
- best selling PS Foam Disposable Lunch Box Making Machine Fast Food Box Foaming Machine
Product Details
Condition: | New | Type: | Foaming Machine | Plastic Type: | Other, XPS |
Product Type: | Other, POLYSTYRENE CORNICE | Automatic: | Yes | Place of Origin: | Shandong, China |
Brand Name: | CHINA PROUD | Model Number: | CP-PSXT2000 | Voltage: | 380V |
Power(W): | 60kw | Weight: | 11 ton | Dimension(L*W*H): | 23*2.3*2.2m |
Certification: | CE ,ISO, CE/ISO | After-sales Service Provided: | Overseas service center available |
Product Description
1. General introduction of extruded xps cornice machinery line
XPS production line design principles by hot extrusion extruded polystyrene foam profile. The main feature of this process is a mixture of foaming agent in the continuous mixing, the mixer where the components of each group by a pneumatic dosing device the mixture continuously fed extruder, the mixture in the extruder reaches the melting point by heating polystyrene. The mixture was thoroughly mixed and the foaming agent through a die extrusion, to produce a variety of shapes XPS moldings.
2. Technical parameters
Model | YG-PSXT1000 | YG-PSXT2000 |
Main material | GPPS | GPPS |
Foaming agent | Butane/Freon | Butane/Freon |
Capacity | 500-1200kg/24 hours | 500-2000kg/24 hours |
Product thickness | 4-12mm | 4-15mm |
Product width | 20-120mm | 50-160mm |
Product density | 50-100kg/m³ | 50-100kg/m³ |
Cooling | Water/Wind | |
Installation power | 60kw | 100kw |
Consumption power | 20kw | 30kw |
Power supply | 380V 50HZ 3Phase 4Lines | |
Installation size | 25*4.5*3.2m | 28*4.5*3.2m |
Overall size | 23*2.3*2.2m | 25*2.5*2.2m |
Weight | 11 ton | 13 ton |
Plant area (at least) | 200-300 square meters |
3.Extruder machine introduction:
This machine line can make PS decorative material ceiling cornice ,it is used widely in room decoration and Interior Decorative.
The machine adopts the international newest ps profile shapes forming technology with computer digital forming system and PLC electromechanical integration full-automatic control.
The touch screen can control all action system .It has the following advantages: convenient operation, saving material, improving production efficiency, reliable stability,easy operaion,quickly forming ,high automation and so on.
Generally this machine line can produce many kinds of ceiling cornice with different colour as customers request, detailed characteristics are as following:
1.PS(Polystyrene material)
2. Products width:20mm-140mm
3. product Thickness: 5mm-15mm can be adjustable easily.
lor and length are customized.
5. Moisture resistant, vermin proof,sound and heat insulated ,environmental friendly products instead of asbestos and gypsum products.
6.Excellent quality with competitive price
7.Recycling usage
8. the whole machine line aopts PLS control system with famous brand
9. Light weight and easy to install simply: materials can be proceed with sawing,screwing,digging,patching and adherng.
4.Finished Product characteristic /Advantages
1.Low construction cost: surface coating has been completed in workshop, and can be saw,pasted, save the construction time.
2. The product is of decay resistance, moisture proof, never mildew.
3. Thermal coefficient is extremely low, don’t bend, don't fall off, not cracked, high durability,light weight ,good hardness, elastic and good toughness, easy to cooperate with engineering arcmodeling, low attrition rate, easy to handle.
4. The product has the synthetic surface, all are in white, according to the need of construction completion it could be done by hand paint or spraying coating.
5. Integrity: completely design and plan can be done in advance, then factory production to achieve primitive simplicity , elegance and liberality.
6. Corrosion resistance: acid and alkali resistant, absolutely no bug eaten, no living termites.
7. Fire prevention: raw material is of B1 fire prevention level, no spontaneous combustion, no support combustion.
8. Environmental protection: material saved more than 90%, green, no pollution, non-toxic, no peculiar smell.

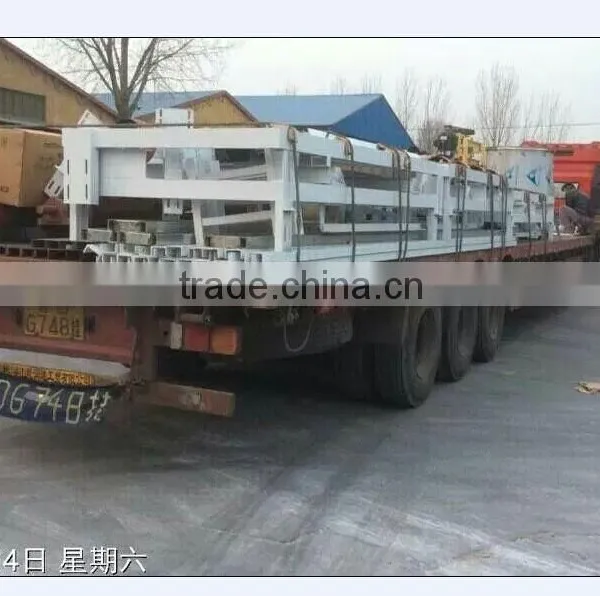

5.Pictures:
THANKS FOR YOUR ATTENTION!
