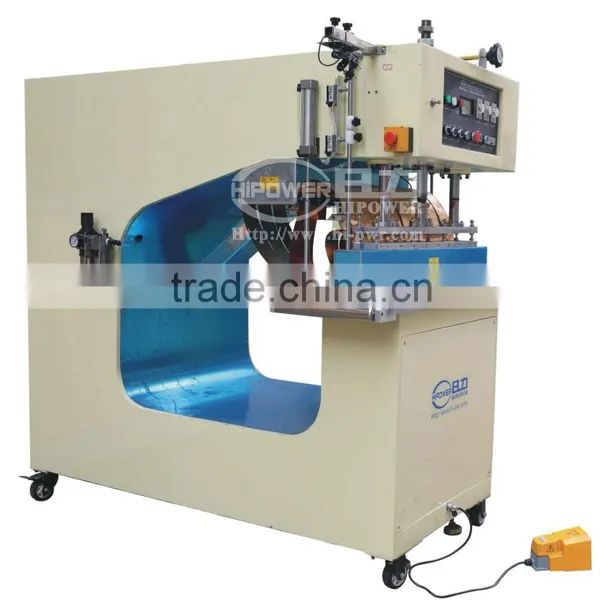

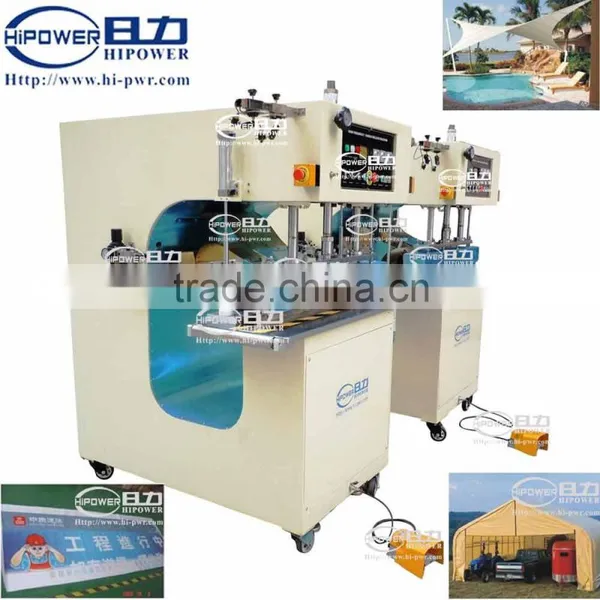

High frequency welding machine of tarpaulin welding and canvas bonding machine
Application: tarpaulin welding machine, canvas bonding machine, high frequency canvas welding machine.
Features of high frequency welding machine of tarpaulin welding and canvas bonding machine:
1. High frequency tarpaulin welding machine can be manufacturered and choose according to user needs.
2. Length, width and radian of welding area can be adjusted by welding die.
3. With 1150mm free space behind the electrode which makes the machine suitable for big-scale manufacturing
that require extensive material handling.
4. better welding effect, install laser scanning system inside the machine to get precise wedling position
5. European-model squareness high frequency vibration bos, more realiable and stable in output
6. International industrial wave bands 27.12MHz, which is in line with international standard.
7. Laser scan system,precise positioning welding.
8. Welding time can be adjusted according to welding materials
9. Firmly welding, be well meet with thick or thin dimension of welding material
10. Machine groove deep and wide, conveninent in continuous welding with large area.
11. Single line or two lines continue welding, welding length can be ordered as special need.
12. Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mould
13.European standard high-frequency oscillatory square box, output greater and more stable.
14.The machine with F style structure,The distance of body from horn can be customized
15.Can be used as a freestanding machine for welding production or as a supplement to a larger system.
16.All sizes available related machines made by request
Specifications of high frequency welding machine fo tarpaulin welding and canvas bonding machine:
| Model | HR-15KW-F2 |
| Power | 15KW |
| Voltage | 3P 380v 50Hz or customize |
| Frequency | 13.56MHz |
| Input power | 25KVA |
| Oscillation tube | 8T85RB |
| Max pressure | 1000KG |
| Operation mode | Pneumatic |
| Max gap of electrodes | 100mm |
| Size of active horn | 100mm |
| The size of upper electrode | 60*60*1000mm |
| The size of lower electrode | 400*1050mm |
| Welding time | 0.01~9.99s adjustable |
| Net weight | 600kg |
| Overall dimension | 1700*1480*1740 |
Samples:
Before-sales service
Our free technical assistance is available to you from now on:
1. Recommend equipment of top choice based on your requirements for product;
2. Examining mold drawings on your behalf to confirm optimum structure size meeting ultrasonic process and high frequency process;
3. Providing assistance in manufacturing and modifying tools;
4. Sample for welding.
During-sales Service
1. Punctual deliver of equipment as per Contract;
2. Free door to door service for installation and debugging;
3. Professional training for operators;
4. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
After-sales service
1. Available within 24hours within Guangdong Province and 48hours beyond the province;
2. Our regular return visits ensure continuous improvement of our service quality
....
