Specifications
Automatic high frequency sealerPolyester air pocket filter sealer
Push tray with 2 work positions
OEM, CE
NL-5557

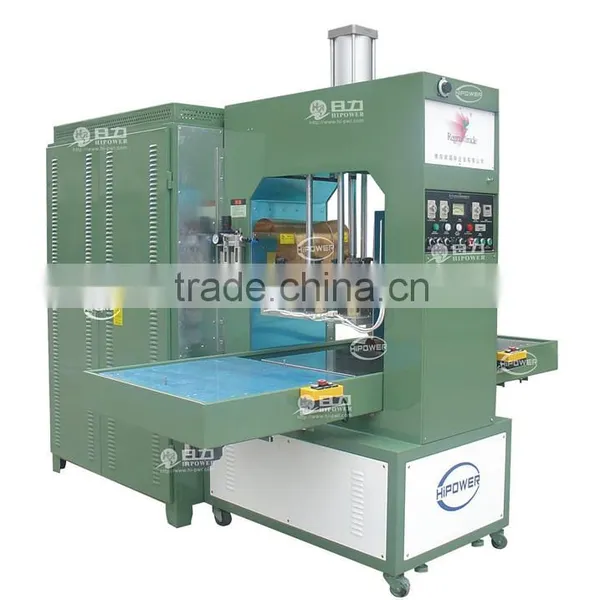

Automatic high frequency sealer for polyester air pocket filter making
Application: specially used to make polyester air pocket filter
Features of Automatic high frequency sealer for polyester air pocket filter making:
1. Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.
2. Double-direction automatic slipway,come-and-go or continuous delivering the mould,accurate-orientation, error + 20 um.
3. Adjustable cutting pressure 1-50 tons,stable and realible in output,firm in structure.
4. Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency.
Specifications of Automatic high frequency sealer for polyester air pocket filter making:
| Model | HR-25KWAT |
| Power | 25KW |
| Voltage | 380V 50/60Hz or customize |
| Frequency | 13.56MHz |
| Input power | 35KVA |
| Rectifier | Silicon Diode |
| Oscillation tube | 8T25RA |
| Max pressure | 2T |
| Mas gap of electrodes | 100mm |
| Moving distance of active horn | 100mm |
| Size of upper electrode | 800*800mm |
| Size of lower electrode | 800*800mm |
| Range of temperature | 30~200 degrees adjustable |
| Welding time | 0~10s adjustable |

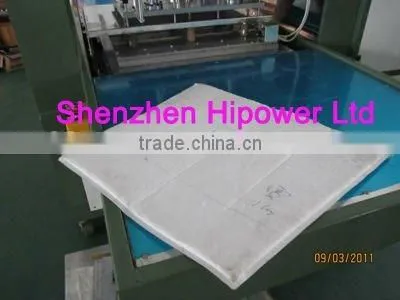

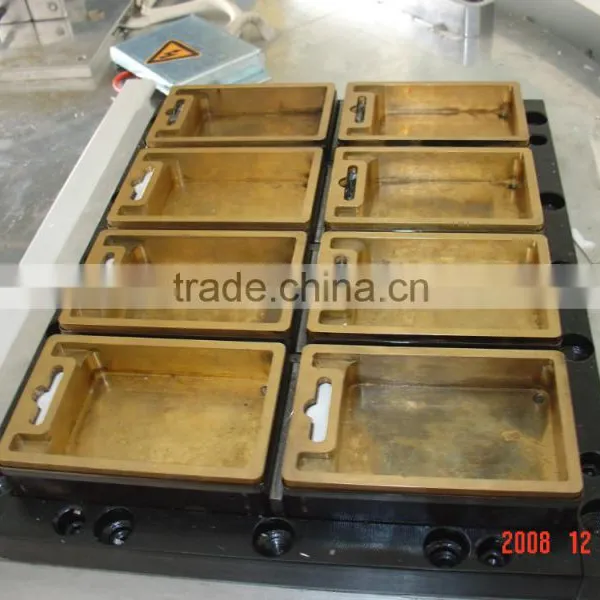

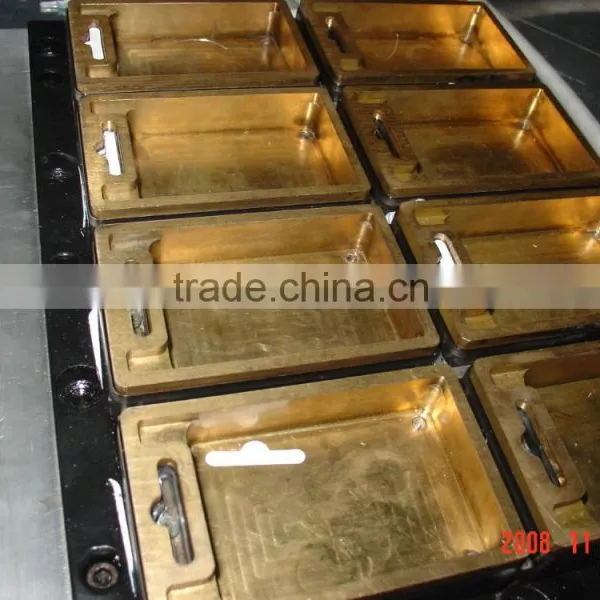

Samples:
Before-sales service
Our free technical assistance is available to you from now on:
1. Recommend equipment of top choice based on your requirements for product;
2. Examining mold drawings on your behalf to confirm optimum structure size meeting ultrasonic process and high frequency process;
3. Providing assistance in manufacturing and modifying tools;
4. Sample for welding.
During-sales Service
1. Punctual deliver of equipment as per Contract;
2. Free door to door service for installation and debugging;
3. Professional training for operators;
4. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
After-sales service
1. Available within 24hours within Guangdong Province and 48hours beyond the province;
2. Our regular return visits ensure continuous improvement of our service quality
....
