High frequency air filter making machine
Application: for air filter, air conditioner, sun visor on car welding
Excellence of High frequency air filter making machine:
1.Spark suppressor: When sparks, the special electronic circuit works and cuts off the high frequency to suppress spark automatically and minimize the damage of electrodes and materials. Also. The warning lights works.
2.Prevention for radio interference device: Equipped with frequency stabilizer and high-frequency magnetic leakage suppressor. This device eliminates the leakage of radio waves to interfere other electronic devices such as TV, radios, etc..
3.Safety devices: When the current exceeds the limit value, the overload current relay works to protect oscillator and rectifier automatically. Frequency deviation caused by the improper operation is also prevented.
4.Easily adjustable device: Output power can be adjusted according to electrode size and material thickness. Other control devices and special electronic circuits can reduce required welding time and improve the machine's productivity.
You can see our website for more product information, please don't hesitate to call.
Our advantage:
Our company insists the quality first, customer supreme idea, our superiority: One year and so on maintenance, three months and so on exchange guaranteed, life-long service
Features:
1. Special mechanical structure design can provide a stable and uniform pressure
2.It has high sensitive spark restraint electrocircuit that can check out the imbalance current
which can bring park and cut it off and alert the operator.
3. It is special designed and manufactured for making air filter base on the standard model of
our HF welding and cutting machine
Specifications:
Model Item |
HR-10KW-15T |
Frequency |
27.12 MHZ |
High Frequency Output Power |
10KW |
Power Supply |
220V/380V, 50-60HZ |
Input power |
18KVA |
Range of temperature |
30~200°C Adjustic |
Max pressure |
20 Ton |
Oscillation Tube |
E3069RB |
Arc Suppressing Tube |
NL5557 |
Max Gap of Electrodes |
200mm |
Upper Electrode |
400*700mm |
Lower Electrode |
400*700mm |
Operation mode |
Air & Hydraulic(two step pressurizing |
The manufacturer will do endless improvement,please contact us for updated
Samples:
Welded Moulds Views:
Unique Features:
1. CE rated machine; easy opeartion, training and maintainace | |||||
| 2. Customer's site installation, training & maintainance available | |||||
| 3. Grounding Press Platen behind welding electrode, to prevent hurting workers during welding process | |||||
| 4. Copper Made Transformer; NL-5557 anti-spark system; European style HF generator design; | |||||
| 5. Optional design on request: Servo-motor; PLC control, Human-machine-interace system | |||||
All machines are completely safe for the operator and fully comply with CE regulations.
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

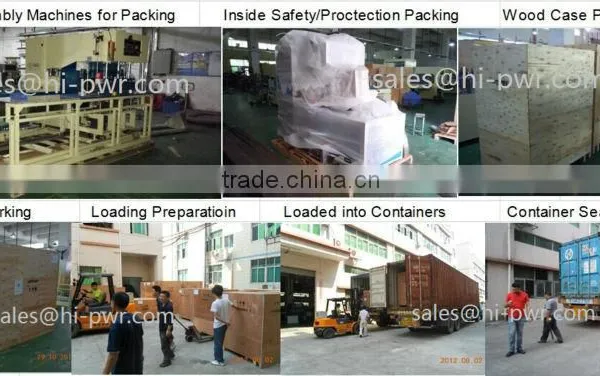

We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
Questions 01. How Do You Pack the machines
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)
Questions 02. Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 03. How Does Customer Use the machines
RE: We will provide you operation manual and diagram of machine in English.
For automatic machine and custom machine, we will provide operation videos to you.
Questions 04. Does the machine need compressed air ?
RE: Generally speaking, if your factory with compressed air source, then connect to machine.
If not, please buy a 2Psi -5 Psi air compressor.
If customer request to use Hydraulic pressure, please inform us when put an order.
Questions 05. Does the machine power voltage meet buyers' factory power source?
RE: We can make machine with voltage like:
frequency: 50 - 60HZ Phases: single phase / 3 phases
Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Please kindly inform us what frequency/phases/voltage you want, when you put order to us.
Questions 06. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
Questions 07. Can I visit you factory to check machines on-site ?
RE: We are manufacturer, and we welcome customers to visit our factory.
We located in Shenzhen, China; you may come to us by following:
a) Via. Hongkong to Shenzhen :
please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point like Shekou, Lohu
b) Via. Guangzhou to Shezhen;
you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.
we will arrange to pick you up from station.
c) Via. Shenzhen Airport :
Please inform us your flight number and contact information before you come, we will meet you at airport.
Questions 08. What Should I bring when I visit your factory?
RE: For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
For common product, it is enough to show us product pictures or drawings.
CE certificates:
