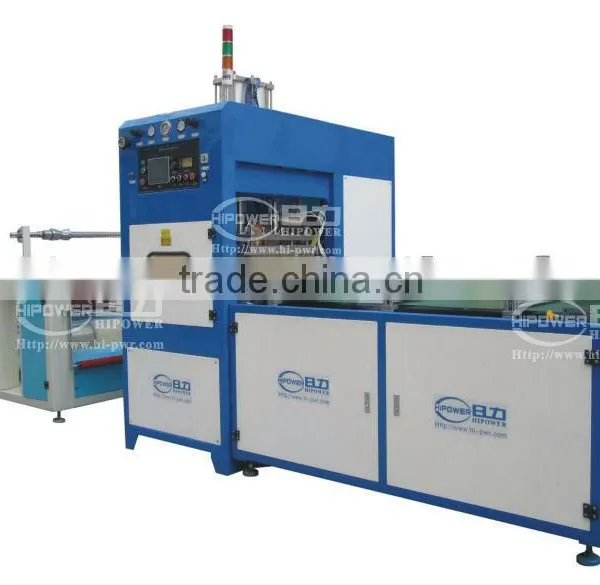

High Frequency PVC box making machine
High frequency soft line plastic boxes machine applicable industries:
For PVC soft crease box under continuous operation in application of high frequency welding
and folding , for blister packaging.
Characteristics:
High frequency soft crease line plastic box machine , suitable for large-scale batch production. A roll of PVC material set upon the feeder, transfer to the working table(mould table)after being flatten. Under the high frequency and press, the PVC be welded and cutted.(recovery systems,optional.)
High frequency soft crease line box macine ,with different power supply eet customer's actual
needs.
High frequency soft crease line box machine equips with heat-flatten system which removes the scratches. Meanwhile the feeding speed & the operation
speed is adjustable,Electronic counting.Transmission system adopts imported wear-resisting glial materials, don't scratch the PVC sheet or material.
The high frequency soft crease line box machine is ppplied to process or weld large-area productions,such as PVC water bed,drifting raft,children swimming pool.
Optional operation mode: hydraulic or pneumatic.
European-style high prequency vobration box,more realible and stable in output.
Equiped with high sensitive anti-sparkle device,avoid damaging the mould
Model |
HR-8000P-20T |
HR-15KWP-30T |
Power |
8000W |
15000W |
Power supply |
380V 50/60Hz |
|
Frequency |
27.12MHz |
13.56MHz |
Input power |
15KVA |
15KVA |
Rectifier |
SILICON DIODE |
|
Oscillation tube |
7T69RB |
8T85RB |
Max pressure |
1000kg |
1500kg |
Gap of electrodes |
150MM |
|
Moving distance of active horn |
150MM |
|
The size of upper electrode |
500*700mm |
700*800mm |
The size of lowwer electrode |
500*700mm |
700*800mm |
The range of temperature |
30~200¡æ Adjustable |
|
Welding time |
0~10S Adjustable |
|
Productivity |
Equal or less 6500times/8h |
|

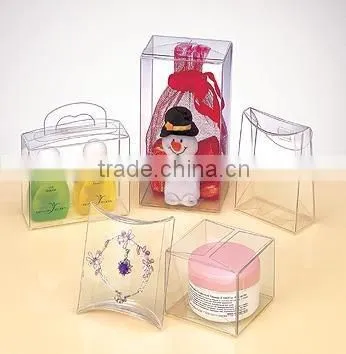

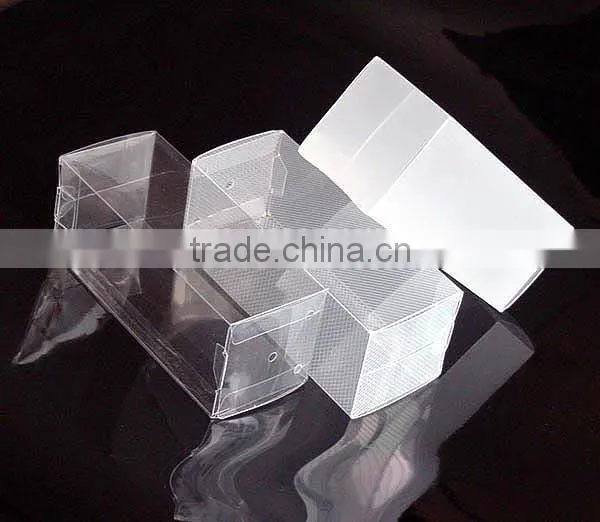

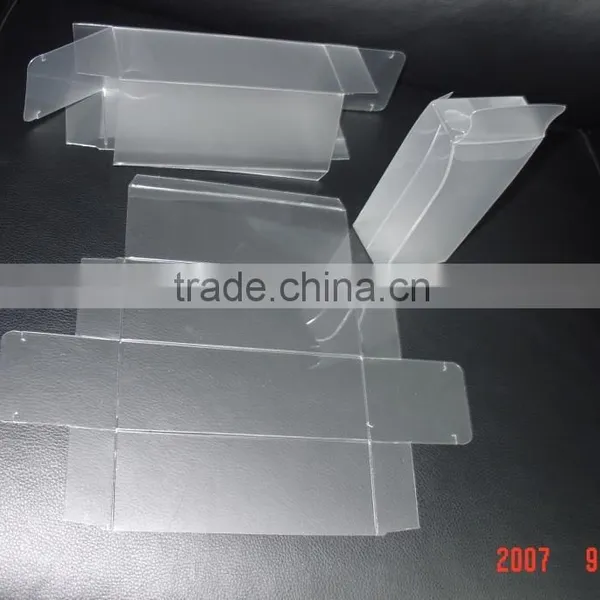

Samples:
...
