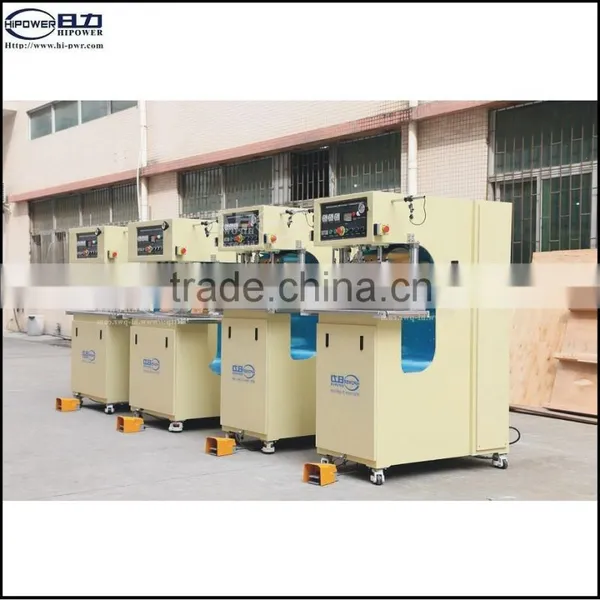

High frequency PVC connecting machine
Application:
Used for welding Liquid tanks, canvas, car tents, tarpaulin, air structure, sun belt, inflatable dome, awning, covers, sunshade, inflatable tents, tailgate, inflatable dome tent, awning, tarpaulins, covers,poll liner, sunshade and many other kinds of plastic products.

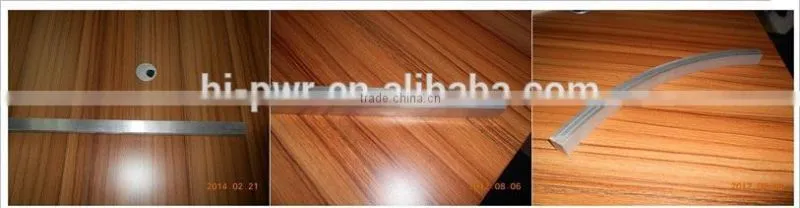

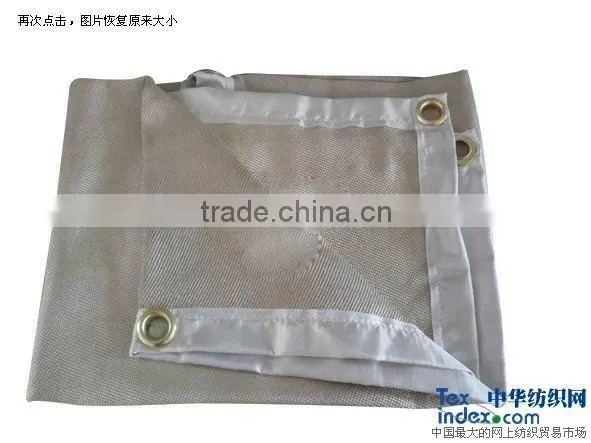

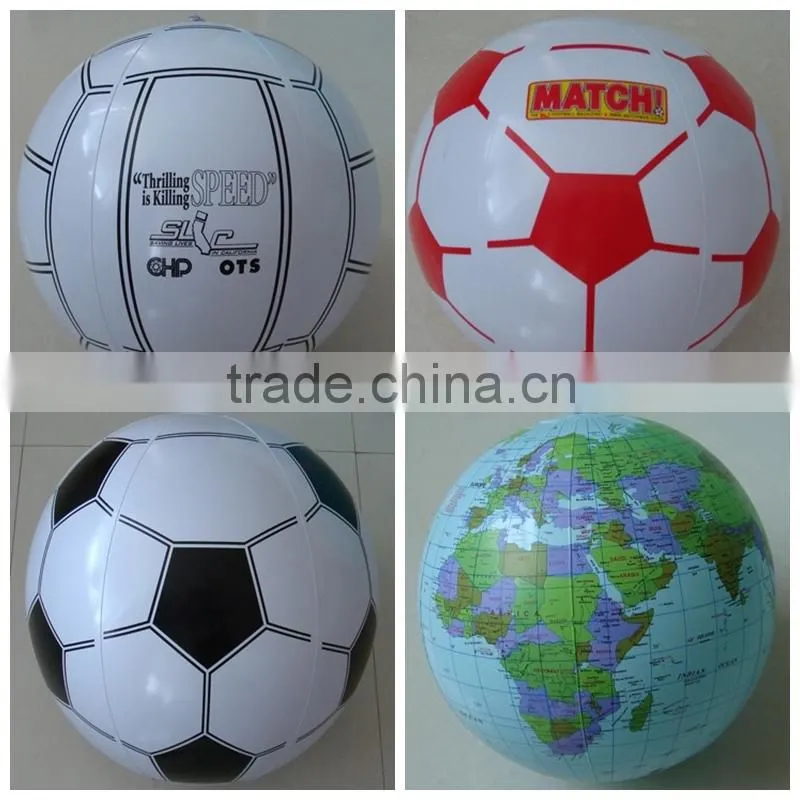

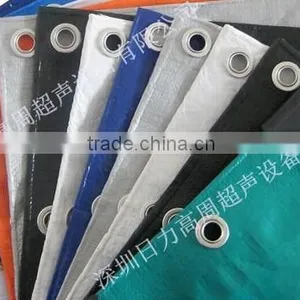

Samples:
Features of high frequency PVC connecting machine:
1. High frequency tarpaulin welding machine can be manufacturered and choose according to user needs.
2. Length, width and radian of welding area can be adjusted by welding die.
3. There is 750mm free space behind the electrode which makes the machine suitable for big-scale manufacturing that
require extensive material handling. The dimension of product handle platform can be made as client request.
4. For getting better welding effect, install laser scanning system inside the machine to get precise wedling position.
5. European-model squareness high frequency vibration bos, more realiable and stable in output
6. International industrial wave bands 40.68MHz and 27.12MHz, which is in l ine with international standard.
7. Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mould.
8. Welding time can be adjusted according to welding materials
9. Firmly welding, be well meet with thick or thin dimension of welding material
10. Machine groove deep and wide, conveninent In continuous welding with large area.
11. Single line or two lines continue welding, welding length can be ordered as special need.
12.Can be used as a freestanding machine for welding production or as a supplement to a larger machine system.
13.Machine groove deep and wide ,conveninent in continuous welding with large area.
14.Firmly welding ,be well meeting with materials of thick or thin.

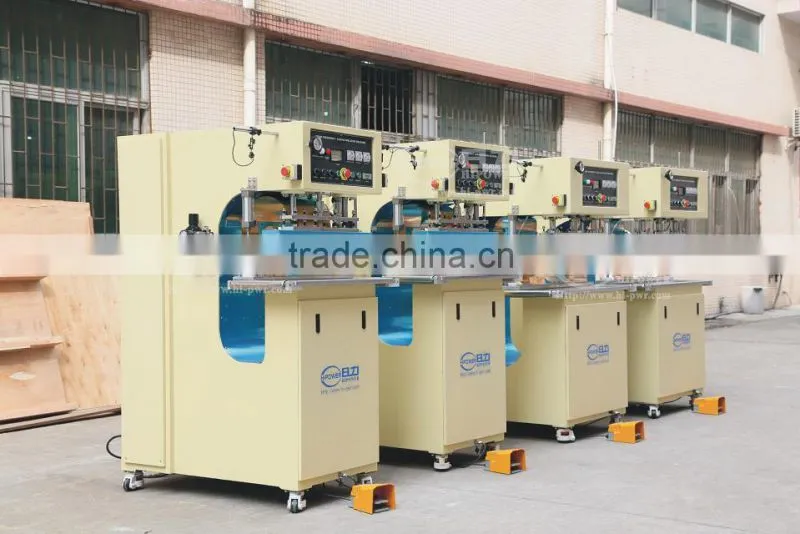

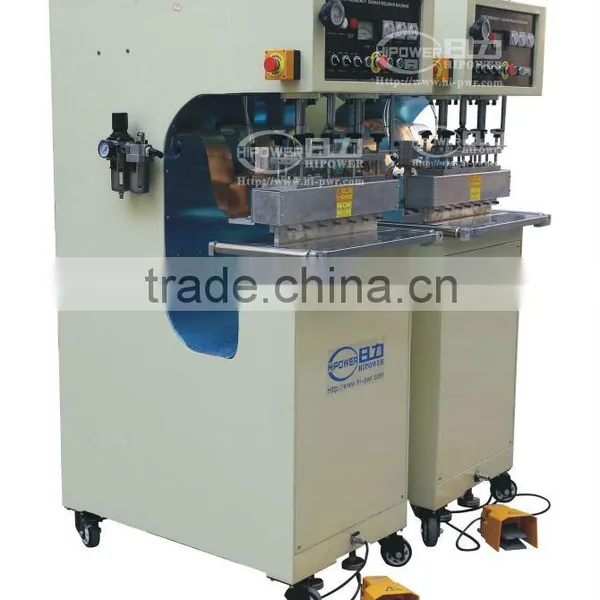

Products:
Specifications of high frequency PVC connecting machine:
| Model | HR-8KW-F1 |
| Power | 8KW |
| Voltage | 3P 380v 50Hz or customize |
| Frequency | 27.12MHz |
| Input power | 15KVA |
| Oscillation tube | 7T69RB |
| Max pressure | 500KG |
| Operation mode | Pneumatic |
| Max gap of electrodes | 100mm |
| Size of active horn | 100mm |
| The size of upper electrode | 50*50*600mm |
| The size of lower electrode | 400*800mm |
| Welding time | 0.01~9.99s adjustable |
| Net weight | 400kg |
| Overall dimension | 1500*1350*1740 |
Before-sales service
Our free technical assistance is available to you from now on:
1. Recommend equipment of top choice based on your requirements for product;
2. Examining mold drawings on your behalf to confirm optimum structure size meeting ultrasonic process and high frequency process;
3. Providing assistance in manufacturing and modifying tools;
4. Sample for welding.
During-sales Service
1. Punctual deliver of equipment as per Contract;
2. Free door to door service for installation and debugging;
3. Professional training for operators;
4. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
After-sales service
1. Available within 24hours within Guangdong Province and 48hours beyond the province;
2. Our regular return visits ensure continuous improvement of our service quality
...
