300L Micro Beer Equipment/copper Distiller for Beer Brewing

300L Micro Beer Equipment/copper Distiller for Beer Brewing photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HL
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name HL
Model Number 300BBL
Processing Types Alcohol
Voltage 380V/220V/420V
Power(W) 25kw
Weight 1-3T
Certification CE,ISO
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

300L micro beer equipment/copper distiller for beer brewing
Type:automatic
Control:PLC control
Output:300L

300L micro beer equipment/copper distiller for beer brewing
Type:automatic
Control:PLC control
Output:300L

place of origin: Shandong China(Mailand)

processing: fermenting

packing: wooden case or other

delivery: 35 days within the order

material: sus304 or red copper

We will take full responsibility for designing, manufacturing,installing the beer brewing equipment and producing the first brew. The equipment is of high qulity,competative price,highly automatic.

The whole equipment includes:

milling system,saccharification system,fermentation system,refrigeration system,washing and sterilization system,control system and accessories.

300L micro beer equipment/copper distiller for beer brewing



We will take full responsibilities for designing, manufacturing, installing beer equipment and producing the first brew.

Now, let me show you the simple introduce of our beer equipment:



 Following is the configuration list of the whole equipment:





                                          Beer Equipment Configuration List



Milling System

(1) Malt Mill

Double roller style, 100-300Kg/h.







Brewing System

(1) Mash/Lauter Tun

Material:Stainless steel 304 or red copper

(2) Boiling/Whirlpool tank

Material:Stainless steel 304 or red copper

(3) Hot water tank

Material:Stainless steel 304   or red copper

(4) Wort pump

Capacity:1T/h to 10T/h

(5) Plate heat exchanger:

2-16 m2

(6) Valves and pipelines:

material is stainless steel   304





Fermentation system



(1) Fermenter

Material: stainless steel 304

Capacity:from 50L to 6000L

Conical degree:75°

(2) Bright beer tank

Material: stainless steel 304

Capacity:from 50L to 6000L

(3) Yeast   adding device

Volume: from 10L to 200L



Refrigeration system



(1) Ice water tank

Material: stainless steel 304

Capacity:from 200L to 5000L

(2) Refrigerating Unit

Power:2P to 16P

Coolant: Freon 22 or R410a

(3) Circulating Pump

Capacity:2T/h to 15T/h

Steam generator



(1) Steam generator

Heating method: Electric, Gas or Oil

Power:3.8 Kg/h to 140Kg/h

CIP system

(1) CIP device

Capacity:50L to 200L

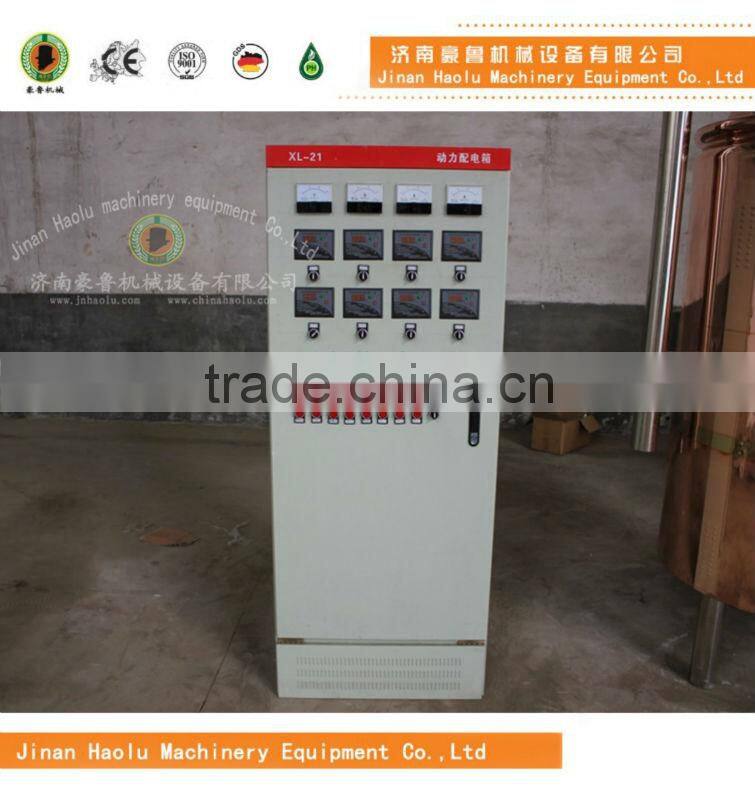

Control System

(1) Control Cabinet

Model: Digital Display   control or PLC control

















Accessory



(1) Pipelines and valves

Used for fermentation system, refrigeration system and so on.

(2) Ø 25 edible hose

Model: Ø32/25

(3) Ø 38 Wired hose

Model: Ø 32.

(4) Iron shell thermometer

1 pcs

(5)Platinum resistance temperature instrument

-20°C to +80°C.

(6) Butterfly pads

Model: Dg40/32/25



(7)Sugar measuring with temperature

10°,20°: each of them has 2 pcs.

(8) Inflatable head

Each one has 5m(Ø 12)flexible pipe.

(9) Bad rake exit

Material: Stainless steel SUS 304.

(10) Measuring cylinder

Material: Stainless steel SUS 304.

Beer selling device

(1) Beer tower

2 heads to 4 heads

Filter System

(1) Filter

Capacity:100Kg/h to 500Kg/h



Beer filling system

(1)Washing machine



Used for Bottle or Keg

(2) Filling machine

(3) Capping machine

Others

(1) Depends on the actual requires







300L micro beer equipment/copper distiller for beer brewing





The whole beer equipment adopts the best insulate material-polyurethane, the

      best pumps, valves and pipes.

      We can supply 100L,200L,300L,500L,1000L,2000L  capacity beer equipment.

      Tell me your remands and I will give you a list which can meet all your requirments best.

      Wishing for your inquiry and visit to our company.

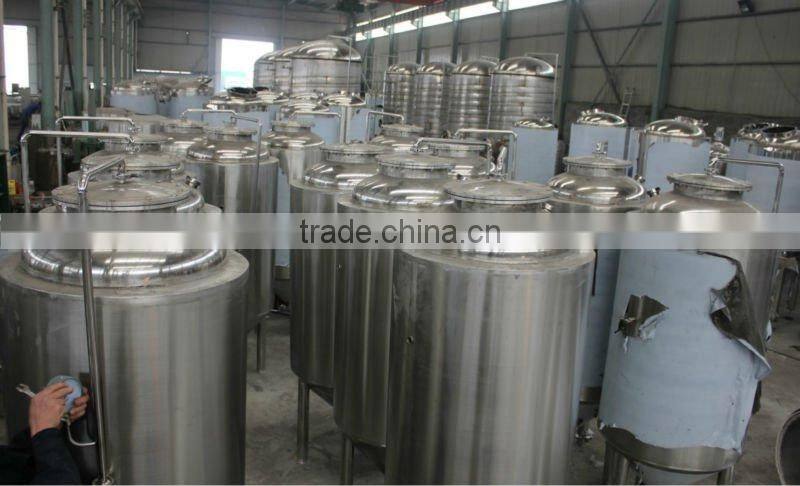

          More photos of the brewing equipment:

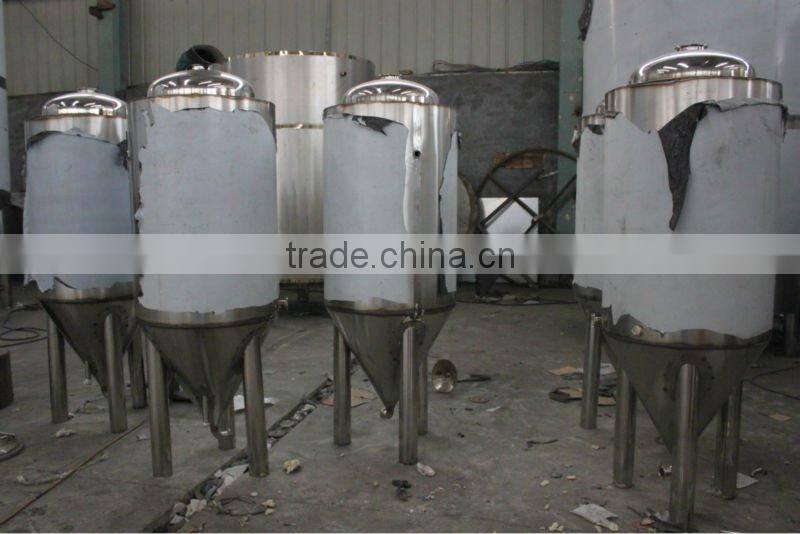

     Fermenter:







300L micro beer equipment/copper distiller for beer brewing





300L micro beer equipment/copper distiller for beer brewing300L micro beer equipment/copper distiller for beer brewing300L micro beer equipment/copper distiller for beer brewing





300L micro beer equipment/copper distiller for beer brewing
