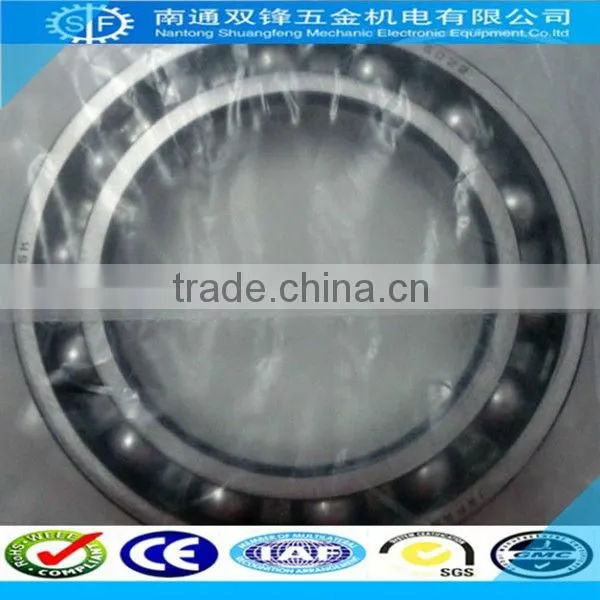

Japanese Nylon Ball Bearing 6311

Japanese Nylon Ball Bearing 6311 thumbnail-1
Japanese Nylon Ball Bearing 6311 photo-1
US$ 0.1 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
NACHI
Bore Size:
55,
Outside Diameter:
120,
Contact Supplier Request Quote Chat Now
Nantong Shuangfeng Hardware Mechanical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo or qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NACHI
Bore Size 55,
Outside Diameter 120,
Model Number 6311
Precision Rating p0 p6 p5 p4
Seals Type open
Number of Row Single Row
Place of Origin Shanghai, China

Specifications

NACHI Bearing 6311
1.certification:CE/IAF/SGS
2.GMC supplier
3.more quality high-speed lower prices
4.Offer free samples

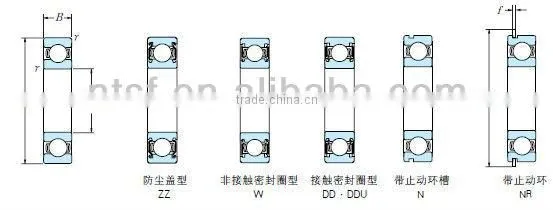

 Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.The bearing ring grooves are circular arcs made slightly larger than the radius of the ball.



japanese nylon Ball Bearing 6311



Bearing
NO.		 I.D O.D W Load Rating
(KN)		 Steel Ball Parameter Max Speed
d D B Dynamic Static NO. Size Grease Oil
mm inch mm inch mm inch Cr Cor mm r/min r/min
6300 10 0.3937 35 1.378 11  0.43307 8.2 3.5 11 2.381 23000 27000
6301 12 0.4724 37 1.45669 12  0.47244 9.7 4.2 12 2.381 19000 /
6302 15 0.5906 42  1.65354 13  0.51181 11.4 5.45 14 2.381 17000 21000
6303 17 0.6693 47  1.85039 14  0.55118 13.5 6.55 16 2.381 16000 19000
6304 20 0.7874 52  2.0424 15  0.59055 15.9 7.9 14 3.175 14000 17000
6305 25 0.9843 62  2.44094 17  0.62992 21.2 10.9 15 3.500 12000 14000
6306 30 1.1811 72  2.83464 19  0.74803 26.7 15 18 3.500 10000 12000
6307 35 1.378 80  3.1496 21  0.82677 33.5 19.1 15.3 3.500 8800 10000
6308 40 1.5748 90  3.5433 23  0.90551 40.5 24 22 3.500 6400 /
6309 45 1.7716 100  3.937 25  0.8425 53 32 22 3.969 7000 8200
6310 50 1.9685 110  4.3307 27  1.06299 62 38.5 24 3.969 5000 /
6311 55 2.16535 120  4.7244 29  1.14173 71.5 45 / / 5800 6800
6312 60 2.3622 130  5.1181 31  1.22047 82 52 / / 5400 6300
6313 65 2.55905 140  5.5118 33  1.29921 92.5 60 / / 4900 5800
6314 70 2.7559 150  5.9055 35  1.37795 104 68 / / 4600 5400
6315 75 2.95275 160  6.2992 37  1.45669 113 77 / / 4300 5000
6316 80 3.1496 170  6.6929 39  1.53543 123 86.5 / / 4000 4700
6317 85 3.34645 180  7.0866 41  1.61417 133 97 / / 3800 4500
6318 90 3.5433 190  7.4803 43  1.69291 143 107 / / 3600 4200
6319 95 3.74015 200  7.874 45  1.77165 153 119 / / 3300 3900
6320 100 3.937 215  8.46455 47  1.85039 173 141 / / 3200 3700









 japanese nylon Ball Bearing 6311japanese nylon Ball Bearing 6311japanese nylon Ball Bearing 6311japanese nylon Ball Bearing 6311japanese nylon Ball Bearing 6311japanese nylon Ball Bearing 6311



Payment terms:



1. 30% T/T In Advance, 70% T/T Against The Copy Of B/L



2. 100% L/C At Sight



3.as requested



Related industries:

japanese nylon Ball Bearing 6311





Main production







Ball bearing



Deep groove ball bearings

Angular contact ball bearings

Self-aligning ball bearings

Thrust Ball Bearings

Angular contact ball bearings





Roller bearing

Cylindrical Roller Bearings

Taper Roller Bearings

Spherical Roller Bearings

Needle roller bearings

Thrust roller bearings





Other bearing

Pillow block bearing

Insert bearings

Joint bearings

Linear bearings











japanese nylon Ball Bearing 6311







japanese nylon Ball Bearing 6311japanese nylon Ball Bearing 6311japanese nylon Ball Bearing 6311japanese nylon Ball Bearing 6311japanese nylon Ball Bearing 6311japanese nylon Ball Bearing 6311



why us







1) Reply you inquiry in 24 working hours.















2) Experienced staffs answer all your questions in fluent English















3) Customized design is available. OEM&ODM are welcomed.















4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.















5) Special discount and protection of sales area provided to our distributor and big regular customers.
