Specifications
1 high quality of the beer equipment2 competitive price
3 highly automatic
4 materlai: sus 304 or red copper
You can reference and check following configured list:
The design of our Workshop production processes are based on the technology and process provide by the Czech and German companies .And their engineers gave professional guidance to help us complete the manufacturing process .
Best beer equipment made in China!

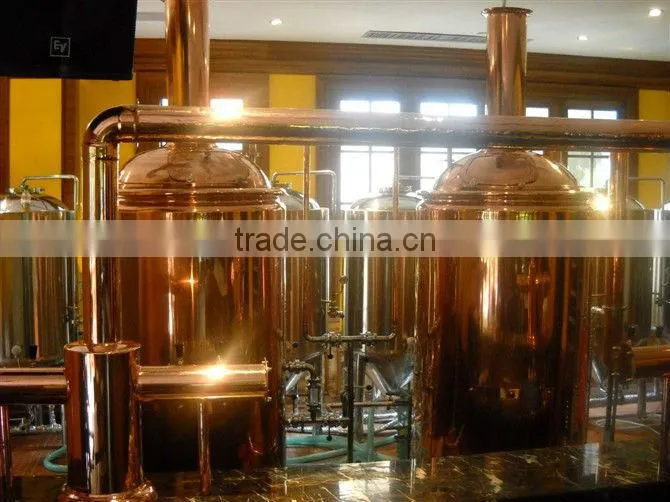

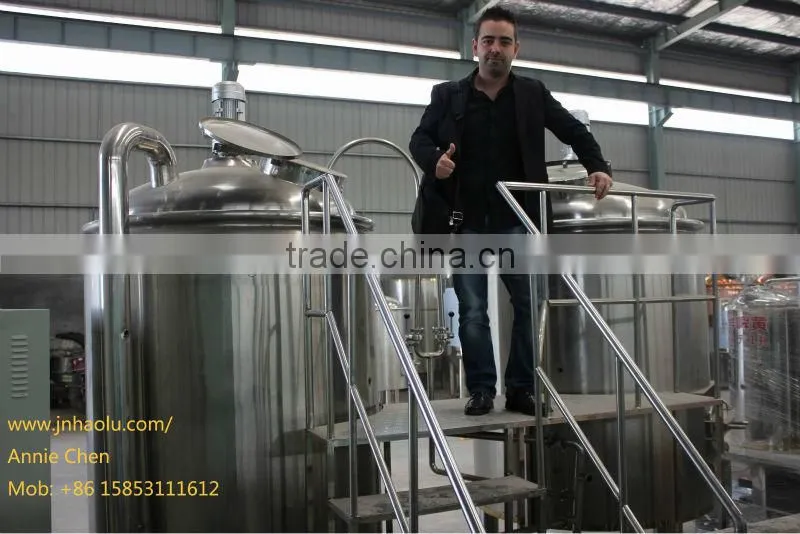

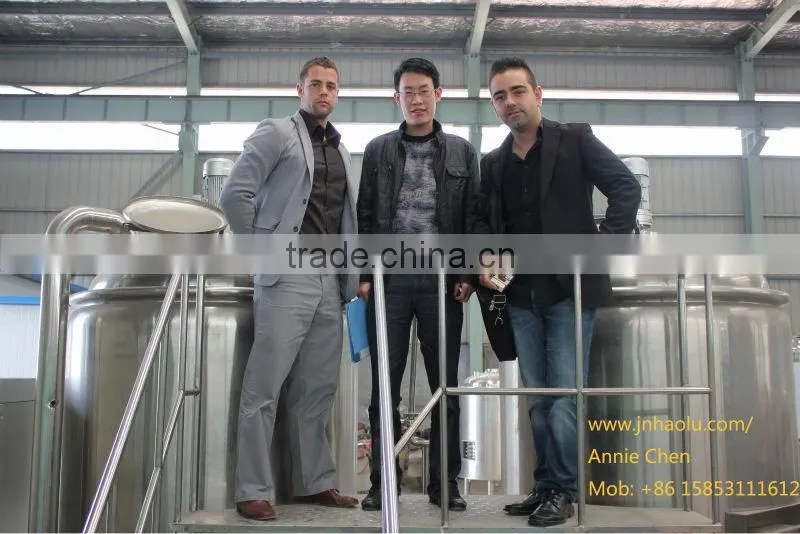

This delicate equipment system contains mainly 9 parts---
---- Malt mill (TY300, 1set) 300- 500Kg / h, motor power 3.75KW, roller style.
---- Mash boiling tank (500L, 1set) mirror-polished copper.
---- Mash lauter/ whirlpool tank (500L, 1set) With inner thickness: 100mm 304 stainless steel;Outside: mirror-polished copper.

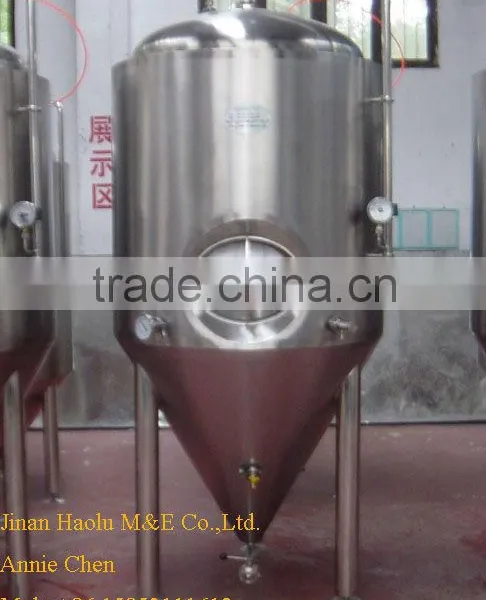

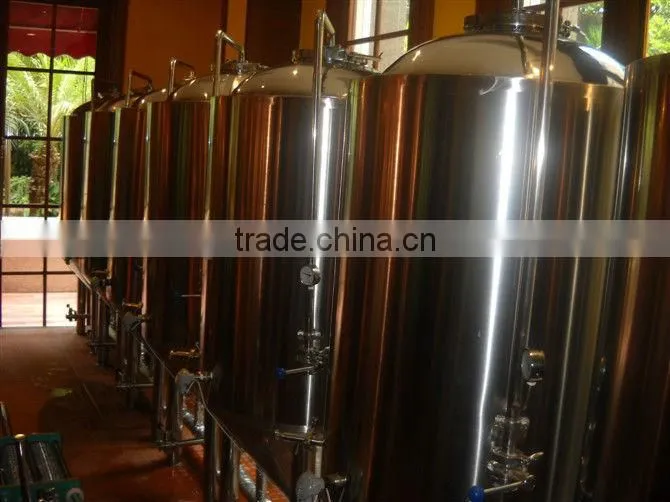

---- Fermentation tank (1000L, 4sets) 1240L; effective volume: 1000L; both inside and outside, stainless steel 304. Insulation material, PU. Temperature measurement method: Bi-metal thermometer temperature.
---- Ice water tank (1200L,1set) insulation materials: polyurethane; liner: stainless steel, outer frosted or mirror stainless steel panel; with sewage outfall.
----Wort pump (BAW120, 1set) Motor Power: 0.75KW, flow: 3 tons / h lift: 15 meters, impeller diameter: 110mm, mash lauter tank, boiling tank, whirlpool sharing
-- Plate heat exchanger (BR0.05-3,1set) 304 stainless steel, the two phase cooling
----Refrigeration group (Q3.0SA,2sets) 3.75KW, 380V, Freon 22, cooling capacity 5P full-closed
---- Ice water pump (SGR40-6-20,1set) Voltage 220V, 0.75KW, flow; 3T / H, lift 20 meters, the standard nozzle Path.
---- CIP pump (3T/h, 1set) Motor Power: 0.75KW, flow: 3 tons / h lift: 15 meters, impeller diameter: 110mm
----Wort aerating device (1 entry) All argon arc welding, made in 304 stainless steel.
---- Wort sugar measuring device (1 pc) Materials and Processing Technology: All argon arc welding, made in 304 stainless steel.
----Tower (Single span,2sets) Finish machining in stainless steel
---- Power cabinet (1set) Voltage: 380v. Control: heating, rakes, stirring, wort pump, refrigerator, plumbing pumps, temperature and pressure-controlled fermentor system.
---- Yeast additional tank (10L, 1set) Total capacity 25 liters, Materials: 304 stainless steel with flanges, venturi tubes oxygenating.

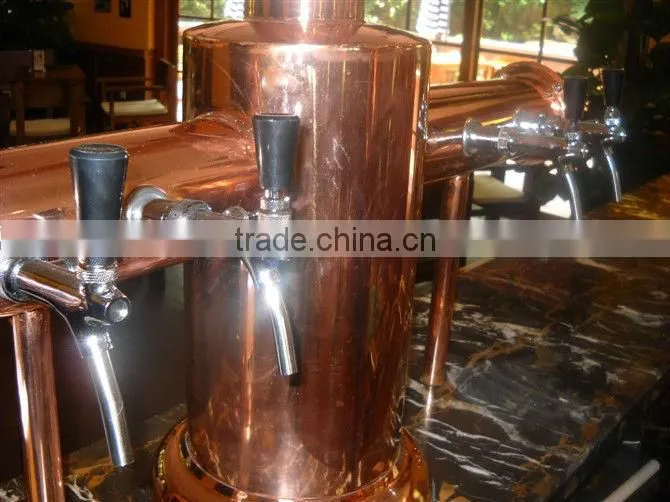

----Fittings and accessories Taps(00160,2pcs ); Brix Refractometer(0-1020-40 ,2pcs each) ; Supply Line for Beverage & Brewery(,two types,15 meters each) ; Valves ;pipe fittings and joints ; special-purpose tool (a pair of endoscopic wrench); spent grains harrow ; measuring tubes ,etc.
beer brewing system, beer brewery plant, boiling kettle, fermentation tank
beer brewing system, beer brewery plant, boiling kettle, fermentation tank
