High Frequency Fabric Joining Machine

High Frequency Fabric Joining Machine photo-1
High Frequency Fabric Joining Machine photo-2
High Frequency Fabric Joining Machine photo-3
High Frequency Fabric Joining Machine photo-4
High Frequency Fabric Joining Machine photo-5
High Frequency Fabric Joining Machine photo-6
US$ 1,500 - 8,800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hipower
Model Number:
HR-5000E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Hipower
Model Number HR-5000E
Voltage 220V/380V 50/60HZ
Power 5000W
Frequency 27.12MHZ
Welding Area customize
Dimensions 1300*900*1890mm
Weight 280KG-500KG
Usage High Frequency Plastic Welding, PVC; Plastic Blister Packaging
After-sales Service Provided Engineers available to service machinery overseas

Product Description



     high frequency fabric joining machine



Mainly application:



Multipurpose Rotary Work table Shuttle High Frequency Welder

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging

high frequency fabric joining machine
It is especially designed for HF welding is a perfect machine for production of blister packages, But it is multipurpose machine, for it can be used for industry like PU leather cover for pad, automotive parts and car interior elements, safety vests, reflective signs, inflatable toys, cosmetics,folding packing box,.etc.
The HF blister packaging welder, by Shenzhen Hipower Ltd, is made for various industrial HF welding and sealing applications. It is designed for applications requiring precision large flat surface for product positioning and complex shape welds.
The HF blister packaging welder series have HF power outputs from 5KW to 25KW.
Machine is with special quick change electrode holder. Custom designed tooling and welding upper platen are available on request.



Machine General Features:

Multipurpose Rotary Work table Shuttle High Frequency Welder
1. Anti-flash system, to protect the tooling / mould
2. Welded H-frame steel structure with integrated HF generator
3. Custom requested size of work tables and welding platen acceptable
4. Adjustable parameter set in two working stations separately
5. Two side manually or motor driven rotary work table
6. Heated Upper platen with thermostat, for helping HF sealing process
7. Close off HF welding function, the machine can be use as Standard Heat Welder
8. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
9. European-model square high frequency vibration box, more reliable and stable in output
10. CE rated machine; factory verified by SGS and BV;
11. Customer's site installation, training & maintenance available
12. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
13. High frequency welding press pneumatically operated



Optional Features on Request:



1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional



Technical Specification:





Model HR-5000E HR-8000E
Output Power 5000W 8000W
Anti-Spark System U.S.A. 5557 High sensitive anti-spark system
Voltage 3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency 27.12MHz +/- 0,6 %
Input power 8KVA 15KVA
Rectifier SILICON DIODE
Oscillation tube 7T85RB  7T69RB
Max pressure 350KGS 500kg
Operation mode Pneumatic Operated
Max gap of electrodes 200mm
Size of active horn 150mm
Working Stations: Standard 3 or 4 or 6 Rotary work stations
Upper Electrode (W*H*L) 200*350mm 300*500mm
Size of Work Table (L*W) 300*500mm 400*600mm
Welding time 0.01~9.99s adjustable
Net weight 400KGS 800kgs
Foreseen productivity:  According to welding times and operator skills

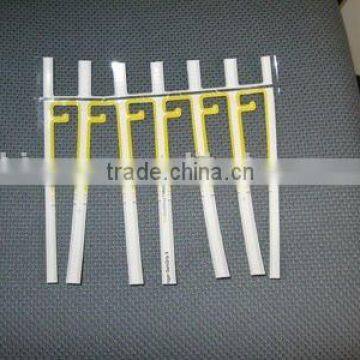

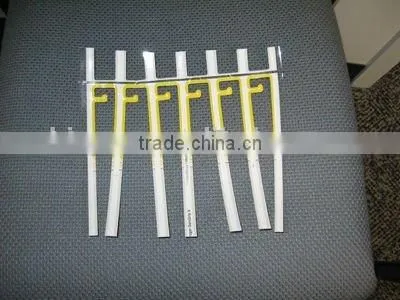

Welded Samples:



high frequency fabric joining machine




Company Information

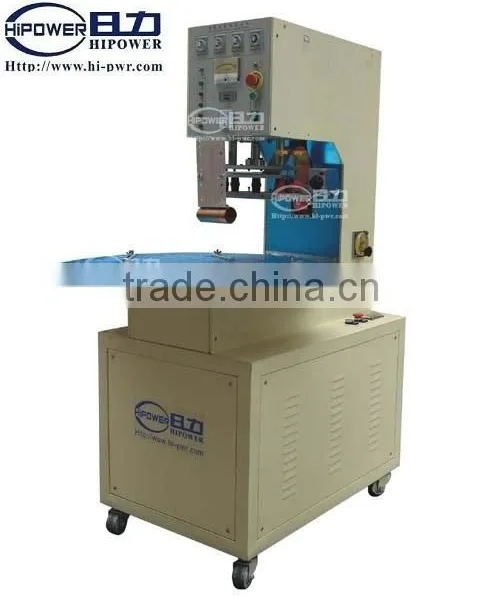

Machine Unit Views:



high frequency fabric joining machine


Our Services
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Packaging & Shipping



high frequency fabric joining machine

CE certificates:



high frequency fabric joining machine
