High frequency double membrane gas holder welding machine
- 100 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- Huitai hot selling OEM auto hot plate sheet board plastic pallet welding machine
- Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet
- automatic PP board edge sealing machine, coroplast sheet layer pads welding machine
- Huitai plastic capillary tube welding machine plastic welders pvc plastic hot plate welding machine bonding
- PP Membrane Hot Filter Plate Chamber Filter Press Plate and Frame Filter Plate welding machine
- Plastic PP Membrane Hot Chamber Filter Press vertical Frame Filter Plate welding machine plate-and-frame belt
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Hipower | Model Number: | HR-15KW |
Voltage: | 220,380 | Power: | 15W | Frequency: | 27.12MHz |
Welding Area: | 160/200cm2 | Dimensions: | 3.5CBM | Weight: | 600kg |
Usage: | HF Liquid Tank Welding Machine for Gas bag, Methane bag, oil bag | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High frequency double membrane gas holder welding machine
Application: for making Gas HOLDER, Methane bag, oil bag
Other applications:
1. Large area PVC membrane structure 2. Hyperbaric oxygen chamber
3. Soft methane tank 4. Hydration hoists bag
Machine General Features:
1. Servo-motor; Touch screen programmable HMI / PLC
2. European-model square high frequency vibration box, more reliable and stable in output
3. Single line or two lines continue welding, welding length can be ordered as special need.
4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.
5. CE rated machine; factory verified by SGS and BV;
6. Customer's site installation, training & maintenance available
7. C-Frame / G frame welded steel structure with integrated HF generator
8. Customized work table dimensions, electrode holder dimensions, tooling
Optional Features on Request:
Auto-high frequency tuning technology ; Welding electrode temperature thermostat
Technical Specification:
Product details | Specification | Product details | Specification | |||||||
MODEL: | HR-15KW-F1 | MAXPRESSURE: | 1000kg | |||||||
POWER: | 15KW | MAX GAP OF ELECTRODES: | 250MM (on request) | |||||||
POWER SUPPLY: | 220V/380V 50/60HZ | SIZE OF ACTIVE HORN: | 150MM (on request) | |||||||
FREQUENCY: | 27.12MHZ | SIZE OF UP ELECTRODE: | 200*300mm (on request) | |||||||
ELETRONIC POWER: | 20KVA | SIZE OF WORKING PLATE: | 200*350MM (on request) | |||||||
RECTIFIER: | SILICON DIODE | SCALE OF TEMPERATURE: | / | |||||||
VIBRATIONAL TUBE: | 8T85RB | WELD TIME: | 0~10S Adjustable |

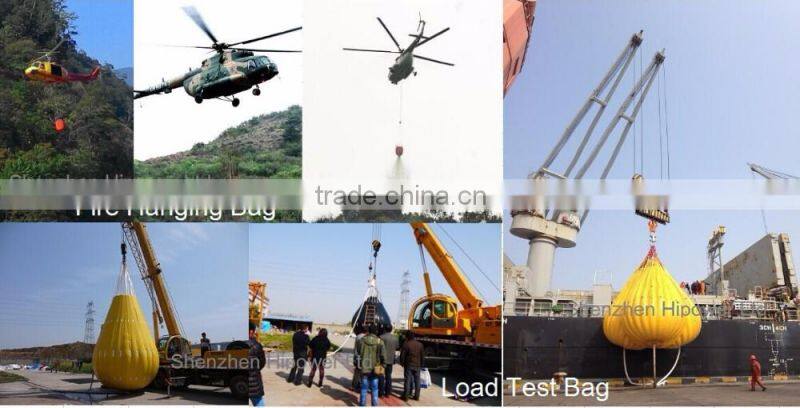

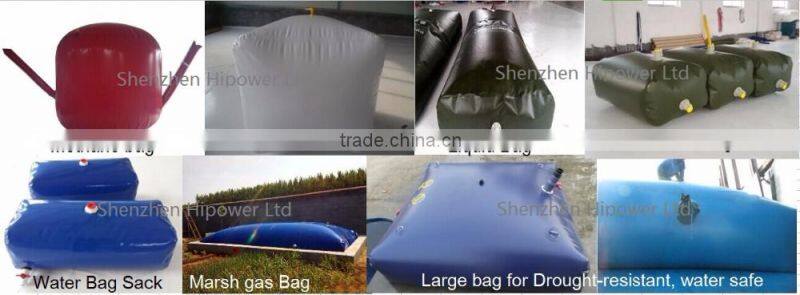

Welded Samples:

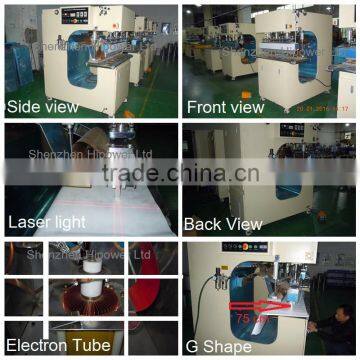

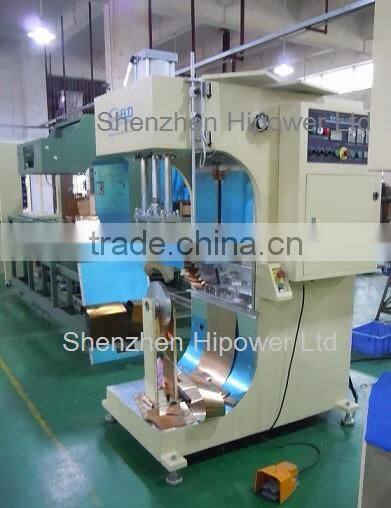

Machine Views:

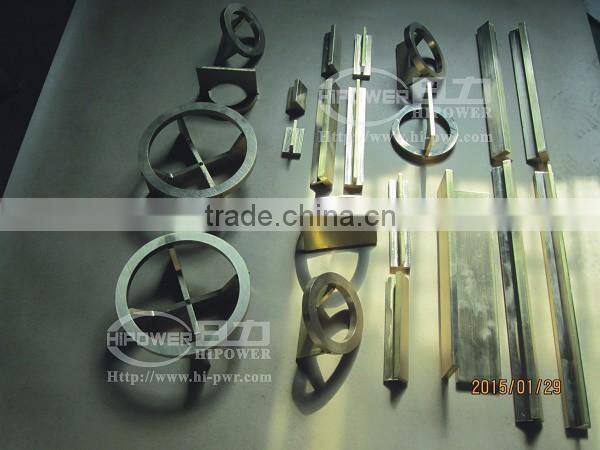

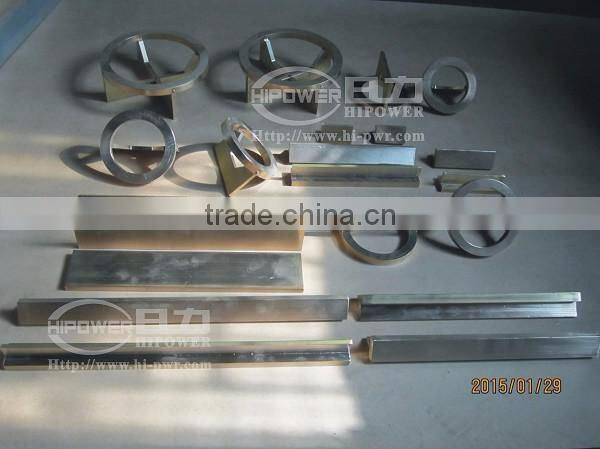

Moulds:

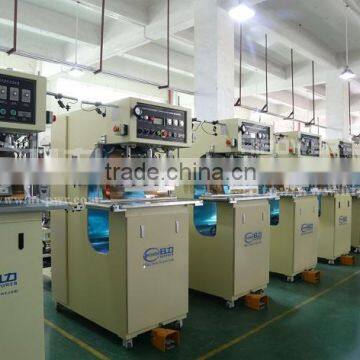

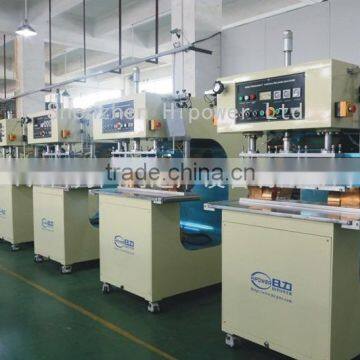

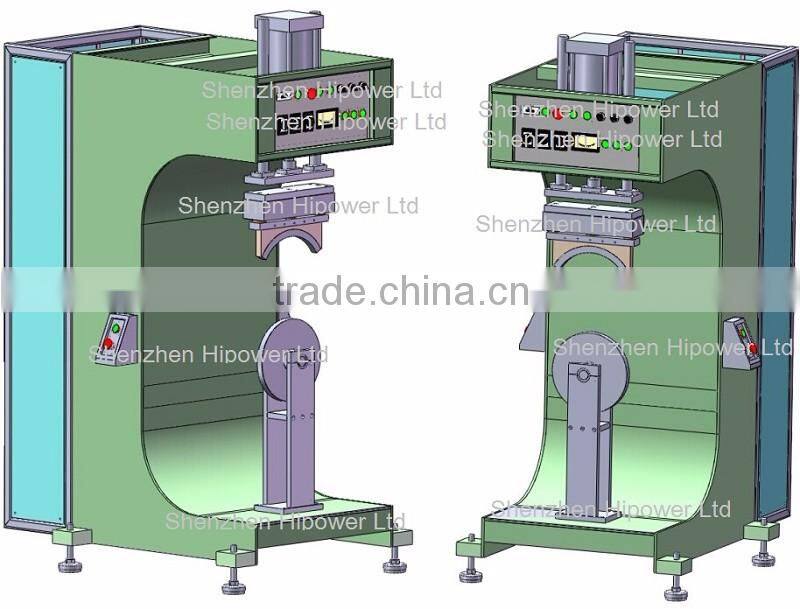

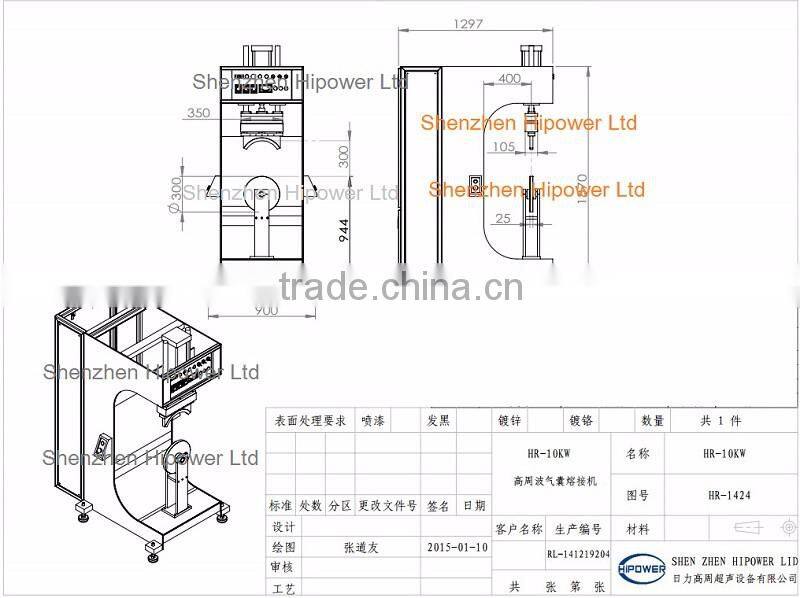

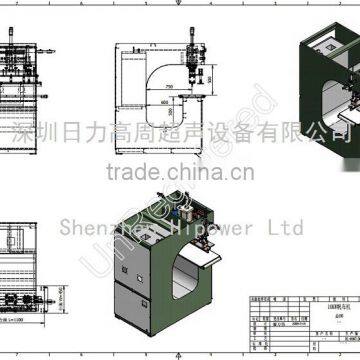

Machine Unit Views:
Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....
All machines are completely safe for the operator and fully comply with CE regulations.
We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment
and durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
1. Customer's site installation, training & maintenance available
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Questions 01.
How Do You Pack the machines
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)
Questions 02.
Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 03.
How Does Customer Use the machines
RE: We will provide you operation manual and diagram of machine in English.
For automatic machine and custom machine, we will provide operation videos to you.
Questions 04.
Does the machine need compressed air ?
RE: Generally speaking, if your factory with compressed air source, then connect to machine.
If not, please buy a 2Psi -5 Psi air compressor.
If customer request to use Hydraulic pressure, please inform us when put an order.
Questions 05.
Does the machine power voltage meet buyers' factory power source?
RE: We can make machine with voltage like:
frequency: 50 - 60HZ Phases: single phase / 3 phases
Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Please kindly inform us what frequency/phases/voltage you want, when you put order to us.
Questions 06.
Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
Questions 07.
Can I visit you factory to check machines on-site ?
RE: We are manufacturer, and we welcome customers to visit our factory.
We located in Shenzhen, China; you may come to us by following:
a) Via. Hongkong to Shenzhen :
please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point like Shekou, Lohu
b) Via. Guangzhou to Shezhen;
you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.
we will arrange to pick you up from station.
c) Via. Shenzhen Airport :
Please inform us your flight number and contact information before you come, we will meet you at airport.
Questions 08.
What Should I bring when I visit your factory?
RE: For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
For common product, it is enough to show us product pictures or drawings.
