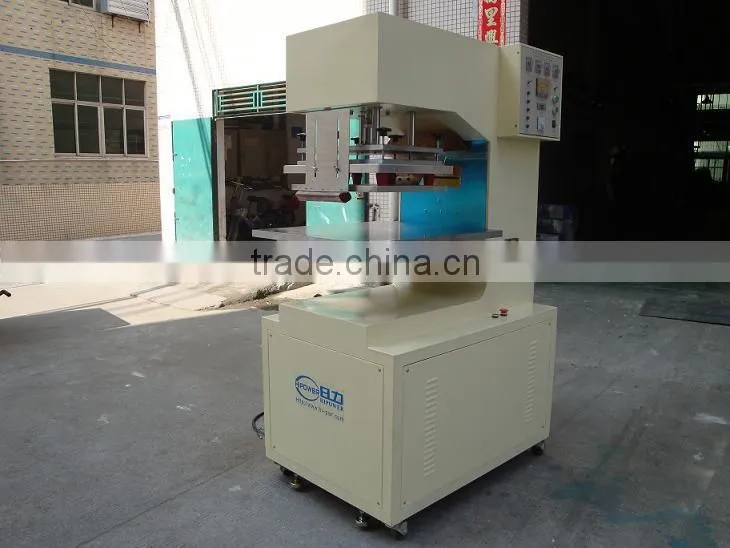

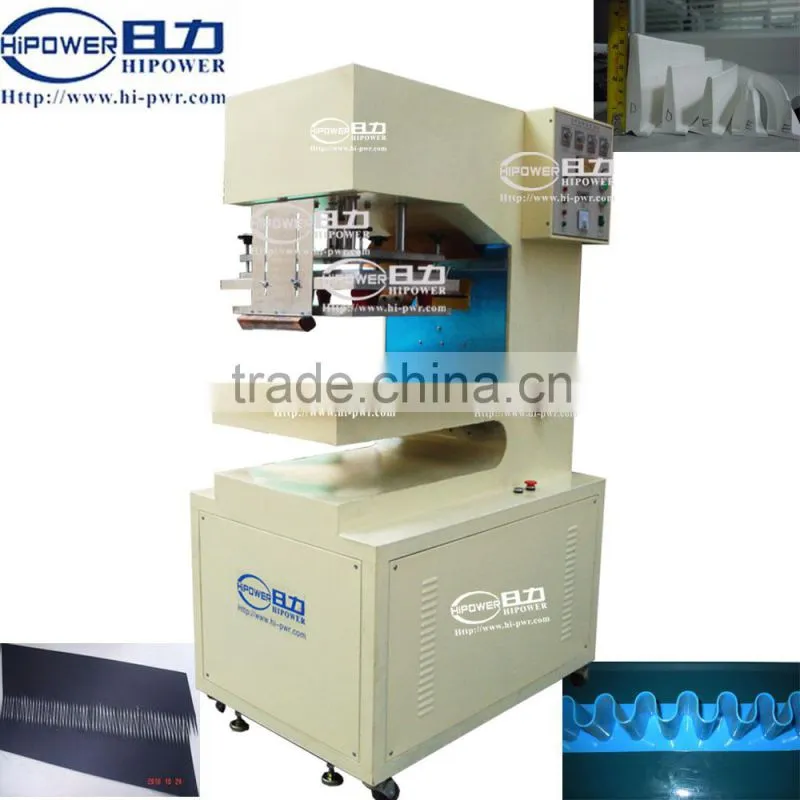

High frequency treadmill belt,conveyor belt,sidewall welding machine

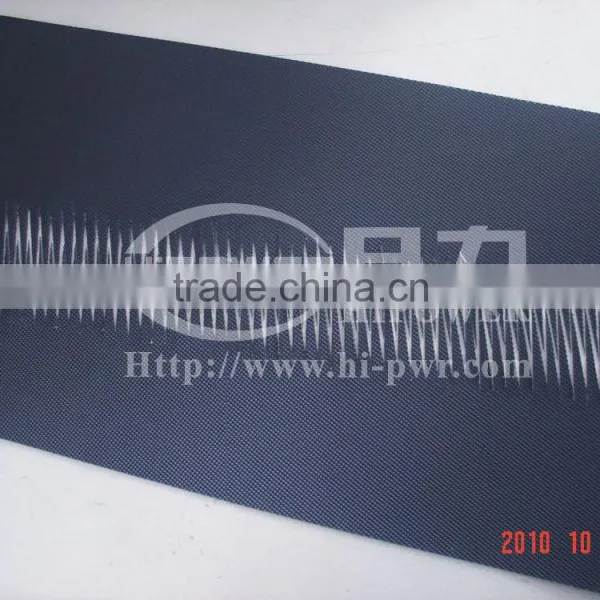

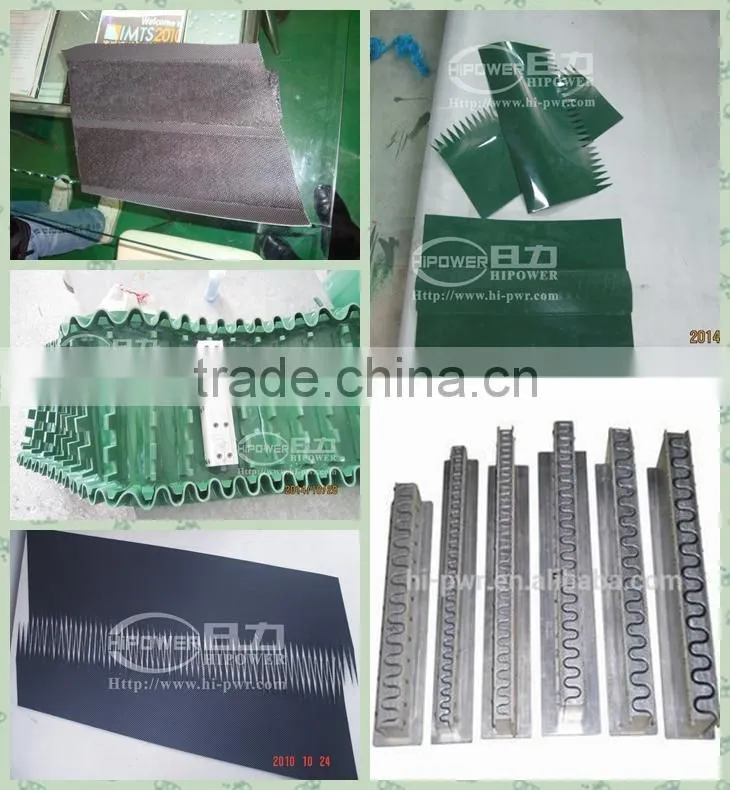

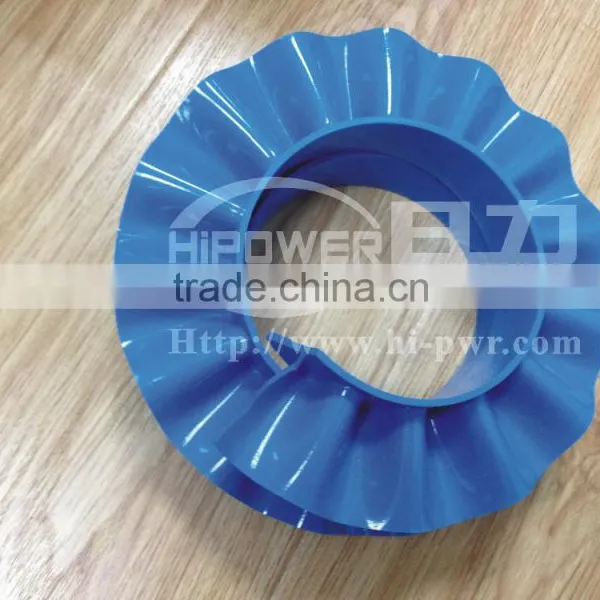

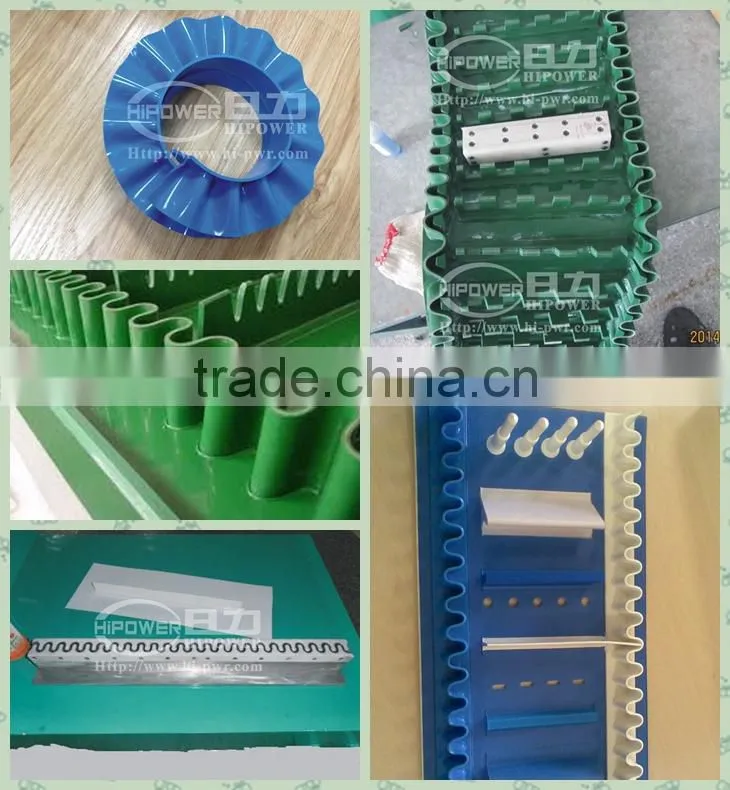

1.High frequency connection machine for treadmill belt,conveyor belt,sidewall,profile...
2.Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products
3.Applied to processing of the large products, such as PVC water bed, drifting raft, children swimming pool, etc.
1. Firmly welding, be well meet with thick or thin dimension of welding material
2. Single line or two lines continue welding, welding length can be ordered as special need.
3. Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mould.
4. European-model squareness high frequency vibration bos, more realiable and stable in output
5. International industrial wave bands 27.12MHz, which is in line with international standard.
6. Welding time can be adjusted according to welding materials

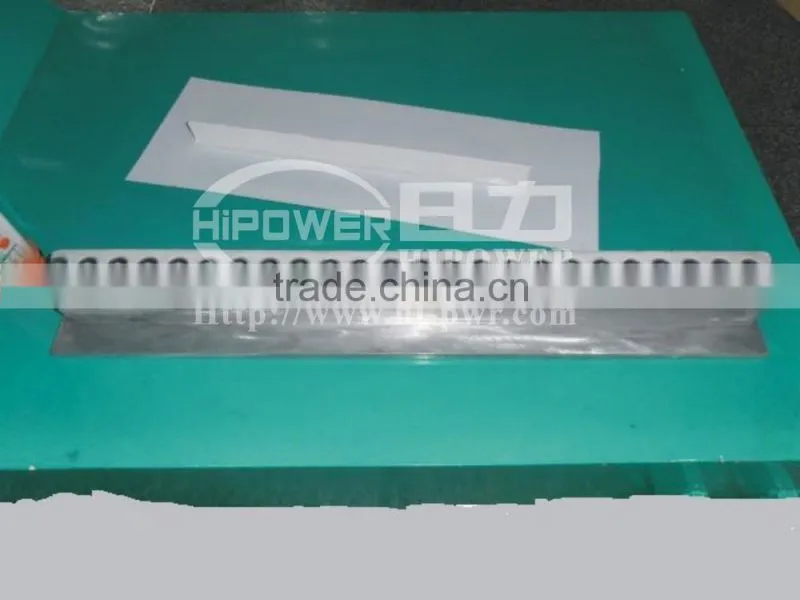

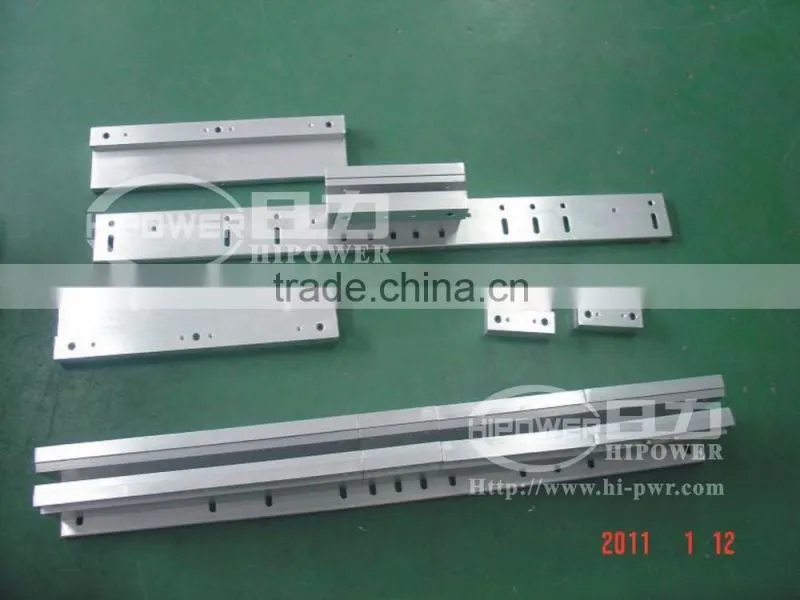

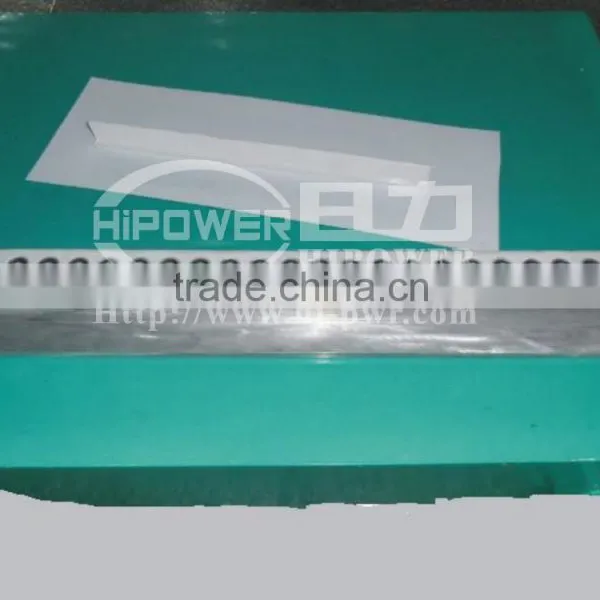

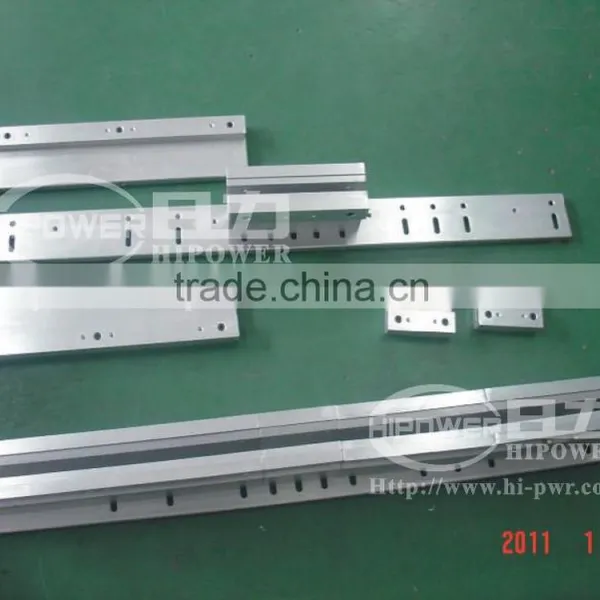

7. Length, width and radian of welding area can be adjusted by welding die.
8. Machine groove deep and wide, the longest welding extended to 1000mm or longer for one time
9. Can be used as a freestanding machine for welding production or as a supplement to a larger system.
10.High frequency tarpaulin welding machine can be manufacturered and choose according to user needs.
Model |
HR-10KW |
|
|
Power |
10000w |
||
Voltage |
220V/380V 50/60HZ |
||
Frequency |
27.12MHZ |
|
|
Input power |
18KVA |
||
Rectifier |
SILICON DIODE |
||
Oscillation tube |
E3069RB |
||
Max pressure |
800kg |
||
Gap between electrodes |
150MM |
||
The moving distance of active horn |
150MM |
||
Size of upper electrode |
150*600 |
||
Size of lowwer electrode |
250*750 |
||
Welding time |
0~10S Adjustable |
||
Net weight |
1000KG |
||
Overall dimension |
1500*2000*1500 |
||
the manufacturer has right to modify the design and parameter without prior notice | |||
We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment and
durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Who We Are:
Since 2000, Shenzhen Hipower Ltd, concentrates on highest quality, on-time delivery, professional technology
support, customer-oriented service and competitive price.
Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....
What we do and Why Us:
Hipower is at the forefront of newest technical developments in the field of high frequency and ultrasonic
welding technology,automation of production processes and other innovative industrial solutions.
Our equipments are widely used in industrial application like: Automotive Parts, Stationery, conveyor belts
Tarpaulin, Big Covers,Tents products, Tensile structure, Medical Bags, Blister Packaging, Cylindrical Box,
and other plastic welding industries.
All machines are completely safe for the operator and fully comply with CE regulations.
Questions 01. How Do You Pack the machines?
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting
standard, and no need addtional fumugation)
Questions 02. Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a
complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine
easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 03. How Does Customer Use the machines?
RE: We will provide you operation manual and diagram of machine in English.
For automatic machine and custom machine, we will provide operation videos to you.
Questions 04. Does the machine need compressed air ?
RE: Generally speaking, if your factory with compressed air source, then connect to machine.
If not, please buy a 2Psi -5 Psi air compressor.
If customer request to use Hydraulic pressure, please inform us when put an order.
Questions 05. Does the machine power voltage meet buyers' factory power source?
RE: We can make machine with voltage like:
frequency: 50 - 60HZ Phases: single phase / 3 phases
Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Please kindly inform us what frequency/phases/voltage you want, when you put order to us.
Questions 06. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
Questions 07. Can I visit you factory to check machines on-site ?
RE: We are manufacturer, and we welcome customers to visit our factory.
We located in Shenzhen, China; you may come to us by following:
a) Via. Hongkong to Shenzhen :
please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point
like Shekou, Lohu
b) Via. Guangzhou to Shezhen;
you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.
we will arrange to pick you up from station.
c) Via. Shenzhen Airport :
Please inform us your flight number and contact information before you come, we will meet you at airport.
Questions 08. What Should I bring when I visit your factory?
RE: For special product design and develop, we request you bring a piece of testing material, you can test
on our machines on-site.
For common product, it is enough to show us product pictures or drawings.
