Timber i Beam for Concrete Wood h Beam

Name: Timber i Beam for Concrete Wood h Beam
Brand: h beam
SKU: 112825489
Availability: InStock

US$ 7 - 8 MOQ: 500 Meters

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

h beam

Model Number:

h beam

Ningbo Luowen Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

h beam Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name h beam

Model Number h beam

h beam

Product Description

Characteristics:

1,Light Weight: the density of H20 Timber Beam is only 4.8-5.0 kg per meter, it is easy to deliver,dismantle and install.

2,High Tenacity: The H20 Timber Beam is not easy to break off because of fiber.

3,Good Proofing: The H20 Timber Beam is good at waterproofing, acidproofing, alkali proofing, moth proofing.

4,Environment Friendly: The Timber Beam belongs to renewable resources, could be used many time.and without poison, no damage to health.

5,Good Straightness: The H20 Timber Beam in not easy to deform.

Specifications
Item	LW-TB301
Wing Material	Imported spruce solid wood, finger-jointed and glueing according to DIN 68140-1
Web Material	3 layer poplar plywood
Head Protection	Without head protection
Glueing	(PRF) Finger-jointed between wings and web pursuant to approval notice Z-9.1-146
Moisture Content	less than 12% at the time of delivery
Surface Protection	The complete beam is waterproofed using a water-repellent color glaze
Color	Yellow or as customer's request
Wing Size	80x40mm
Web Size	30mm thickness
Weight	about 5kg/m
Standard lengths	2.45 / 2.90 / 3.30 / 3.90 / 4.90 / 5.90 m (Max.length:6.00m)
Mechanical Specification	Modulus of elasticity : E 11,000 N/mm2
Mechanical Specification	Shear modulus : G 600 N/mm2
Packing	Pallet or in bulk

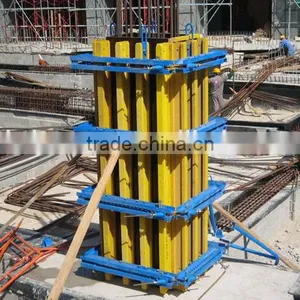

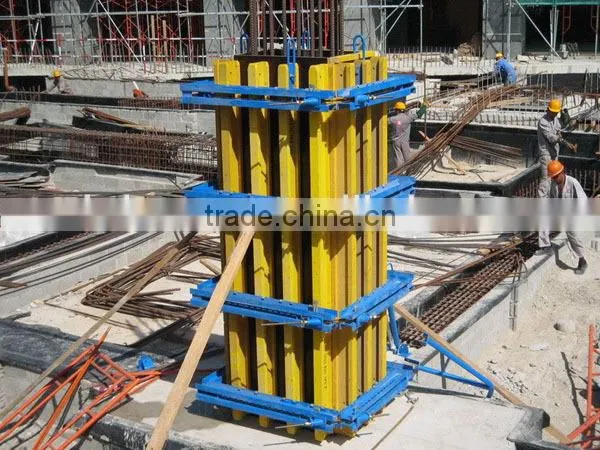

Application	Level formwork system, Vertical formwork system, Adjustable formwork system, Curve formwork system, Irregular formwork, etc
